Manli Nebula GeForce RTX 5060 OC 8GB GDDR7 Graphics Card
Smooth, Efficient, and Modern 1080p–1440p Gaming with Next‑Gen Performance
Technical Specifications:
| Model | Manli Nebula GeForce RTX 5060 OC 8GB GDDR7 |
| GPU | NVIDIA GeForce RTX 5060 (Blackwell) |
| Product Code (BD) | 43627 |
| MPN | M‑N506NO/D78G‑M3670 |
| CUDA Cores | 3840 |
| Video Memory | 8GB GDDR7 @ 28 Gbps |
| Memory Interface | 128-bit |
| Base / Boost Clock | 2280 / 2550 MHz |
| Memory Bandwidth | Up to 448 GB/s |
| Interface | PCIe Gen 5 |

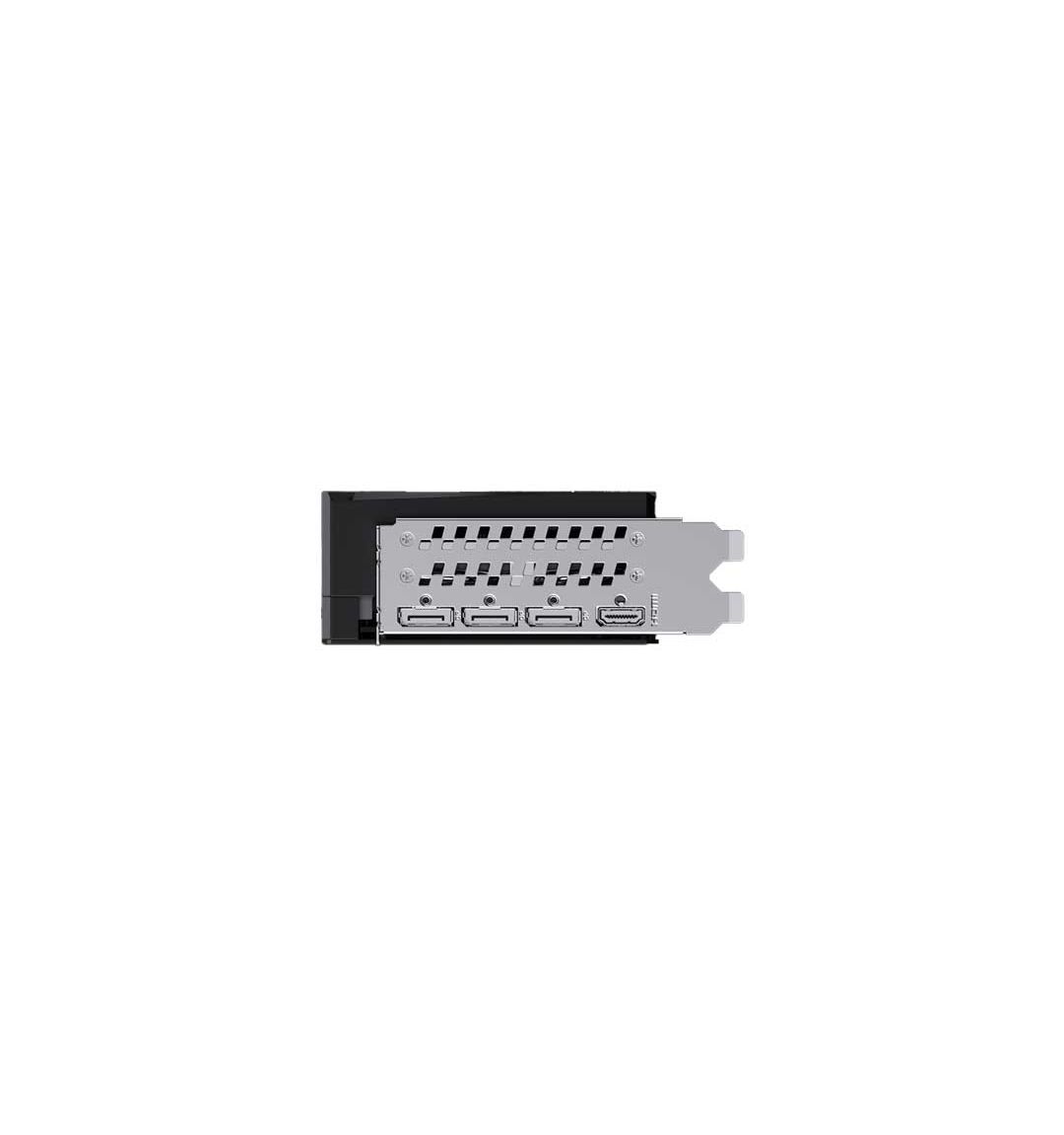

| Ports | 3 × DisplayPort, 1 × HDMI |
| Cooling | Triple-fan heatsink, die‑cast shroud & vented backplate |
| Power Connector | 1 × 8-pin |
| Recommended PSU | 550W or greater |
| Dimensions | Approx. 240 × 126 × 50 mm (2.5‑slot) |
| Power Draw | 155 W |
| Warranty | 3 Years Limited Warranty |
| Manufacturer | Manli |
Product Overview
The **Manli Nebula RTX 5060 OC 8GB GDDR7** combines next-gen Nvidia Blackwell architecture with a boosted core clock and triple-fan cooling for enhanced thermal performance. Delivering support for DLSS 4 and advanced ray tracing, this GPU excels at delivering smooth gaming at 1080p and competitive 1440p performance. Its premium build—complete with a metal shroud and vented backplate—ensures long-term reliability under intensive workloads.
Frequently Asked Questions (FAQ)
Q1: Is the OC version significantly faster?
A1: Yes, it has a higher boost clock (~2550 MHz) and triple‑fan cooling compared to the standard Nebula model, offering improved performance and better thermal headroom.
Q2: What display resolutions does it support?
A2: Equipped with DisplayPort 1.4a and HDMI 2.1, it supports up to 8K UHD (7680 × 4320).
Q3: How quiet is the cooling system?
A3: The triple-fan heatsink includes idle fan-stop mode for quiet operation during light usage. Cooling remains effective under heavy loads.
Q4: Is it suitable for compact PC builds?
A4: It’s a 2.5-slot card (~240 mm long) and draws ~155 W—compatible with many mid‑tower and SFF systems that support this size and power.
Brand Information:
Manli is a global AIB under the PC Partner group, offering competitively priced NVIDIA-based GPUs with solid design and features. :contentReference[oaicite:5]{index=5}
