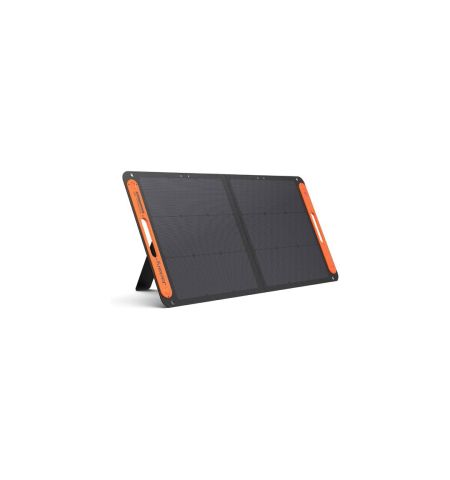

Jackery SolarSaga 100W Portable Solar Panel
Please sign in so that we can notify you about a reply
Technical Specifications
| Attribute | Detailed Specification |
| Product Full Name | Jackery SolarSaga 100W Portable Foldable Monocrystalline Solar Panel |
| Product Model / SKU | SolarSaga 100W (JS-100 / JS-100F) |
| Brand / Manufacturer | Jackery Inc. |
| Product Category | Portable Foldable Solar Panel / Photovoltaic Solar Charger |
| Cell Type & Chemistry | High-Efficiency Monocrystalline Silicon Solar Cells |
| Solar Conversion Efficiency | Up to 23% – 24.3% (Enhanced Light-Trapping Architecture) |
| Lamination & Exterior Material | Industrial-Grade ETFE Laminated Film Surface with Durable Oxford Fabric Casing |
| Peak Power Rating (Pmax) | 100 W (±5W under Standard Test Conditions - STC) |
| Optimum Operating Voltage (Vmp) | 18.0 V – 20.0 V |
| Optimum Operating Current (Imp) | 5.0 A – 5.55 A |
| Open Circuit Voltage (Voc) | 21.6 V – 24.8 V |
| Short Circuit Current (Isc) | 5.4 A – 6.0 A |
| Main DC Charging Cable | Integrated 3-Meter (9.8 ft) Heavy-Duty Cable with DC8020 / DC7909 Output Connectors |
| Direct USB Outputs | Built-in Junction Box Ports: • 1 × USB-A Output: 5V ⎓ 2.4A (12W Max) • 1 × USB-C Output: 5V ⎓ 3.0A (15W Max) (Allows direct phone/tablet charging without a power station) |
| Weather & Water Resistance | IP65 / IP68 Rated Water & Dust Resistant Solar Panel Surface (Junction box splash-resistant) |
| Deployment Mechanism | Foldable Bi-Fold Design with 2 × Built-in Adjustable Angle Kickstands & Magnetic Closures |
| Carrying Ergonomics | Integrated Heavy-Duty TPE / Rubberized Top Carrying Handle |
| Operating Temperature Range | -10°C to 65°C (14°F to 149°F) |
| Ecosystem Compatibility | Fully compatible with Jackery Explorer 240, 300, 500, 1000, 1000 v2, 2000 v2 series and third-party DC8mm/DC8020 power stations |
| Dimensions (Folded) | Approx. 610 mm × 535 mm × 35 mm (24.0" × 21.0" × 1.4") |
| Dimensions (Unfolded) | Approx. 1220 mm × 535 mm × 5 mm (48.0" × 21.0" × 0.2") |
| Product Net Weight | Approx. 4.69 kg (10.33 lbs) |
| Package Contents | 1 × Jackery SolarSaga 100W Portable Solar Panel 1 × Integrated 3m DC Charging Cable 1 × DC7909 to DC8020 Connector Adapter 1 × User Manual & Warranty Documentation |
| Warranty Policy | Up to 3 Years Official Manufacturer Warranty (2 Years Standard + 1 Year Extended via Product Registration) |
Product Description
The Jackery SolarSaga 100W is a high-efficiency foldable monocrystalline solar panel engineered to deliver dependable off-grid solar energy for outdoor adventures, RV travel, camping, and emergency home backup. Designed with advanced multi-layered monocrystalline solar cells, the panel achieves an industry-leading solar conversion efficiency of up to 24.3%, maximizing solar energy harvesting even during overcast or low-angle sunlight conditions. The outer layer is built with durable ETFE lamination, providing high light transmittance while resisting scratches, environmental dust, and water exposure for extended outdoor longevity.
Weighing just over 10 lbs with a convenient briefcase-style bi-fold design, the SolarSaga 100W features an integrated magnetic clasp, a sturdy rubberized handle, and two adjustable rear kickstands that allow users to angle the panel for optimal direct sunlight exposure. In addition to its primary 3-meter DC cable tailored for recharging Jackery Explorer power stations, the weather-resistant junction box includes direct USB-A and USB-C output ports, enabling quick charging for smartphones, tablets, cameras, and flashlights directly from the sun. Supported by rugged weather-resistant construction and an official warranty, the Jackery SolarSaga 100W delivers a clean, reliable, and portable renewable energy solution for any expedition.
