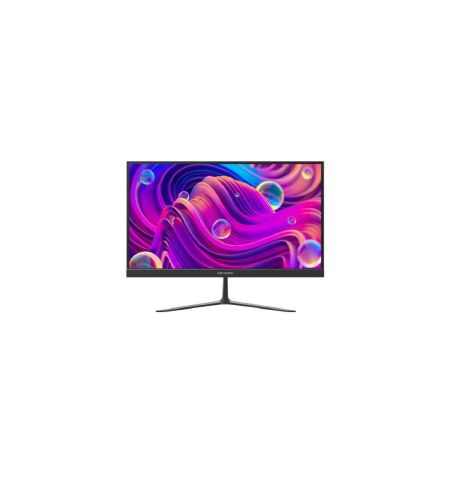

Hikvision DS-D5022F2-CBD 21.5" 100Hz Full HD IPS Monitor
Please sign in so that we can notify you about a reply
Technical Specifications
| Attribute | Detailed Specification |
| Product Name | Hikvision DS-D5022F2-CBD |
| Display Size | 21.5 inches (54.6 cm) |
| Panel Type | IPS (In-Plane Switching) |
| Backlight Technology | E-LED Backlight |
| Native Resolution | 1920 x 1080 (Full HD) |
| Aspect Ratio | 16:9 |
| Refresh Rate | 100 Hz |
| Response Time | 6 ms (GtG) |
| Brightness | 250 nits (Typical) |
| Contrast Ratio | 1000:1 (Static Contrast) |
| Color Support | 16.7 Million Colors (8-bit color depth) |
| Color Gamut | 72% NTSC |
| Viewing Angles | 178° Horizontal / 178° Vertical |
| Screen Coating | Anti-Glare, Matte |
| Audio Configuration | Built-in Speakers (2W x 2, Stereo) |
| Video Connectivity | 1 x HDMI 1.4, 1 x VGA (D-Sub) |
| Audio Connectivity | 1 x 3.5mm Audio In |
| Ergonomic Adjustments | Tilt Only: -5° to +15° |
| VESA Wall Mount | 75 x 75 mm |
| Bezel Design | 3-Sided Ultra-Slim Borderless Layout |
| Power Supply | DC 12V / 2.0A (External Adapter) |
| Power Consumption | ≤ 24W (Max), ≤ 0.5W (Standby) |
| Weight | 2.1 kg (Without Stand) / 2.6 kg (With Stand) |
| Chassis Color | Black |
Product Description
The Hikvision DS-D5022F2-CBD is a compact and efficient 21.5-inch Full HD monitor designed to upgrade daily office productivity, study spaces, and surveillance monitoring setups. Built with a modern 3-sided ultra-slim bezel chassis, it maximizes your viewing area while keeping a minimal physical footprint on cramped desktops. The vibrant IPS panel ensures wide 178-degree viewing angles and consistent color accuracy, making it highly reliable for analyzing spreadsheets, reading documents, or monitoring live video feeds.
Moving past traditional 60Hz office displays, this monitor deploys a fluid 100Hz refresh rate to noticeably reduce motion blur and mouse cursor trailing during fast page navigation. For simplified deployment, the unit includes flexible HDMI and VGA inputs alongside built-in 2W dual stereo speakers to eliminate desktop cable clutter. To handle comfort across long work shifts, it relies on integrated flicker-free technology and hardware blue light filtering to effectively minimize visual strain.
