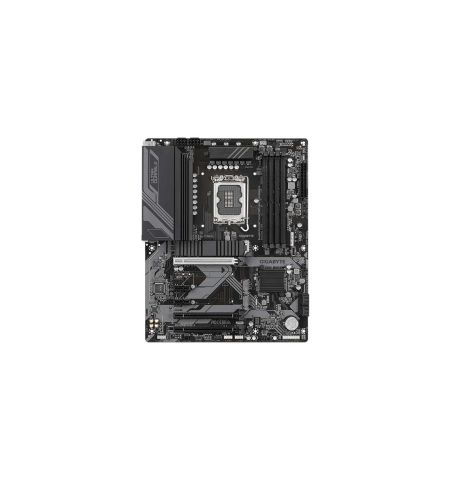

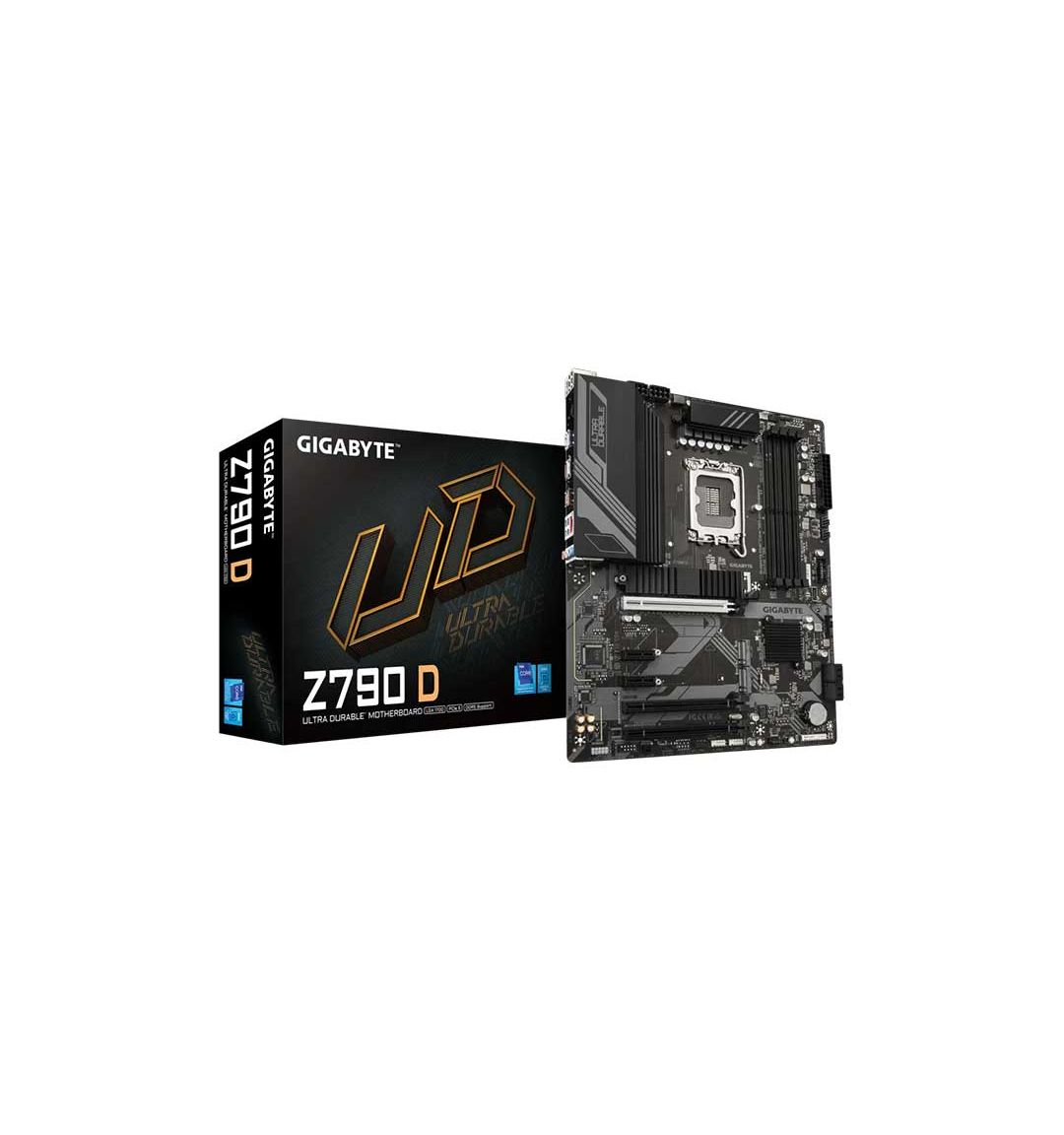

Gigabyte Z790 D DDR5 ATX Motherboard
Please sign in so that we can notify you about a reply
GIGABYTE Z790 D DDR5 ATX MOTHERBOARD SPECIFICATION
| MAIN FEATURES | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Chipset | Intel Z790 Express Chipset |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Supported CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium Gold and Celeron Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU |
| GENEREL INFORMATION | |
| Audio Feature | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| Back Panel Connectors | 1 x PS/2 keyboard/mouse port 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Expansion Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3) |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control |
| I/O Controller | iTE I/O Controller Chip |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Memory | 14th and 13th Generation Intel® Core i9/i7 Pocessors: - Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules 13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors: - Support for DDR5 4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Storage Interface | CPU: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Unique Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| USB | Chipset: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports, available through the internal USB headers |
| WARRANTY INFORMATION | |
| Warranty | 3 years |
Gigabyte Z790 D DDR5 ATX Motherboard: The Ultimate Powerhouse for Gamers and Enthusiasts
Introduction
Are you a passionate gamer or a tech enthusiast looking to build a high-performance PC? Look no further! The Gigabyte Z790 D DDR5 ATX Motherboard is here to fulfill all your gaming and computing needs. This cutting-edge motherboard is designed to provide exceptional performance, reliability, and compatibility, making it the perfect choice for both casual gamers and professional enthusiasts.
Unleash the Power of DDR5
The Gigabyte Z790 D DDR5 ATX Motherboard is equipped with the latest DDR5 memory technology, which offers significant improvements over its predecessor, DDR4. With DDR5, you can experience faster data transfer rates, increased bandwidth, and improved power efficiency. This means smoother multitasking, faster load times, and an overall enhanced gaming experience.
Superior Performance for Gaming and Beyond
Featuring an advanced Intel Z790 chipset, the Gigabyte Z790 D DDR5 ATX Motherboard delivers exceptional performance that can handle the most demanding games and applications. With support for the latest Intel processors, including the powerful 12th generation Alder Lake CPUs, this motherboard ensures seamless performance and maximum frame rates, allowing you to dominate the gaming battlefield.
Enhanced Connectivity and Expansion Options
The Gigabyte Z790 D DDR5 ATX Motherboard offers a wide range of connectivity options to cater to all your needs. It features multiple USB ports, including USB 3.2 Gen2 and USB Type-C, for lightning-fast data transfer and easy connection to external devices. Additionally, it provides PCIe 5.0 slots for high-speed graphics cards and M.2 slots for ultra-fast storage solutions, ensuring you have all the necessary tools to build your dream gaming rig.
Advanced Cooling and Overclocking Capabilities
Keeping your system cool is crucial for optimal performance, especially during intense gaming sessions. The Gigabyte Z790 D DDR5 ATX Motherboard comes equipped with advanced cooling features, including robust heatsinks and multiple fan headers, allowing you to maintain low temperatures and prevent thermal throttling. Moreover, with its overclocking capabilities, you can push your CPU and memory to their limits, extracting every ounce of performance from your hardware.
Buy from Nexus for a Hassle-Free Experience
To ensure a hassle-free purchasing experience, we recommend buying the Gigabyte Z790 D DDR5 ATX Motherboard from Nexus, a trusted and reliable online retailer. Nexus offers competitive prices, fast shipping, and excellent customer service, making them the go-to destination for all your PC component needs.
Who is the Gigabyte Z790 D DDR5 ATX Motherboard For?
The Gigabyte Z790 D DDR5 ATX Motherboard is perfect for gamers and enthusiasts who demand the best performance from their PCs. Whether you're a competitive gamer seeking high frame rates, a content creator requiring powerful multitasking capabilities, or an overclocking enthusiast pushing the limits of your hardware, this motherboard is tailored to meet your needs.
Why Choose the Gigabyte Z790 D DDR5 ATX Motherboard?
- Unparalleled Performance: With its advanced chipset and support for DDR5 memory, this motherboard delivers exceptional performance for gaming and demandingtasks.
- Future-Proof Technology: The Gigabyte Z790 D DDR5 ATX Motherboard is designed to support the latest technologies, ensuring that your system remains relevant and up-to-date for years to come.
- Enhanced Connectivity: With a wide range of connectivity options, including USB 3.2 Gen2 and PCIe 5.0 slots, this motherboard allows you to connect all your devices and peripherals with ease.
- Advanced Cooling: The motherboard's advanced cooling features keep your system running at optimal temperatures, preventing overheating and ensuring long-term stability.
- Overclocking Capabilities: For those who love to push their hardware to the limit, the Gigabyte Z790 D DDR5 ATX Motherboard offers extensive overclocking capabilities, allowing you to squeeze every bit of performance out of your CPU and memory.
In conclusion, the Gigabyte Z790 D DDR5 ATX Motherboard is a powerhouse that combines cutting-edge technology, superior performance, and advanced features. Whether you're a gamer, content creator, or overclocking enthusiast, this motherboard is the perfect choice to take your PC experience to new heights. Purchase it from Nexus for a hassle-free buying experience and start building your dream gaming rig today!
