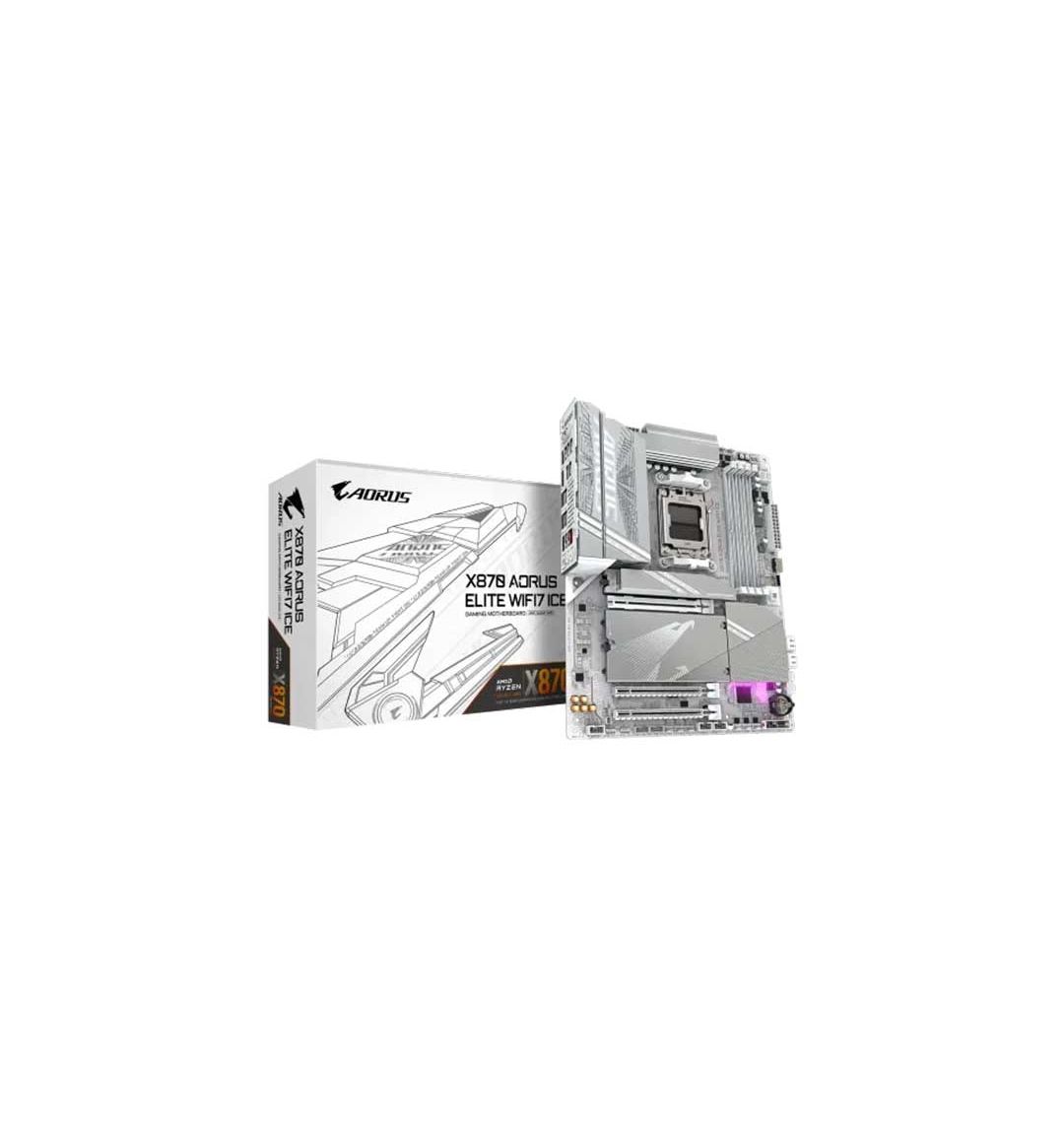

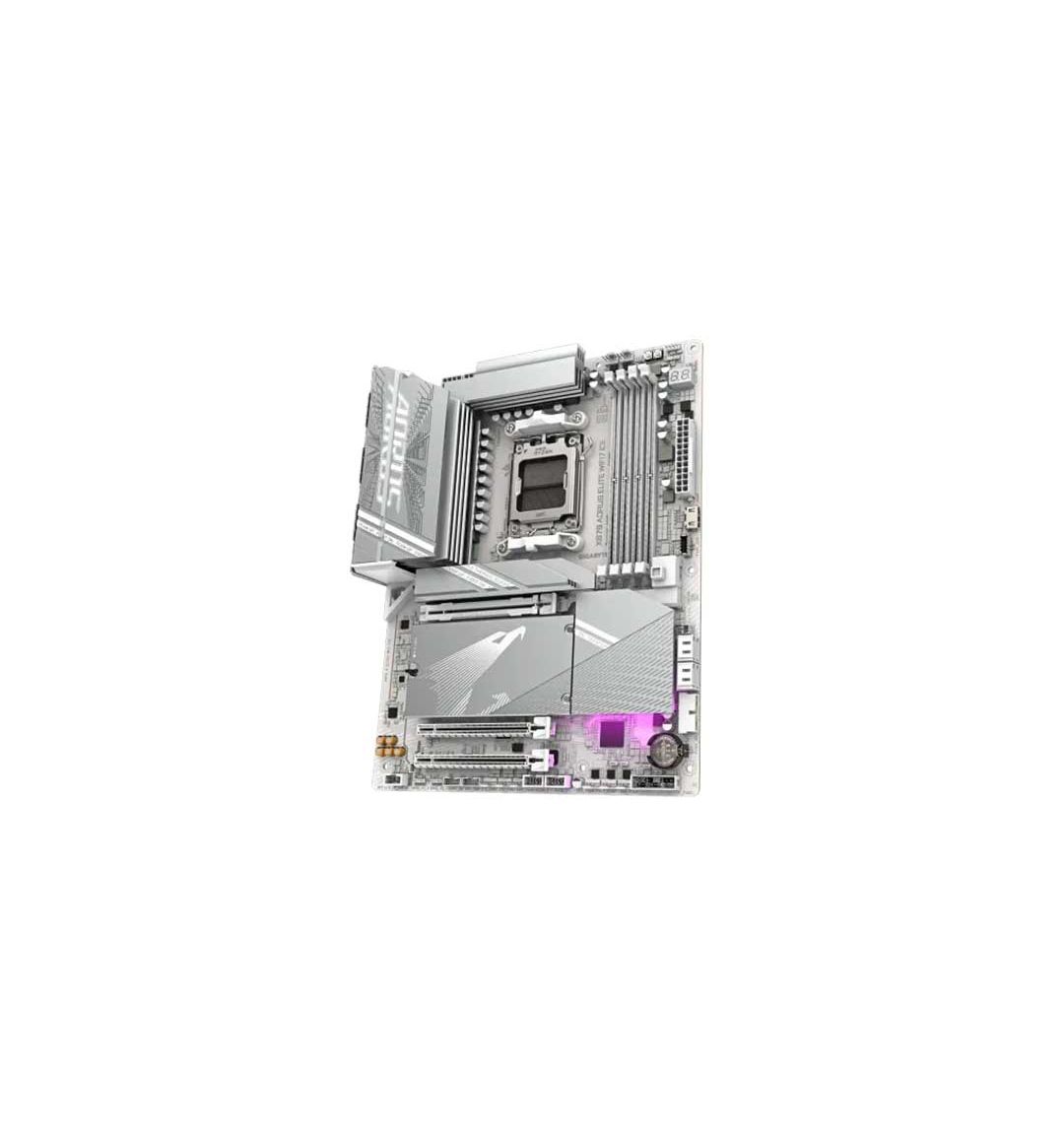

GIGABYTE X870 AORUS ELITE WIFI7 ICE DDR5 AMD AM5 ATX Motherboard
Save 7%
Please sign in so that we can notify you about a reply
Specification
| Basic Information | |
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen 9000, 8000, 7000 Series Processors |
| Chipset | AMD X870 |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Audio | Realtek ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| Expansion Slots | |
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode * The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot. When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode. AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.) Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2) |
| Memory | |
| Type | DDR5 |
| Slots | 4 DIMMs |
| Supported Memory | Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) /6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 4 x DDR5 DIMM sockets Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Maximum Memory | up to 256 GB (64 GB single DIMM capacity) of system memory |
| Graphics | |
| Graphics | Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. |
| Connector & Ports | |
| HDMI | 1 x HDMI port |
| USB (s) | CPU+ASMedia USB4® controller: - 2 x USB4® USB Type-C® ports on the back panel CPU: - 1 x USB 3.2 Gen 1 port on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 7 x USB 3.2 Gen 1 ports (3 ports on the back panel, 4 ports available through the internal USB headers) - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs * The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used. 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Audio | Realtek ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x Q-Flash Plus button 4 x USB 2.0/1.1 ports 4 x USB 3.2 Gen 1 ports 1 x HDMI port (Note) 2 x USB4® USB Type-C® ports (DisplayPort (Note)) 1 x RJ-45 port 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| Others | |
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support Smart Backup |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Warranty Information | |
| Manufacturing Warranty | 3 Years |
The GIGABYTE X870 AORUS ELITE WIFI7 ICE motherboard is engineered for peak performance and stability, making it an ideal choice for gamers, content creators, and tech enthusiasts alike. Built around the AMD X870 chipset and AM5 socket, this motherboard is compatible with AMD Ryzen 7000 Series processors, delivering remarkable processing power and efficiency. Equipped with four DDR5 DIMM slots, the motherboard supports up to 128GB of RAM at blazing speeds, including overclocking options. Its advanced connectivity options, including Wi-Fi 7 and a 2.5G LAN, ensure a seamless and high-speed internet experience. With PCIe 5.0, multiple M.2 slots, and robust thermal solutions, the X870 AORUS ELITE WIFI7 ICE is the ultimate choice for those who demand performance and flexibility in their systems.
Key Features
- Chipset & Socket: AMD X870 chipset with AM5 socket for Ryzen 7000 Series CPUs.
- Memory: 4 x DDR5 DIMM slots supporting up to 128GB and high overclocking potential.
- Connectivity: Wi-Fi 7, 2.5G LAN, and extensive USB support, including USB 3.2 Gen 2x2.
- Storage: Four M.2 slots (one PCIe 5.0) for ultra-fast storage solutions.
- Graphics: AMD CrossFire support for multi-GPU configurations.
- Cooling & Stability: 12+2 phase VRM design and advanced thermal heatsinks.
- Audio: Realtek ALC1220-VB codec for immersive 7.1-channel surround sound.
FAQs
- Which processors are compatible with the GIGABYTE X870 AORUS ELITE WIFI7 ICE?
- This motherboard is compatible with AMD Ryzen 7000 Series processors, utilizing the AM5 socket.
- Does this motherboard support DDR5 RAM?
- Yes, it has four DDR5 DIMM slots, supporting up to 128GB of RAM with speeds up to DDR5-6600+ when overclocked.
- What are the connectivity options?
- The motherboard features Wi-Fi 7, 2.5G LAN for high-speed internet, and multiple USB 3.2 ports, including a USB 3.2 Gen 2x2 Type-C.
- Does this motherboard support multi-GPU setups?
- Yes, it supports AMD CrossFire Technology, allowing multi-GPU configurations.
- What is the audio quality like?
- It features the Realtek ALC1220-VB HD Audio Codec, providing high-definition audio with support for 7.1-channel surround sound.
Why Buy from Nexus?
At Nexus, we’re committed to offering not only premium technology but also an exceptional buying experience. Here’s why Nexus should be your top choice:
- Expert Guidance: Our team provides knowledgeable guidance to help you select the best components for your system build.
- Competitive Pricing: We ensure that our prices are fair and competitive, so you get the best value for your money.
- Genuine Products: All our products are sourced directly from manufacturers and authorized distributors, guaranteeing authenticity and quality.
- Fast Shipping & Secure Packaging: Nexus offers rapid, reliable shipping and securely packages every product to ensure it arrives safely.
- After-Sales Support: Our dedicated support team is always available to assist with any questions or concerns, providing the support you need, when you need it.
Brand:
Gigabyte
Motherboard
Body Color :
White
Chipset:
AMD X870
Chipset Brand :
AMD
Form Factor :
ATX
Generation:
Not Applicable
M.2/SSD Expansion Slot :
4
Max Memory :
128GB
Memory Slot :
4
Memory type :
DDR5
RGB Support :
RGB
Socket Support :
AM5
Wifi:
Yes
VGA Port:
No
DVI Port:
No
HDMI Port:
1
DisplayPort (DP):
1
Thunderbolt:
No
Warranty.:
2 Year
