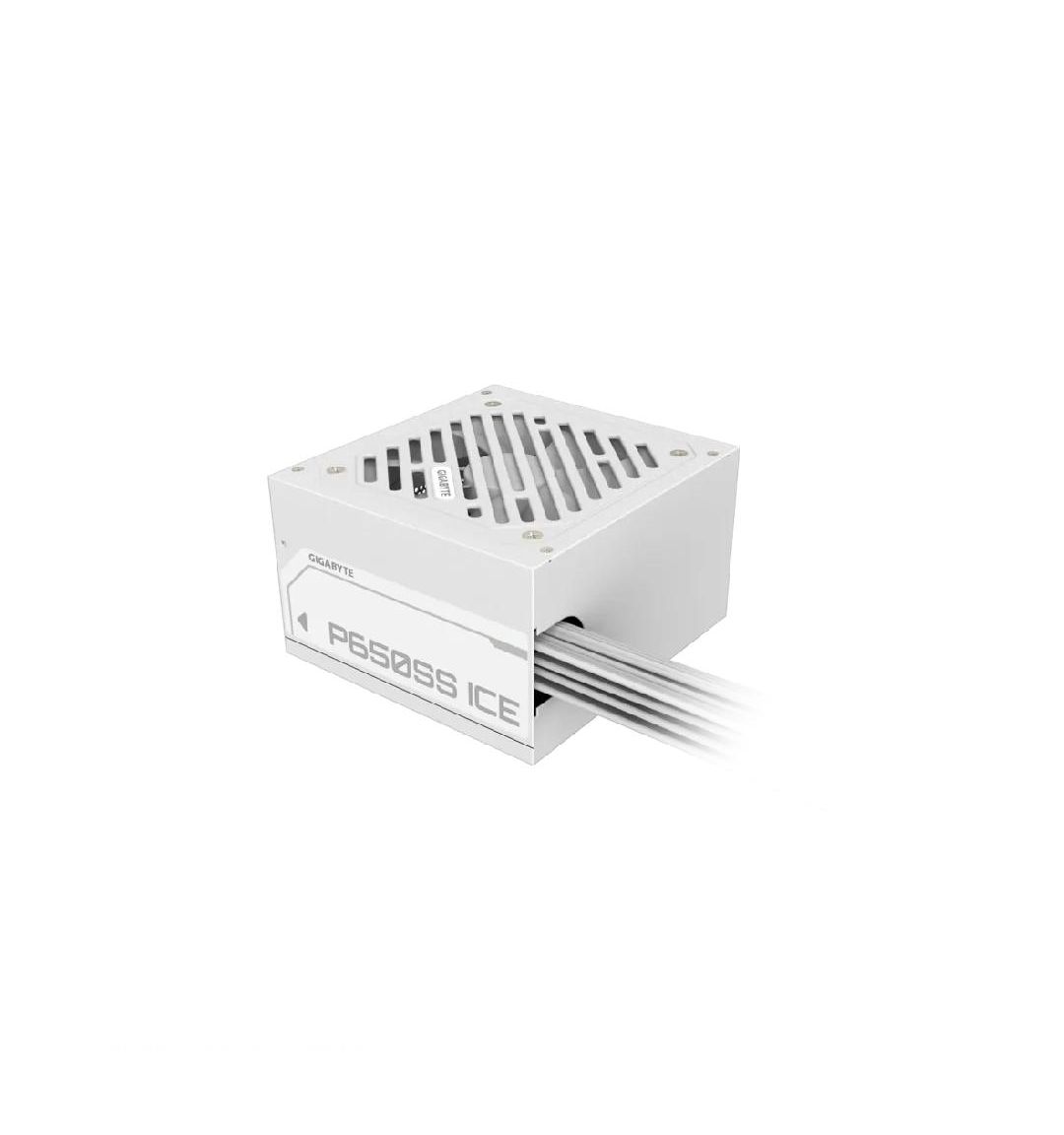

Gigabyte P650SS ICE 650W Non-Modular 80 Plus Silver Power Supply
Please sign in so that we can notify you about a reply
Specification
| Category | Details |
|---|---|
| Brand / Model | Gigabyte P650SS ICE |
| Capacity | 650W |
| Efficiency | 80 PLUS Silver (≈90% at typical load, 230V EU) |
| Form Factor | ATX 12V v3.0 |
| Cooling Fan | 120mm Fluid Dynamic Bearing (FDB) |
| Input Voltage | 155–240V AC |
| Input Current | 6.3A |
| Frequency | 50–60 Hz |
| PFC | Active PFC (>0.9 typical) |
| Hold Up Time | >16ms |
| Power Good Signal | 100–150ms |
| MTBF | >100,000 hours |
| Protection | OVP / OPP / SCP / UVP / OCP / OTP |
| Cables | Flat, all white |
| Color | White |
| Dimensions | 150 × 140 × 86 mm |
| Connectors | ATX 20+4 pin ×1 (600mm) CPU/EPS 4+4 pin ×2 (650mm + 120mm) PCIe 6+2 pin ×2 (600mm) SATA ×3 + Peripheral ×1 (500mm + 120mm + 120mm + 120mm) SATA ×2 + Peripheral ×2 (500mm + 120mm + 120mm + 120mm) |
| Warranty | 3 Years |
Description
The Gigabyte P650SS ICE 650W 80 PLUS Silver Power Supply is a reliable and efficient PSU designed for modern gaming and productivity systems. Delivering 650 watts of stable power with up to 90% efficiency, it reduces energy loss and heat output while ensuring consistent performance. The 120mm Fluid Dynamic Bearing fan provides effective cooling with quiet operation, making it ideal for both gaming and workstation builds. Equipped with active PFC and a full set of safety protections (OVP, OPP, SCP, UVP, OCP, OTP), the P650SS ICE safeguards your components from electrical risks. Its flat all-white cables enhance airflow and make cable management easier, especially in white-themed PC builds. With a compact ATX form factor, long connector reach, and over 100,000 hours MTBF, the Gigabyte P650SS ICE is a dependable and stylish power solution backed by a 3-year warranty.
