Gigabyte H610M H V2 Intel 14th, 13th, and 12th DDR4 Micro ATX Motherboard
Save 10%
Please sign in so that we can notify you about a reply

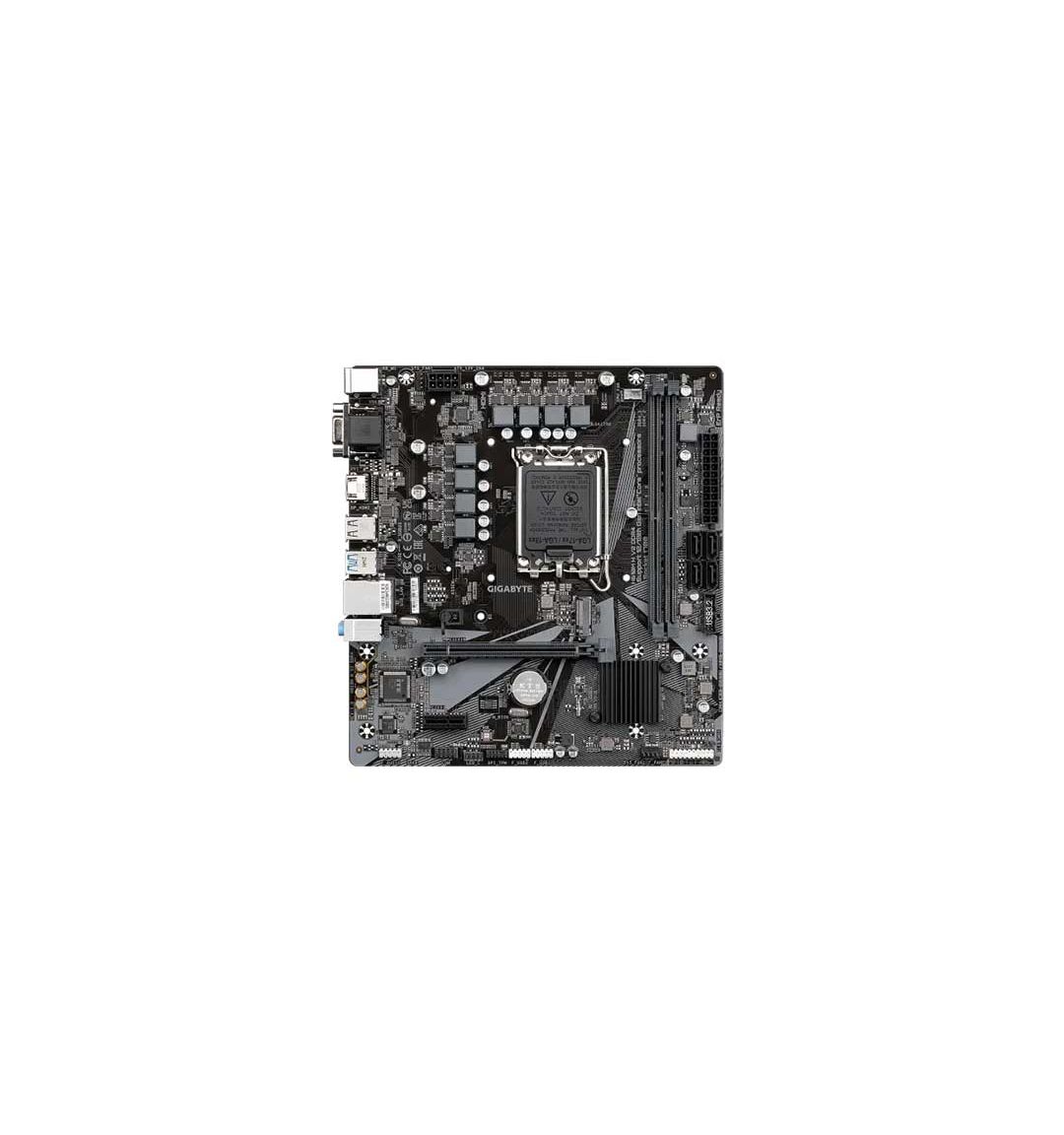

Gigabyte H610M H V2 DDR4 Motherboard
SPECIFICATION
| Brand | Gigabyte |
| Model | Gigabyte H610M H V2 |
| Chipset Brand | Intel |
| Chipset | Intel H610 Express Chipset |
| Generation | 14th, 13th, and 12th |
| Form Factor | Micro ATX Form Factor; 23.0cm x 21.5cm |
| Supported CPU | 1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors 2. L3 cache varies with CPU |
| Memory Type | DDR4 |
| Memory | 1. Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
2. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory 3. Dual channel memory architecture 4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) 5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules 6. Support for Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated Graphics Processor - Intel HD Graphics support: 1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Expansion Slot | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Supported Storage | Chipset: 1. 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) 2. 4 x SATA 6Gb/s connectors |
| LAN | Realtek GbE LAN chip (1 Gbps/100 Mbps) |
| Audio | 1.Realtek Audio CODEC
2. High Definition Audio 3.2/4/5.1/7.1-channel |
| USB Port | Chipset: 1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 2. 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 1. 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Ports | 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper |

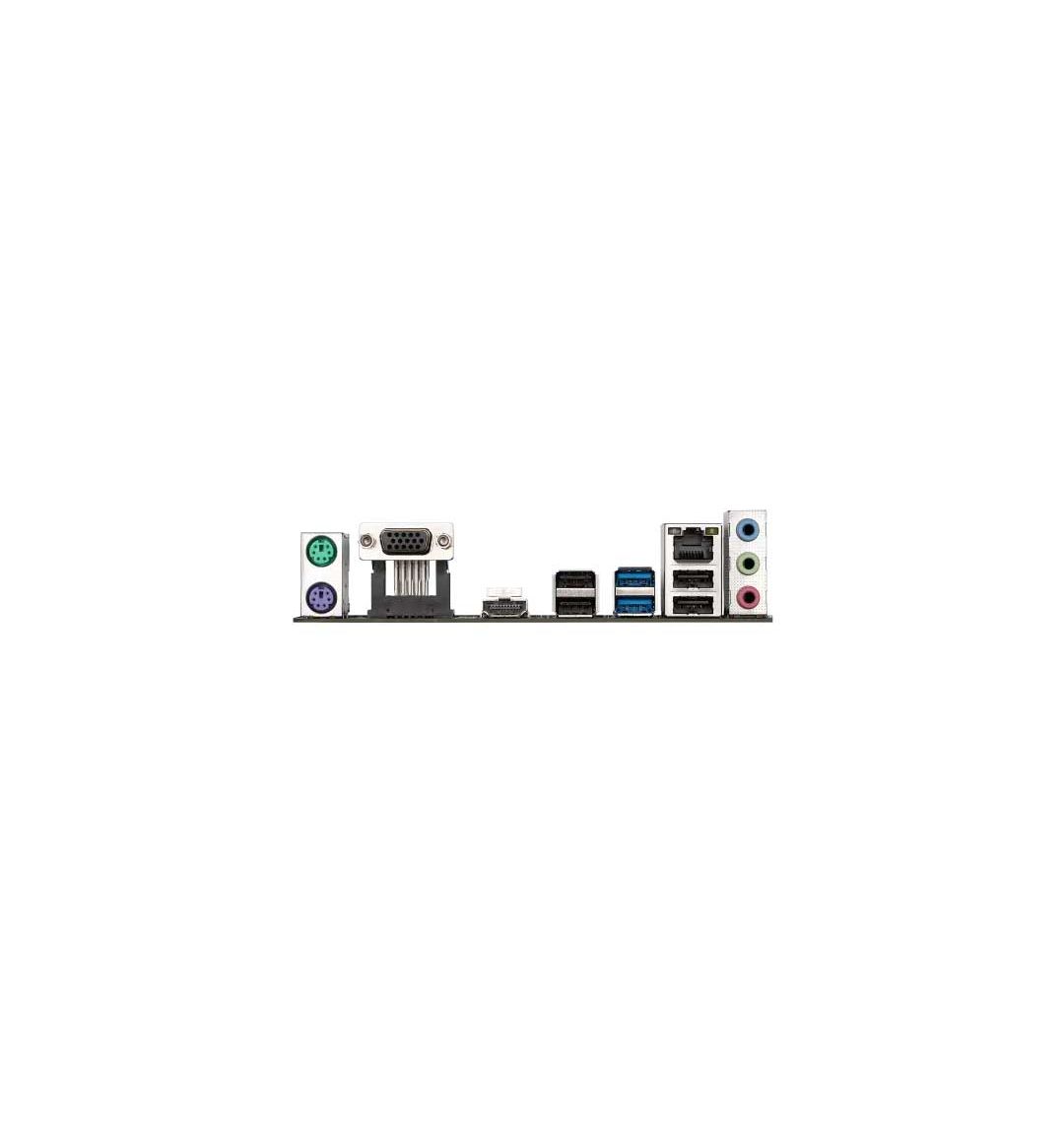

| Back Panel Connectors | 1 x PS/2 keyboard port
1 x PS/2 mouse port 1 x D-Sub port 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Supported Operating System | Support for Windows 11 64-bit
Support for Windows 10 64-bit |
| BIOS | 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Warranty Information | |
| Warranty | 3 years |
Nexus will be your first choice If you want to buy Gigabyte H610M H V2 Motherboard in Bangladesh, Because we sale only GIGABYTE authorized original Motherboard. So you are at the right place to buy right Gigabyte Motherboard at the lowest price in Bangladesh.
Nexus Offers you Gigabyte H610M H V2 Motherboard at the best price in Bangladesh, which is your budget-friendly Motherboard. Do you want to know what is the price of Gigabyte H610M H V2 Motherboard? and where you can get Gigabyte Motherboard at lowest price in BD? Yes, it is Nexus. Gigabyte H610M H V2 Motherboard now available at Nexus, So Don’t Think more to buy Gigabyte H610M H V2 Motherboard.
