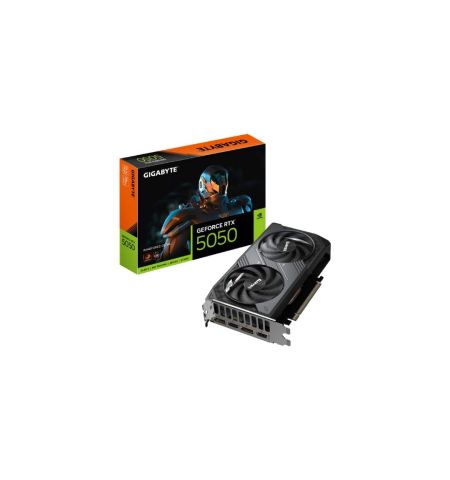

GIGABYTE GeForce RTX 5050 WINDFORCE OC 8GB GDDR6 Graphics Card
Please sign in so that we can notify you about a reply
Technical Specifications
| Attribute | Detailed Specification |
| Product Name | GIGABYTE GeForce RTX 5050 WINDFORCE OC 8G (GV-N5050WF2OC-8GD) |
| Model / Series | NVIDIA GeForce RTX 5000 Series / WINDFORCE Overclocked Lineup |
| Graphics Processing Unit | NVIDIA GeForce RTX™ 5050 |
| Core Clock Architecture | 2587 MHz (Factory Overclocked Configuration) | Reference Card: 2572 MHz |
| CUDA® Cores | 2560 Units |
| Tensor Cores | 5th Generation Tensor Cores |
| Ray Tracing Cores | 4th Generation Ray Tracing Cores |
| Graphics Memory Capacity | 8 GB |
| Memory Configuration Type | GDDR6 |
| Memory Bus Interface | 128-bit |
| Effective Memory Clock | 20 Gbps (20000 MHz) |
| Bus Interface Standard | PCI Express 5.0 |
| Maximum Digital Resolution | 7680 x 4320 @ 60 Hz (8K Output Support Layout) |
| Multi-Display Capability | Up to 4 Displays Simultaneously (Quad Display Support) |
| I/O Video Outputs | 2x DisplayPort 2.1b 2x HDMI 2.1b |
| API Support Framework | DirectX 12 Ultimate (API), OpenGL 4.6, Vulkan 1.3 |
| Hardware Video Encoding Accel | 9th Gen NVIDIA Encoder (NVENC), NVIDIA Broadcast, AV1 Hardware Encoding / Decoding |
| Cooling Architecture | WINDFORCE Cooling System (Dual unique Hawk fans with Alternate Spinning tech) |
| Thermal Enhancements | Server-grade Thermal Conductive Gel, Direct GPU Contact Copper Plate & Composite Heat Pipes |
| Fan Profile & Lubrication | 3D Active Fan (Semi-passive cooling control) | Graphene Nano Lubricant |
| Structural Protection | Ultra Durable Components Framework, Reinforced Structure, Screen Cooling Backplate |
| Recommended PSU Capacity | 550W or greater |
| Power Connectors Layout | 1x 8-pin PCI-E Power Connector |
| Physical Card Dimensions | 19.9 x 11.6 x 4.0 cm (Compact Dual-Slot ATX Form Factor) |
| Warranty Package | 3 Years Limited Brand Warranty |
Product Description
The GIGABYTE GeForce RTX 5050 WINDFORCE OC 8GB GDDR6 is an advanced, highly efficient next-generation mainstream graphics card engineered to deliver spectacular 1080p and 1440p gaming performance, heavy AI computation acceleration, and supreme hardware longevity. Driven by NVIDIA's sophisticated Blackwell architecture and armed with 2,560 CUDA cores, this model comes factory overclocked right out of the box to a boosted 2587 MHz. Outfitted with 8GB of ultra-fast GDDR6 video memory running over a robust 128-bit bus at 20 Gbps, this card acts as the ideal future-proof upgrade for modern gaming rigs, compact home theater systems, and local creator setups seeking next-generation desktop performance without excessive power requirements.
Thermal management is handled flawlessly by GIGABYTE's signature WINDFORCE cooling system. It features dual specialized Hawk fans with a unique blade layout inspired by eagle wings, increasing downforce air pressure by up to 53.6% while maintaining whisper-quiet operation. Utilizing Alternate Spinning technology, the fans rotate in opposite directions to concentrate airflow and wipe out turbulent air pockets. The card integrates premium server-grade thermal conductive gel directly over crucial components like the VRAM and MOSFETs to eliminate hot spots, while a direct-contact copper base plate and composite copper heat pipes rapidly move thermal energy to the extended cooling fin stack. Under low structural loads, 3D Active Fan technology switches to a semi-passive mode, shutting the fans off entirely for pure silence during text editing or video streaming.
For competitive gamers and digital creators, this graphics card unlocks cutting-edge technological advantages. It natively introduces NVIDIA DLSS 4.5 with Dynamic Multi-Frame Generation, leveraging its 5th Gen Tensor Cores to multiply rendering speeds while sustaining sharp image clarity. Full path tracing and complex lighting realism are driven effortlessly via 4th Gen Ray Tracing cores, while competitive responsiveness is secured through NVIDIA Reflex. Media creators benefit immensely from the integrated 9th Gen NVIDIA Encoder (NVENC), supporting native hardware-accelerated AV1 encoding for crystal-clear, ultra-efficient live streaming and rapid video rendering workflows. Complete with an advanced PCI Express 5.0 system bus, a reinforced frame structure with a screen-cooling backplate, four high-refresh display outputs (including dual DisplayPort 2.1b links), and a 3-year limited brand warranty, this WINDFORCE card stands out as a high-value desktop asset.
