Technical Specifications
| Attribute | Detailed Specification |
| Product Name | GIGABYTE GeForce RTX 5050 GAMING OC 8G (GV-N5050GAMING OC-8GD) |
| Model / Series | NVIDIA GeForce RTX 5000 Series / GAMING Overclocked Lineup |
| Graphics Processing Unit | NVIDIA GeForce RTX™ 5050 |
| Core Clock Architecture | 2632 MHz (Factory Overclocked Configuration) | Reference Card: 2572 MHz |
| CUDA® Cores | 2560 Units |
| Tensor Cores | 5th Generation Tensor Cores |
| Ray Tracing Cores | 4th Generation Ray Tracing Cores |
| Graphics Memory Capacity | 8 GB |
| Memory Configuration Type | GDDR6 |
| Memory Bus Interface | 128-bit |
| Effective Memory Clock | 20 Gbps (20000 MHz) |
| Total Memory Bandwidth | Up to 320 GB/s |
| Bus Interface Standard | PCI Express 5.0 x8 |
| Maximum Digital Resolution | 7680 x 4320 @ 60 Hz (8K Output Support Layout) |
| Multi-Display Capability | Up to 4 Displays Simultaneously (Quad Display Support) |

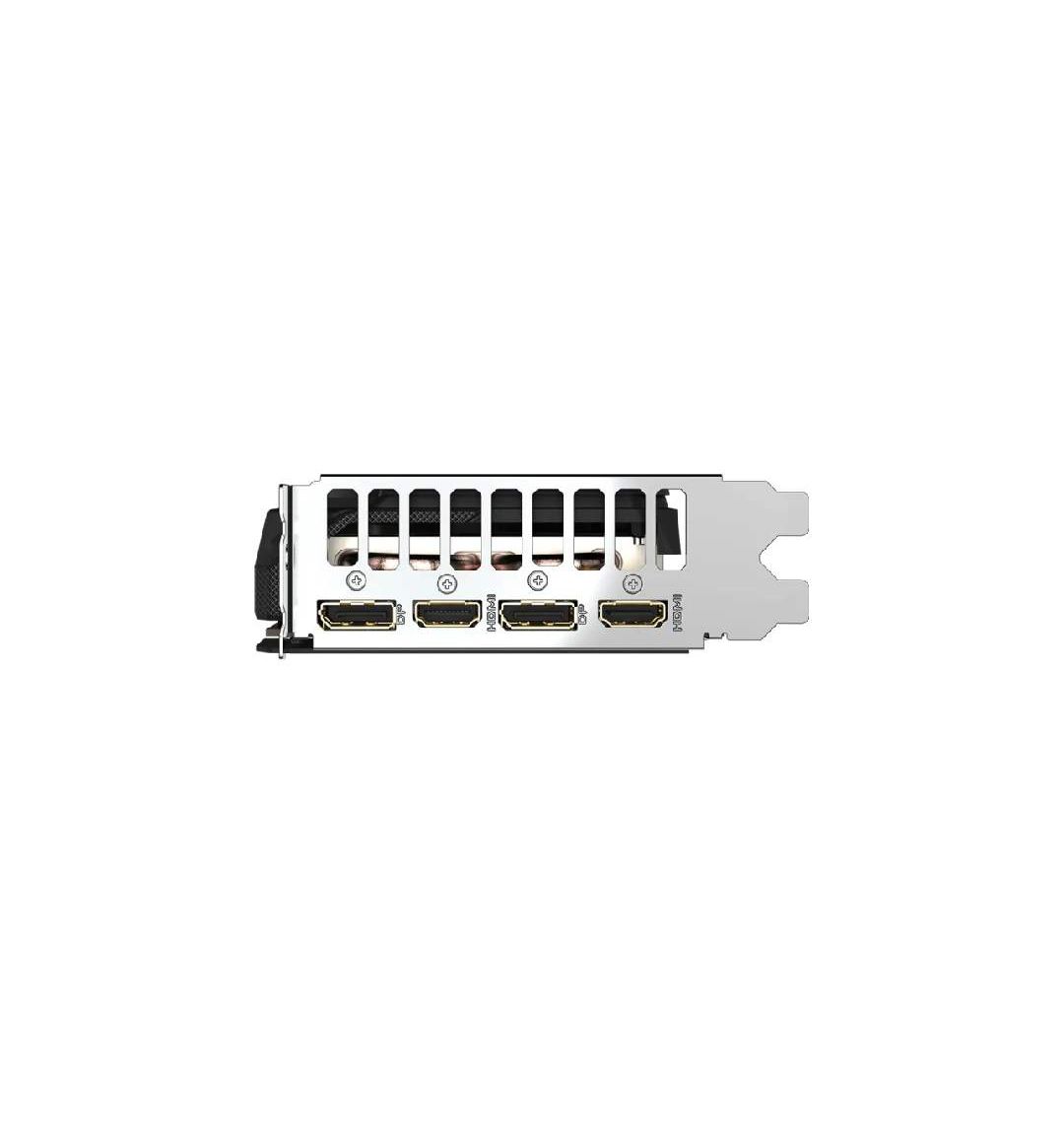

| I/O Video Outputs | 2x DisplayPort 2.1b 2x HDMI 2.1b |
| API Support Framework | DirectX 12 Ultimate (API), OpenGL 4.6, Vulkan 1.3 |
| Hardware Video Encoding Accel | 9th Gen NVIDIA Encoder (NVENC), NVIDIA Broadcast, AV1 Hardware Encoding / Decoding |
| Cooling Architecture | WINDFORCE Thermal System (Triple fan layout with Alternate Spinning tech) |
| Thermal Enhancements | Server-grade Thermal Conductive Gel, Direct GPU Contact Copper Plate & Composite Heat Pipes |
| Fan Profile & Componentry | Hawk Fan winglet design, 3D Active Fan (Semi-passive), Graphene Nano Lubricant, Extended Screen Cooling |
| Structural Protection | Mech Warrior Mechanical Aesthetic, Reinforced Protective Backplate |
| Power Target Adjustments | 130W Reference TDP (Configurable from 110W to 150W via software tuning) |
| Recommended PSU Capacity | 550W or greater |
| Power Connectors Layout | 1x 8-pin PCI-E Power Connector |
| Physical Card Dimensions | 28.0 x 11.7 x 4.0 cm (ATX PCB Form Factor) |
| Warranty Package | 3 Years Limited Brand Warranty |
Product Description
The GIGABYTE GeForce RTX 5050 GAMING OC 8GB GDDR6 represents a premium, high-performance evolution for mainstream desktop builders, packing aggressive factory tuning, high-efficiency thermal management, and cutting-edge AI rendering capabilities into a robust ATX form factor. Driven by NVIDIA's sophisticated Blackwell architecture utilizing the highly efficient GB207 silicon block, this card sets a dominant gaming pace with 2560 active CUDA cores factory overclocked right out of the box to a blistering 2632 MHz (up from the 2572 MHz reference line). Equipped with 8GB of high-speed GDDR6 video memory running over a full 128-bit bus at 20 Gbps, this model provides an agile 320 GB/s bandwidth grid, perfectly positioning it as the ultimate choice for high-frame-rate esports targets and modern triple-A gaming workloads.
Thermal performance achieves maximum stability thanks to GIGABYTE's flagship WINDFORCE triple-fan cooling architecture. Drawing aesthetic lines from futuristic mech warriors, the shroud encapsulates three specialized Hawk fans featuring curved blade surfaces inspired by eagle wings, pushing static downforce air pressure up by 53.6%. The center fan utilizes Alternate Spinning technology, turning in reverse to eliminate turbulent cross-currents and funnel air down seamlessly. Beneath the fans, server-grade thermal conductive gel covers the VRAM and MOSFET segments to optimize structural surface contact and prevent thermal drift, while a direct-contact copper plate and composite copper heat pipes swiftly draw thermal energy away from the GPU core. When executing low-load everyday tasks or playing casual indies, the 3D Active Fan framework engages its semi-passive mode, turning the fans off entirely for whisper-silent operation.
For competitive gamers and content creators, the RTX 5050 GAMING OC provides immense technological utility. It natively features NVIDIA DLSS 4.5 with Dynamic Multi-Frame Generation, harnessing its 5th Gen Tensor Cores to multiply native rendering outputs while preserving incredible text and structural detail. Cinema-quality full path tracing is processed fluidly through 4th Gen Ray Tracing cores, while system latency is cut down to minimum thresholds via NVIDIA Reflex 2. Creators benefit immensely from the integrated 9th Gen NVIDIA Encoder (NVENC), offering native hardware-accelerated AV1 encoding for smooth, crystal-clear live streaming setups and rapid video render exports. Rounded out by a next-gen PCI Express 5.0 system bus interface, a protective screen-cooling backplate structure, massive 8K display flexibility across dual DisplayPort 2.1b and dual HDMI 2.1b ports, and a 3-year limited brand warranty, this GAMING OC platform stands as a premiere cornerstone for modern desktop systems.
