Gigabyte GA-H81M-H Intel 4th DDR3 Micro ATX Motherboard
Save 7%
Please sign in so that we can notify you about a reply

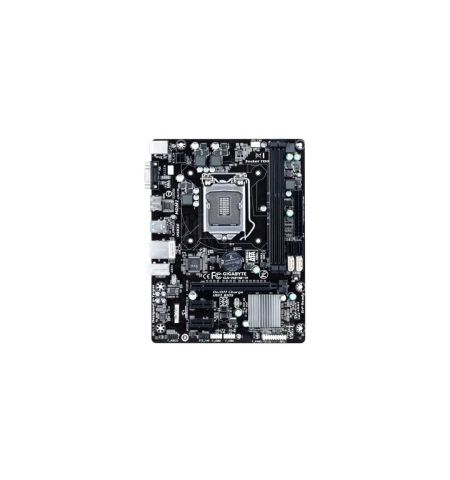

Gigabyte GA-H81M-H DDR3 Motherboard
SPECIFICATION
| Brand | Gigabyte |
| Model | Gigabyte GA-H81M-H |
| Chipset Brand | Intel |
| Generation | 4th |
| Chipset | Intel H81 Express Chipset |
| Form Factor | Micro ATX Form Factor; 22.6cm x 17cm |
| Supported CPU | 1. Support for Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1150 package 2. L3 cache varies with CPU |
| Memory Type | DDR3 |
| Memory | 1.2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
2. Dual channel memory architecture 4. Support for DDR3 1600/1333 MHz memory modules 5. Support for non-ECC memory modules 6. Support for Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated Graphics Processor - Intel® HD Graphics support: 1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200 2. 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz *Support for HDMI 1.4a version. 3. Maximum shared memory of 1 GB |
| Expansion Slot | 1. 1 x PCI Express x16 slot, running at x16 2. 2 x PCI Express x1 slots |
| Supported Storage | Chipset: 1. 2 x SATA 6Gb/s connectors (SATA3 0/1) 2. 2 x SATA 3Gb/s connectors (SATA2 2/3) |
| LAN | Realtek GbE LAN chip (10/100/1000 Mbit) |
| Audio | 1. Realtek ALC887 codec 2. High Definition Audio 3. 2/4/5.1/7.1-channel |
| USB Port | Chipset: 1. 2 x USB 3.0/2.0 ports on the back panel 2. 6 x USB 2.0/1.1 ports |
| Internal I/O Ports | 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector 2 x SATA 6Gb/s connectors 2 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper |
| Back Panel Connectors | 1 x PS/2 mouse port
1 x PS/2 Keyboard port 1 x D-Sub port 1 x HDMI port 2 x USB 3.0/2.0 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In) |
| Supported Operating System | Support for Windows 10/8.1/8/7 |
| BIOS | 1 x 32 Mbit flash
Use of licensed AMI EFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Warranty Information | |
| Warranty | 3 years |
Nexus will be your first choice If you want to buy Gigabyte GA-H81M-H Motherboard in Bangladesh, Because we sale only GIGABYTE authorized original Motherboard. So you are at the right place to buy right Gigabyte Motherboard at the lowest price in Bangladesh.
Nexus Offers you Gigabyte GA-H81M-H Motherboard at the best price in Bangladesh, which is your budget-friendly Motherboard. Do you want to know what is the price of Gigabyte GA-H81M-H Motherboard? and where you can get Gigabyte Motherboard at lowest price in BD? Yes, it is Nexus. Gigabyte GA-H81M-H Motherboard now available at Nexus, So Don’t Think more to buy Gigabyte GA-H81M-H Motherboard.
