GIGABYTE EAGLE 360 ICE All-in-One Liquid CPU Cooler
Please sign in so that we can notify you about a reply
Technical Specifications
| Attribute | Detailed Specification |
| Product Name | GIGABYTE EAGLE 360 ICE All-in-One Liquid CPU Cooler |
| Model Designation | GP-GIGABYTE EAGLE 360I (Black / Standard Finish) |
| Cooler Type Configuration | All-in-One (AIO) Liquid CPU Cooling Loop |
| Radiator Structural Material | Industrial-Grade Premium Aluminum |
| Radiator Base Dimensions | 397 x 120 x 27 mm |
| Cold Plate Block Material | Pure High-Thermal-Conductivity Copper |
| Pump Internal Dimensions | 66 x 66 x 63 mm |
| Pump Peak Operational Speed | Steady 3,200 RPM (Within ± 10% structural margin) |
| Coolant Tube Infrastructure | 400 mm Reinforced Low-Evaporation Sleeved Rubber Tubing |
| Cooling Fan Configuration | 3x 120mm High-Static-Pressure PWM ARGB Fans |
| Fan Dynamic Speed Range | 600 to 2000 RPM (Within ± 10% threshold) |
| Fan Bearing Technology | Hydraulic Dynamic Bearing (HDB) |
| Maximum Airflow Volume | 82.31 CFM |
| Maximum Static Air Pressure | 2.52 mmH2O |
| Acoustic Noise Output | Peak 37.6 dBA (Under Maximum Loading Profile) |
| Aesthetics / Illumination | Synchronizable ARGB Glow on Fans and Integrated Pump Cap |
| DIY Installation Features | Pre-Installed Radiator Fans, Streamlined Simplified Cabling Layout |

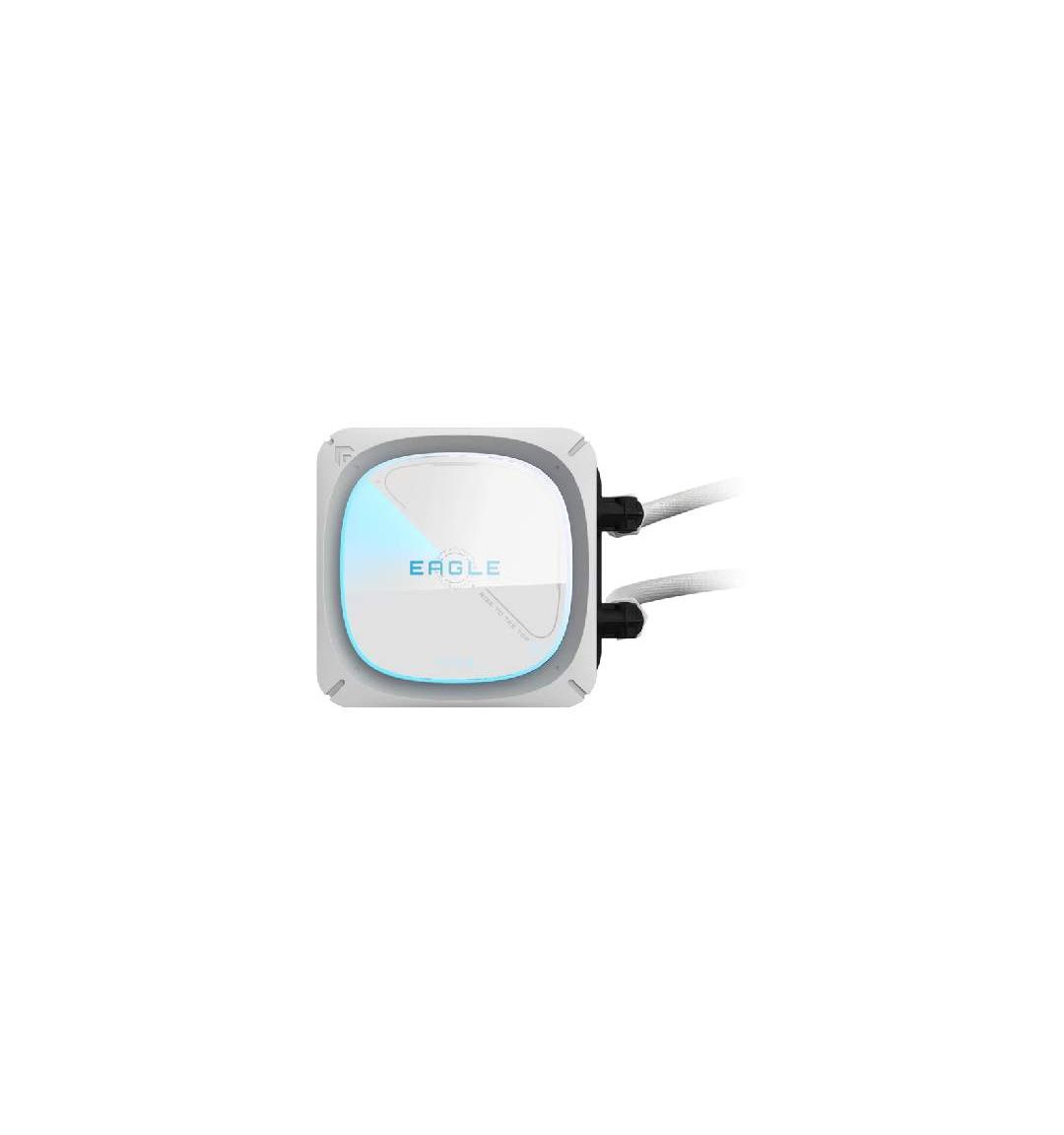

| Logo Orientation Utility | Magnetic EAGLE Accent Pump Cover (Supports Toolless Free Manual Rotation) |
| Intel Socket Compatibility | LGA 1851, LGA 1700, LGA 1200, LGA 1151, LGA 1150, LGA 1155, LGA 1156 |
| AMD Socket Compatibility | Socket AM5, Socket AM4 |
| System Fan & Pump Control | Universal Design compatible with PWM/ARGB software across all motherboard brands |
| Warranty Package | 3 Years Limited Manufacturer Brand Warranty |
Product Description
The GIGABYTE EAGLE 360 ICE All-in-One Liquid CPU Cooler is an upper-tier, builder-focused cooling system engineered to deliver massive thermal headroom for high-end multi-core processors. Built specifically to match the aesthetic philosophy of GIGABYTE's EAGLE hardware lineup, this performance-oriented loop is powered by an optimized, high-reliability 3,200 RPM water pump that ensures rapid, continuous coolant translation over a broad copper cold plate. The thermal workload is rapidly dissipated through an ultra-thin 360mm aluminum radiator matrix, enabling demanding overclockers, digital content creators, and competitive gamers to push heavy operational loads without suffering from thermal throttling or heavy acoustic spikes.
Designed with advanced DIY-friendly features, this cooler cuts common installation friction in half by arriving straight out of the box with its three 120mm high-static-pressure PWM fans pre-installed directly onto the radiator frame. A streamlined, single-channel daisy chain cable map organizes structural wire pathways, removing cluttered strands from the main view to keep internal case airflow uninhibited. Visual personalization is driven by custom addressable ARGB LED nodes arrayed across both the spinning blades and the main block housing, while a unique toolless magnetic EAGLE accent cover can be freely removed and rotated to maintain perfect logo alignment regardless of your radiator mounting orientation. Complete with universal bracket sets supporting modern platforms like Intel LGA 1851 and AMD AM5, this clean cooling asset comes backed by an official 3-year limited brand warranty.
