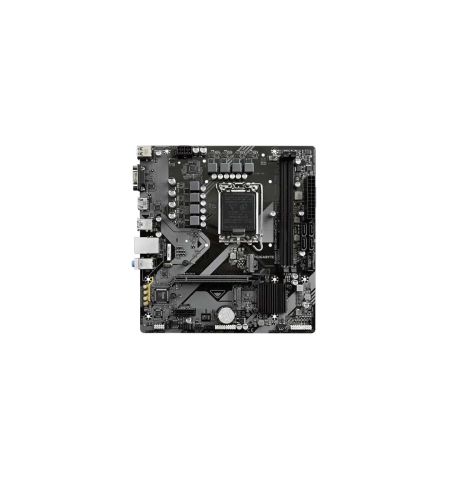

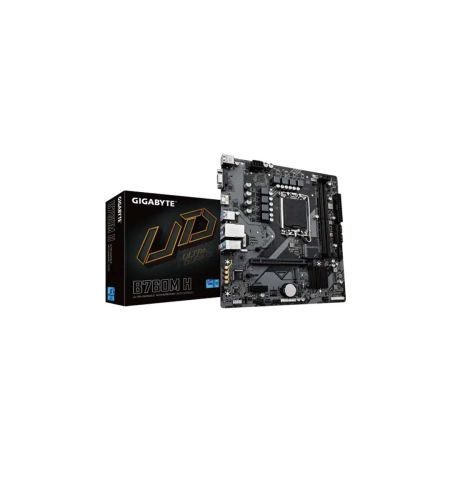

GIGABYTE B760M H DDR5 Micro ATX Motherboard
Save 12%
Please sign in so that we can notify you about a reply
Specification
| Basic Information | |
| Supported CPU | LGA1700 socket: Support for the 14th, 14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU |
| Chipset | Intel B760 Express Chipset |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 23.0cm x 21.5cm |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| Expansion Slots | |
| PCI | CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Memory | |
| Type | DDR5 |
| Slots | 2 |
| Supported Memory | Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Maximum Memory | Sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory |
| Graphics | |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. |
| Connector & Ports | |
| HDMI | 1x HDMI |
| D-Sub (s) | 1 x D-Sub port |
| USB (s) | Chipset: - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Supported Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Audio | 3 x audio jacks |
| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 2 x USB 2.0/1.1 ports 1 x D-Sub port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| Others | |
| Special Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Warranty Information | |
| Manufacturing Warranty | 03 years |
GIGABYTE B760M H DDR5 Micro ATX Motherboard
Overview
Built to support the latest Intel processors, the GIGABYTE B760M H DDR5 Micro ATX Motherboard combines cutting-edge performance with a compact form factor ideal for power users and builders looking for reliability and high-speed functionality. With support for DDR5 memory, PCIe Gen 4, and comprehensive connectivity options, this motherboard delivers enhanced performance, exceptional durability, and seamless connectivity.
Key Features
- Next-Gen Processor Compatibility: Supports Intel's 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors, thanks to the LGA1700 socket, offering a robust foundation for future upgrades.
- Fast Data Transfer with PCIe 4.0: Equipped with PCIe 4.0 x16 for graphics and NVMe SSD support, maximizing speed and responsiveness in demanding applications and gaming.
- DDR5 Memory Support: Dual-channel DDR5 compatibility supports up to 8000 MT/s for faster multitasking and smoother gameplay, with a maximum memory capacity of up to 128GB.
- Enhanced Audio Experience: Realtek® Audio CODEC with support for high-definition audio, including 7.1-channel audio, ensures immersive sound quality for games, media, and calls.
- Ample Connectivity Options: Features multiple USB ports, including six USB 3.2 Gen 1 and six USB 2.0/1.1, along with HDMI 2.1 and D-Sub support for versatile display options.
- Advanced Storage Solutions: With two M.2 PCIe 4.0 slots and four SATA 6Gb/s ports, the motherboard provides ample storage expandability with RAID 0, 1, 5, and 10 support for enhanced performance and redundancy.
- Efficient Cooling and Power Management: Equipped with multiple fan headers and RGB LED strip headers, allowing customized cooling setups and stylish lighting configurations.
Applications
The GIGABYTE B760M H DDR5 is a versatile motherboard designed for a range of applications, including:
- High-Performance Gaming: Supports powerful graphics cards, PCIe 4.0, and DDR5 memory for optimal gaming performance.
- Content Creation: Ideal for content creators needing fast data transfer, high memory capacity, and reliable performance.
- Everyday Computing: Perfect for users requiring a stable, high-quality foundation for everyday applications and multitasking.
Why Choose the GIGABYTE B760M H DDR5 Motherboard?
- Future-Proof Compatibility: Supports a broad range of Intel processors, making it an investment-ready choice for upgrades.
- High-Speed Memory and Storage: DDR5 support and PCIe 4.0 compatibility ensure you get the most out of your components.
- Comprehensive Connectivity: From multiple USB options to versatile display outputs, this motherboard ensures seamless integration with a variety of peripherals.
- Reliability and Warranty: With a 3-year warranty, this motherboard promises durability and peace of mind.
Frequently Asked Questions (FAQs)
- Which processors are compatible with the GIGABYTE B760M H DDR5 motherboard?
- This motherboard supports Intel’s 14th, 13th, and 12th Generation Core, Pentium Gold, and Celeron processors.
- Does this motherboard support overclocking for DDR5 memory?
- Yes, the motherboard supports DDR5 overclocking up to 8000 MT/s (O.C.), depending on the memory module.
- Can I install an NVMe SSD on this motherboard?
- Yes, the motherboard has two M.2 PCIe 4.0 slots, both compatible with NVMe SSDs for ultra-fast storage.
- What audio features are included?
- The Realtek Audio CODEC supports 2/4/5.1/7.1-channel high-definition audio, with options for S/PDIF out and customizable audio jack functions.
- Is this motherboard suitable for a gaming PC?
- Absolutely, with PCIe 4.0 x16 support for powerful graphics cards, fast DDR5 memory, and excellent connectivity, this board is well-suited for high-performance gaming.
Why Buy from Nexus?
Purchasing the GIGABYTE B760M H DDR5 M-ATX Motherboard from Nexus ensures that you get the best price. Nexus is known for its exceptional customer service and after-sales support, making it a trusted choice for IT products. Whether you’re a creative professional, a gamer, or simply need a dependable casing for everyday tasks, the GIGABYTE B760M H DDR5 M-ATX Motherboard delivers outstanding performance at an affordable price.
Brand:
Gigabyte
Motherboard
Body Color :
Black
Chipset:
Intel B760
Chipset Brand :
Intel
Form Factor :
Micro-ATX
Generation:
12th/13th/14th
M.2/SSD Expansion Slot :
2
Max Memory :
128GB
Memory Slot :
2
Memory type :
DDR5
RGB Support :
ARGB
Socket Support :
LGA1700
Wifi:
No
VGA Port:
1
DVI Port:
No
HDMI Port:
1
DisplayPort (DP):
No
Thunderbolt:
No
Warranty.:
3 Year
