Gigabyte B760M DS3H AX (Wi-Fi 6E) Intel 14th, 13th and 12th DDR5 Micro ATX Motherboard.

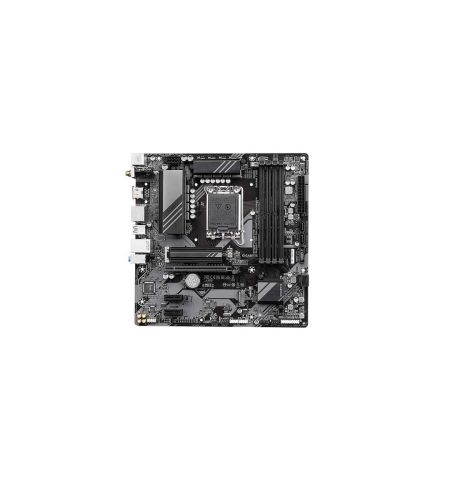

Gigabyte B760M DS3H AX DDR5 Motherboard
SPECIFICATION
Brand | Gigabyte |
Model | Gigabyte B760M DS3H AX |
Chipset Brand | Intel |
Generation | 14th, 13th and 12th |
Chipset | Intel B760 Express Chipset |
Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
Supported CPU | 1.LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium® Gold and Celeron Processors 2. L3 cache varies with CPU |
Memory Type | DDR5 |
Memory | 1.Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory 3. Dual channel memory architecture 4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) 5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules 6. Support for Extreme Memory Profile (XMP) memory modules |
Onboard Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version. |
Expansion Slot | CPU: 1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 1. 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
Supported Storage | CPU: 1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 2. 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
Wireless | WiFi: Wi-Fi 6E Bluetooth: Bluetooth 5.3 |
Audio | 1. Realtek Audio CODEC 2. High Definition Audio 3. 2/4/5.1/7.1-channel 4. Support for S/PDIF Out |
USB Port | Chipset: 1. 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 2. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) header 3. 2 x USB 2.0/1.1 ports on the back panel Chipset+2 USB 2.0 Hubs: 1. 4 x USB 2.0/1.1 ports available through the internal USB headers |
Internal I/O Ports | 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
Back Panel Connectors | 2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x HDMI port 2 x DisplayPorts 3 x USB 3.2 Gen 1 ports 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x RJ-45 port 3 x audio jacks |
Supported Operating System | Support for Windows 11 64-bit
Support for Windows 10 64-bit |
BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Warranty Information | |
Warranty | 3 years |
Nexus will be your first choice If you want to buy Gigabyte B760M DS3H AX Motherboard in Bangladesh, Because we sale only GIGABYTE authorized original Motherboard. So you are at the right place to buy right Gigabyte Motherboard at the lowest price in Bangladesh.
Nexus Offers you Gigabyte B760M DS3H AX Motherboard at the best price in Bangladesh, which is your budget-friendly Motherboard. Do you want to know what is the price of Gigabyte B760M DS3H AX Motherboard? and where you can get Gigabyte Motherboard at lowest price in BD? Yes, it is Nexus. Gigabyte B760M DS3H AX Motherboard now available at Nexus, So Don’t Think more to buy Gigabyte B760M DS3H AX Motherboard.
