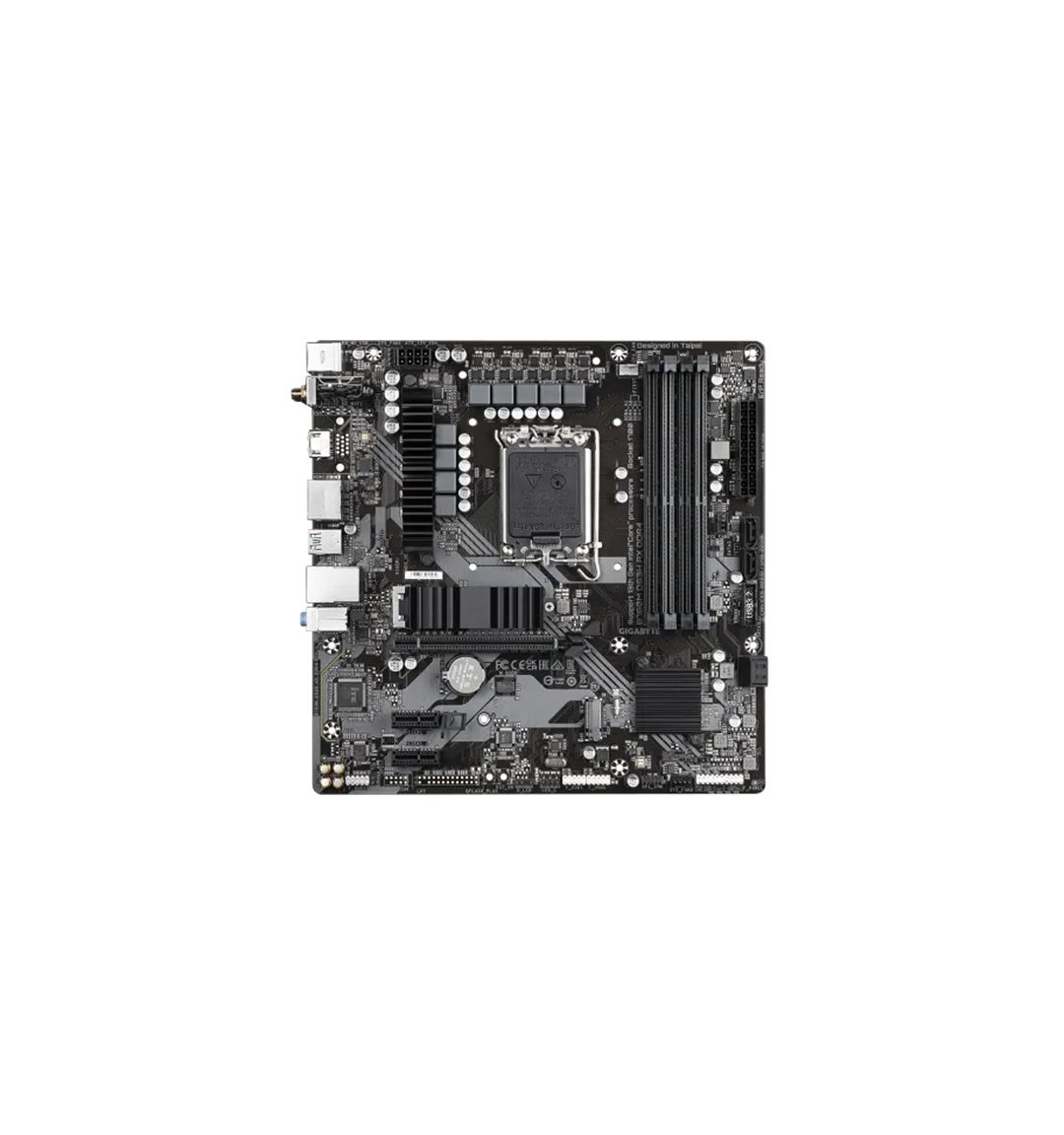

Gigabyte B760M DS3H AX DDR4 Motherboard
SPECIFICATION
| Brand | Gigabyte |
| Model | Gigabyte B760M DS3H AX |
| Chipset Brand | Intel |
| Chipset | Intel B760 Express Chipset |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Supported CPU | LGA1700 socket 1. LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors 2. L3 cache varies with CPU |
| Memory Type | DDR4 |
| Memory | 1. Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory 3. Dual channel memory architecture 4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) 5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules 6. Support for Extreme Memory Profile (XMP) memory modules |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz 3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
| Expansion Slot | CPU 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
| Supported Storage | CPU 1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset 1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 2. 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Audio | 1. Realtek Audio CODEC
2. High Definition Audio 3. 2/4/5.1/7.1-channel 4. Support for S/PDIF Out |
| Wireless | Intel Wi-Fi 6E AX210 (PCB rev. 1.0) 1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands 2. BLUETOOTH 5.3 3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Intel Wi-Fi 6E AX211 (PCB rev. 1.1) 1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands 2. BLUETOOTH 5.3 3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.2) 1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands 2. BLUETOOTH 5.3 3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| USB Port | Chipset 1. 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 2. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 3. 2 x USB 2.0/1.1 ports on the back panel Chipset+2 USB 2.0 Hubs 1. 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Ports | 1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector 3. 1 x CPU fan header 4. 3 x system fan headers 5. 1 x addressable LED strip header 6. 1 x RGB LED strip header 7. 2 x M.2 Socket 3 connectors 8. 4 x SATA 6Gb/s connectors 9. 1 x front panel header 10. 1 x front panel audio header 11. 1 x USB 3.2 Gen 1 header 12. 2 x USB 2.0/1.1 headers 13. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 14. 1 x S/PDIF Out header 15. 1 x Q-Flash Plus button 16. 1 x reset button 17. 1 x reset jumper 18. 1 x Clear CMOS jumper |
| External I/O Ports | 1. 2 x USB 2.0/1.1 ports
2. 1 x PS/2 keyboard/mouse port 3. 2 x SMA antenna connectors (2T2R) 4. 1 x HDMI port 5. 2 x DisplayPorts 6. 3 x USB 3.2 Gen 1 ports 7. 1 x USB Type-C® port, with USB 3.2 Gen 2 support 8. 1 x RJ-45 port 9. 3 x audio jacks |
| Supported Operating System | Windows 11 64-bit
Windows 10 64-bit |
| BIOS | 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Warranty Information | |
| Warranty | 3 years |
