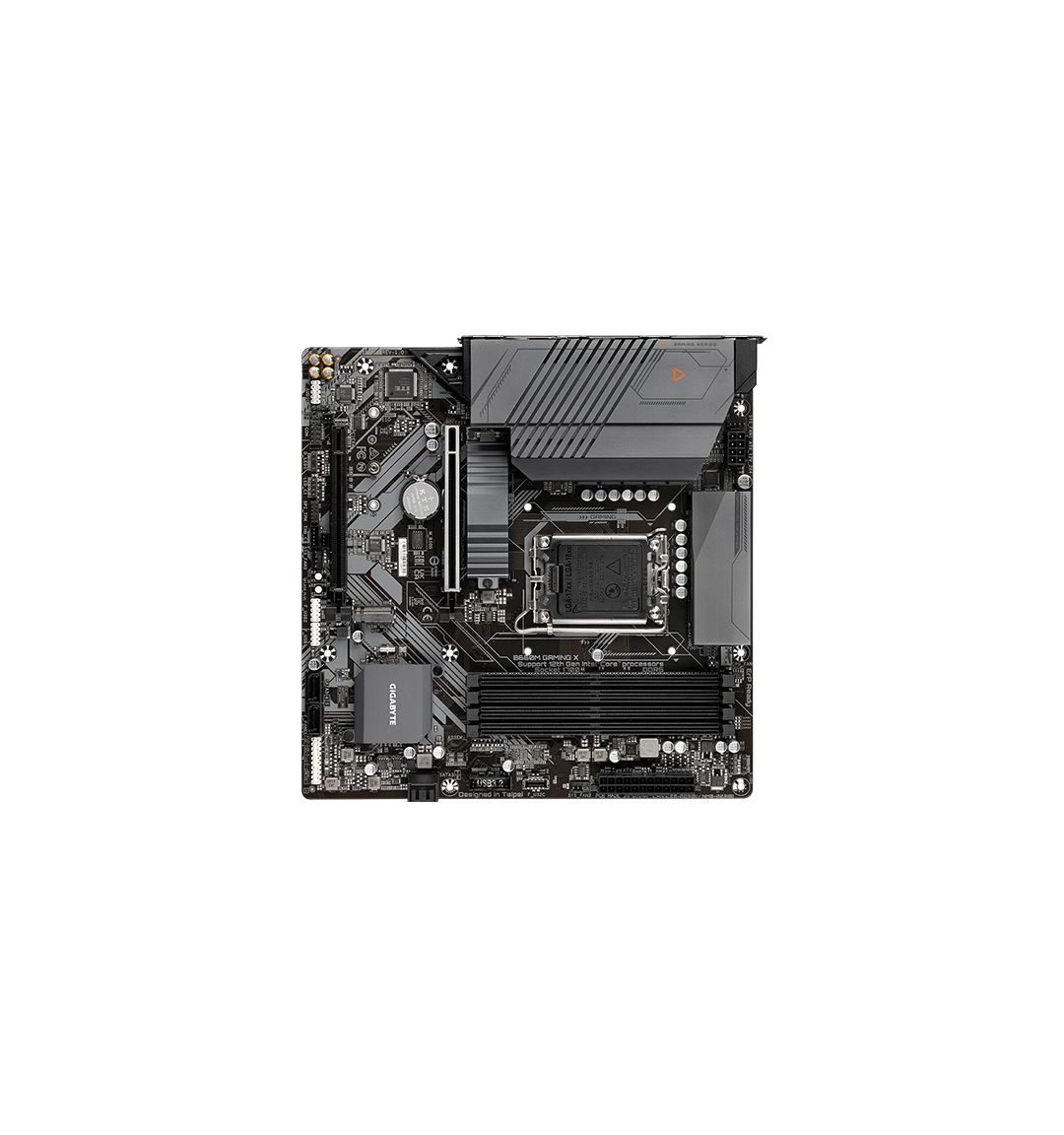

Gigabyte B660M GAMING X DDR5 Motherboard
SPECIFICATION
| Brand | Gigabyte |
| Model | Gigabyte B660M GAMING X DDR5 |
| Chipset Brand | Intel |
| Chipset | Intel B660 Express Chipset |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Supported CPU | 1. LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors 2. L3 cache varies with CPU |
| Memory Type | DDR5 |
| Memory | 1. Support for DDR5 5600(O.C.) / 5400(O.C.) / 5200(O.C.) /4800/4000 MHz memory modules 2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory 3. Dual channel memory architecture 4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) 5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules 6. Support for Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz 2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Expansion Slot | 1. 1 x PCI Express x16 slot, running at x16 (PCIEX16) 2. 1 x PCI Express x16 slot, running at x4 (PCIEX4) |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 2. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 |
| LAN | 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Audio | 1. Realtek Audio CODEC
2. High Definition Audio 3. 2/4/5.1/7.1-channel 4. Support for S/PDIF Out |
| USB Port | Chipset: 1. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 2. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 3. 1 x USB 2.0/1.1 port on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Ports | 1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector 3. 1 x CPU fan header 4. 3 x system fan headers 5. 2 x addressable LED strip headers 6. 2 x RGB LED strip headers 7. 2 x M.2 Socket 3 connectors 8. 4 x SATA 6Gb/s connectors 9. 1 x front panel header 10. 1 x front panel audio header 11. 1 x USB Type-C® header, with USB 3.2 Gen 2 support 12. 1 x USB 3.2 Gen 1 header 13. 2 x USB 2.0/1.1 headers 14. 1 x S/PDIF Out header 15. 2 x Thunderbolt™ add-in card connectors 16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 17. 1 x serial port header 18. 1 x reset button 19. 1 x Q-Flash Plus button 20. 1 x reset jumper 21. 1 x Clear CMOS jumper |
| External I/O Ports | 1. 3 x USB 3.2 Gen 1 ports
2. 5 x USB 2.0/1.1 ports 3. 1 x HDMI 2.1 port 4. 1 x DisplayPort 5. 1 x RJ-45 port 6. 3 x audio jacks |
| Supported Operating System | Support for Windows 11 64-bit
Support for Windows 10 64-bit |
| BIOS | 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Warranty Information | |
| Warranty | 3 years |
