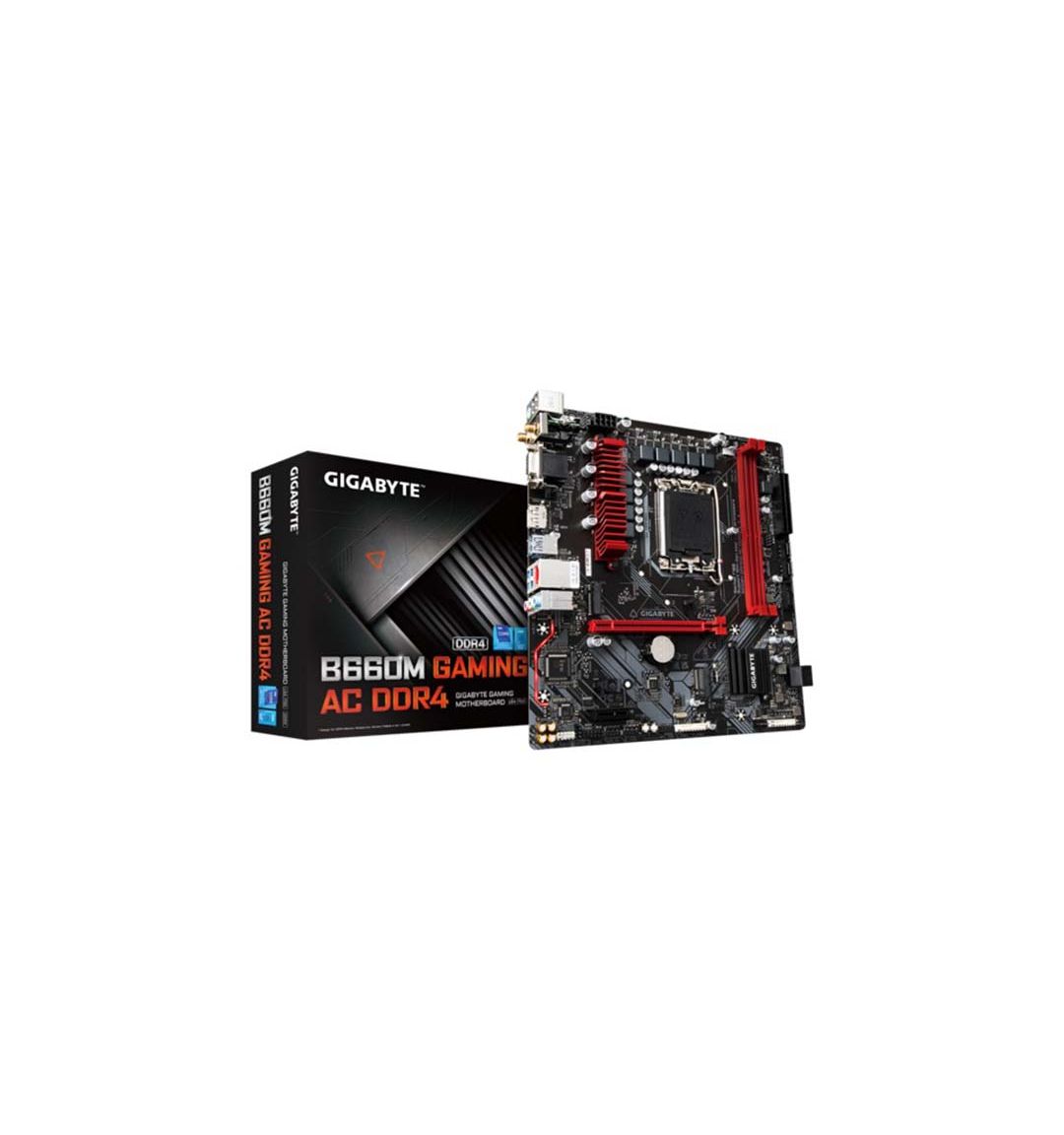

Gigabyte B660M Gaming AC DDR4 12th Gen Micro ATX Motherboard
Save 12%
Please sign in so that we can notify you about a reply

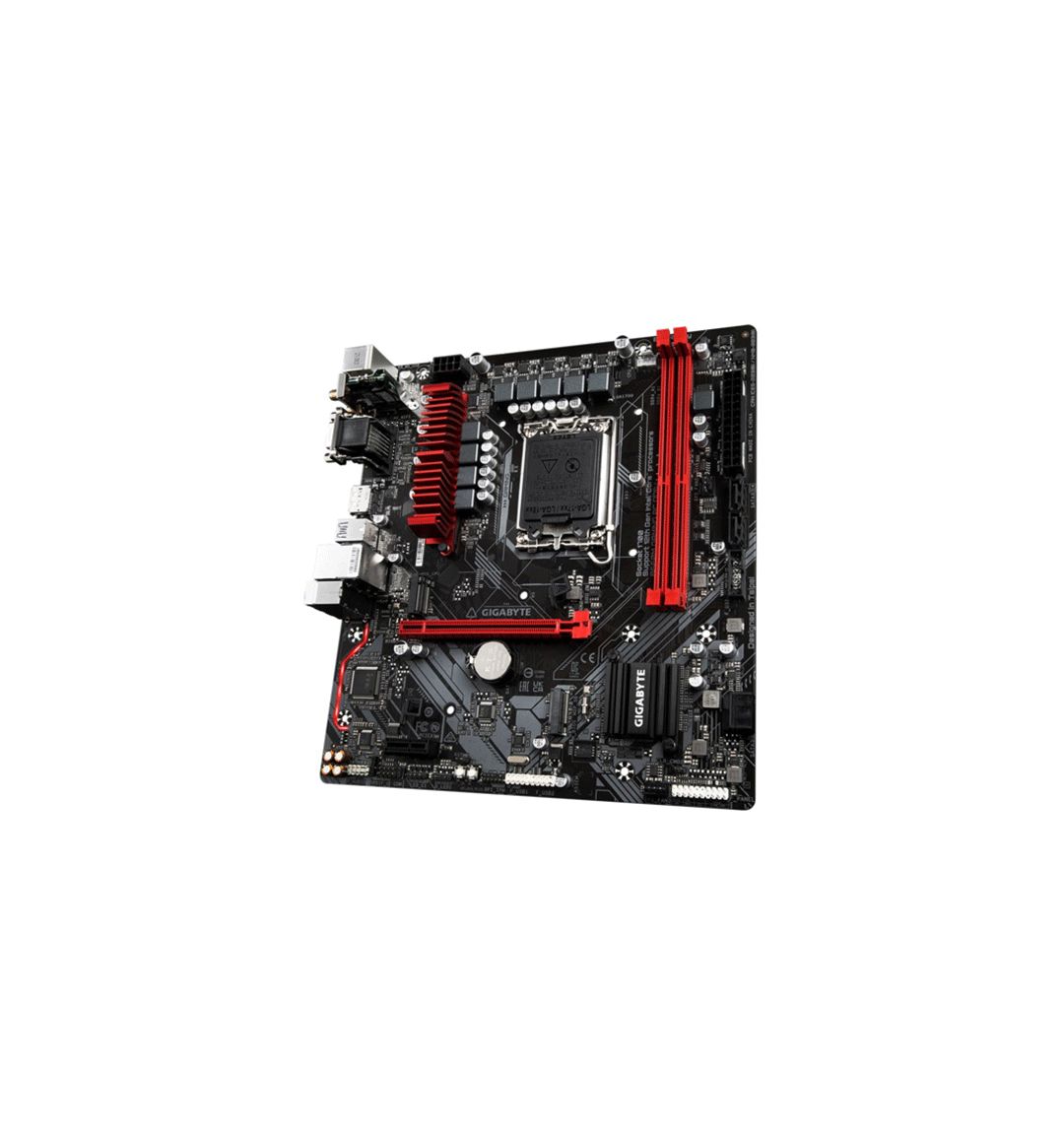

Gigabyte B660M Gaming AC DDR4 Motherboard
SPECIFICATION
| Supported CPU | LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold, and Celeron Processors L3 cache varies with the CPU |
| Chipset | Intel B660 Express Chipset |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. Support for S/PDIF Out |
| Specifications | |
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) (The PCIEX4 slot conforms to PCI Express 3.0 standard.) |
| M.2 Socket | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready |
| Memory | |
| Type | DDR4 |
| Slots | 4 x DIMM |
| Supported Memory | Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Maximum Memory | up to 128 GB (32 GB single DIMM capacity) of system memory |
| Graphics | |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 |
| Connector & Ports | |
| HDMI | 1 x HDMI port |
| Display Port (s) | 1 x DisplayPort |
| D-Sub (s) | 1 x D-Sub port |

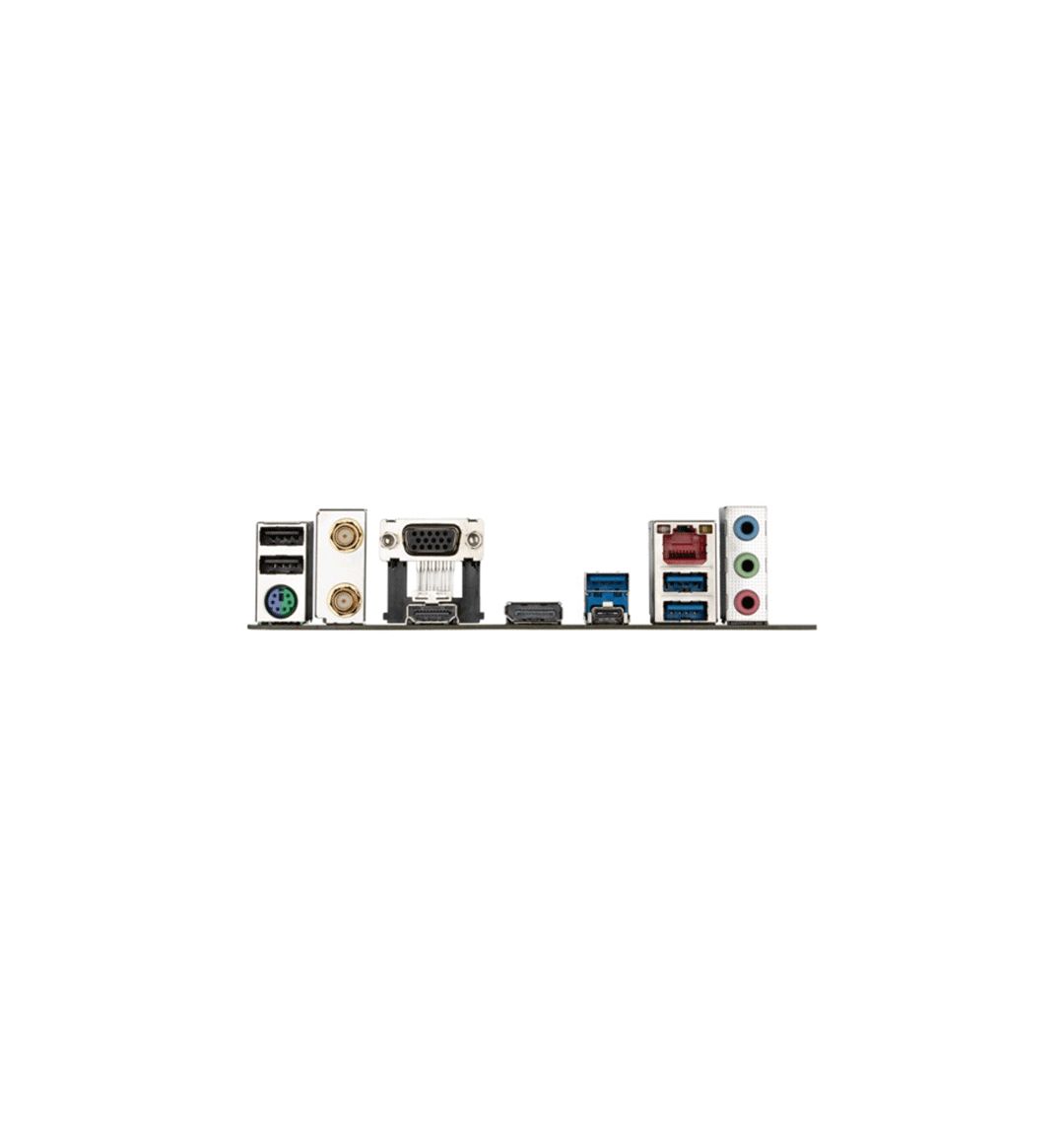

| USB (s) | Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel Chipset+2 USB 3.2 Gen 1 Hubs: 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 4.2 Support for 11ac wireless standard and up to 433 Mbps data rate |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready System acceleration with Intel® Optane Memory can only be enabled on the M.2 connectors supported by the Chipset. |
| Audio | 2 x audio jacks |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
Warranty: 03 Years
Nexus will be your first choice If you want to buy Gigabyte B660M GAMING AC DDR4 Motherboard in Bangladesh, Because we sell only Gigabyte authorized original Motherboard. So you are at the right place to buy the right Gigabyte Motherboard at the lowest price in Bangladesh.
Nexus Offers you Gigabyte B660M GAMING AC DDR4 Motherboard at the best price in Bangladesh, which is your budget-friendly Motherboard. Do you want to know what is the price of the Gigabyte B660M GAMING AC DDR4 Motherboard? and where you can get a Gigabyte Motherboard at the lowest price in BD? Yes, it is Nexus. Gigabyte B660M GAMING AC DDR4 Motherboard is now available at Nexus, So Don’t Think more to buy Gigabyte B660M GAMING AC DDR4 Motherboard.
