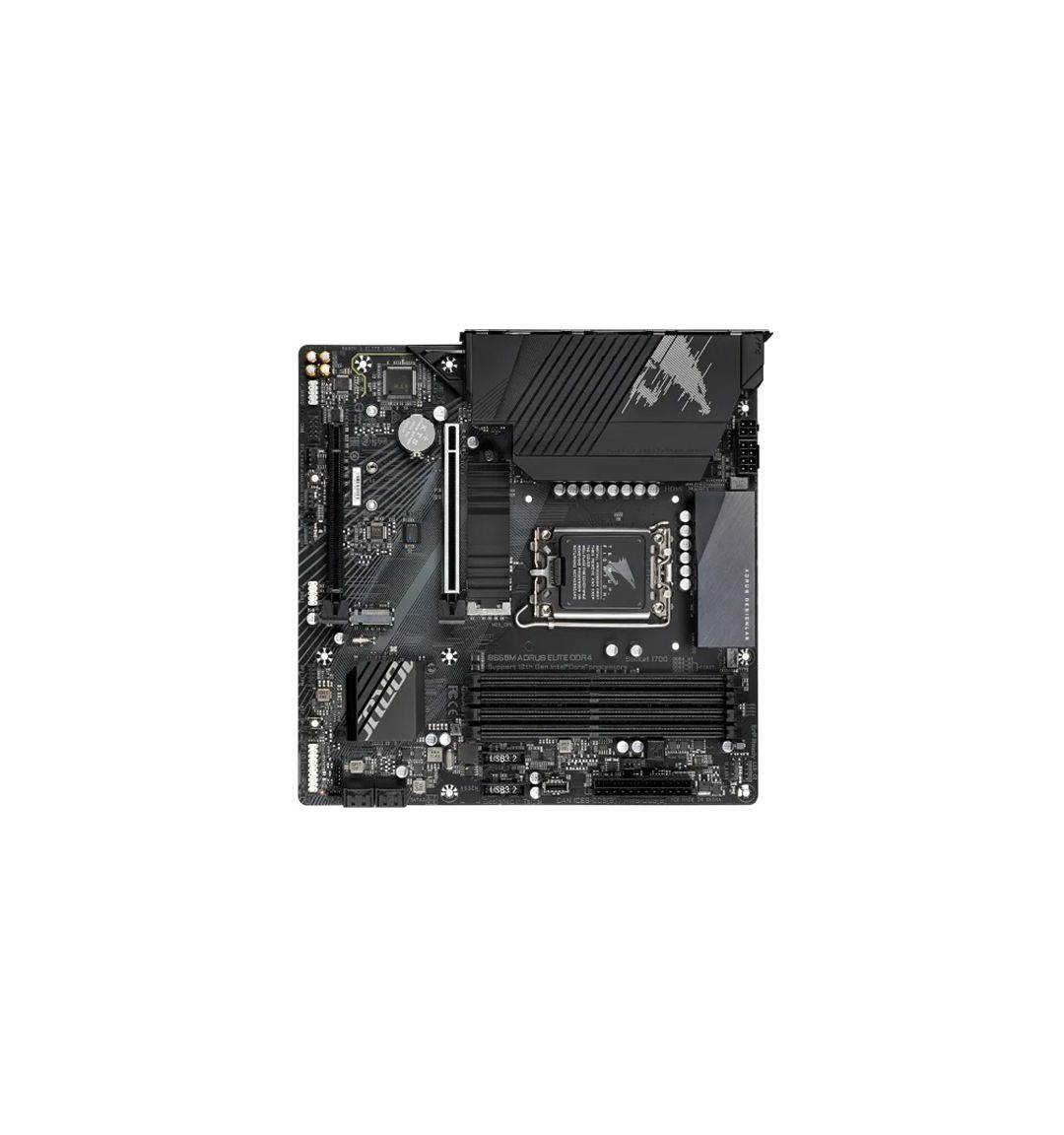

Gigabyte B660M AORUS ELITE DDR4 13th and 12th Gen Micro ATX Motherboard
Save 8%
Please sign in so that we can notify you about a reply
Gigabyte B660M AORUS ELITE DDR4 Motherboard
SPECIFICATION
| Brand | Gigabyte |
| Model | Gigabyte B660M AORUS ELITE DDR4 |
| Chipset Brand | Intel |
| Chipset | Intel B660 Express Chipset |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Supported CPU | 1. LGA1700 socket: Support for 13th Generation Intel Core Processors and 12th Generation Intel Core, Pentium Gold and Celeron Processors 2. L3 cache varies with CPU |
| Memory Type | DDR4 |
| Memory | 1. Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MT/s memory modules 2. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory 3. Dual channel memory architecture 4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) 5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules 6. Support for Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz 2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Expansion Slot | 1. 1 x PCI Express x16 slot, running at x16 (PCIEX16) 2. 1 x PCI Express x16 slot, running at x4 (PCIEX4) |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 2. 4 x SATA 6Gb/s connectors Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Audio | 1. Realtek Audio CODEC
2. High Definition Audio 3. 2/4/5.1/7.1-channel 4. Support for S/PDIF Out |
| USB Port | Chipset: 1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support 2. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 4. 2 x USB 3.2 Gen 1 ports on the back panel 5. 2 x USB 2.0/1.1 ports available through the internal USB header Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel |
| Internal I/O Ports | 1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector 3. 1 x CPU fan header 4. 3 x system fan headers 5. 2 x addressable LED strip headers 6. 2 x RGB LED strip headers 7. 2 x M.2 Socket 3 connectors 8. 4 x SATA 6Gb/s connectors 9. 1 x front panel header 10. 1 x 4-pin ATX 12V power connector 11. 1 x front panel audio header 12. 1 x USB Type-C® header, with USB 3.2 Gen 2 support 13. 2 x USB 3.2 Gen 1 headers 14. 1 x USB 2.0/1.1 header 15. 2 x Thunderbolt™ add-in card connectors 16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 17. 1 x serial port header 18. 1 x reset button 19. 1 x Q-Flash Plus button 20. 1 x reset jumper 21. 1 x Clear CMOS jumper |
| External I/O Ports | 1.1 x USB Type-C® port, with USB 3.2 Gen 2 support
2. 1 x USB 3.2 Gen 2 Type-A port (red) 3. 2 x USB 3.2 Gen 1 ports 4. 4 x USB 2.0/1.1 ports 5. 1 x HDMI 2.0 port 6. 1 x DisplayPort 7. 1 x RJ-45 port 8. 1 x optical S/PDIF Out connector 9. 2 x audio jacks |
| Supported Operating System | Support for Windows 11 64-bit
Support for Windows 10 64-bit |
| BIOS | 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Warranty Information | |
| Warranty | 3 years |
Nexus will be your first choice If you want to buy Gigabyte B660M AORUS ELITE DDR4 Motherboard in Bangladesh, Because we sale only GIGABYTE authorized original Motherboard. So you are at the right place to buy right Gigabyte Motherboard at the lowest price in Bangladesh.
Nexus Offers you Gigabyte B660M AORUS ELITE DDR4 Motherboard at the best price in Bangladesh, which is your budget-friendly Motherboard. Do you want to know what is the price of Gigabyte B660M AORUS ELITE DDR4 Motherboard? and where you can get Gigabyte Motherboard at lowest price in BD? Yes, it is Nexus. Gigabyte B660M AORUS ELITE DDR4 Motherboard now available at Nexus, So Don’t Think more to buy Gigabyte B660M AORUS ELITE DDR4 Motherboard.
