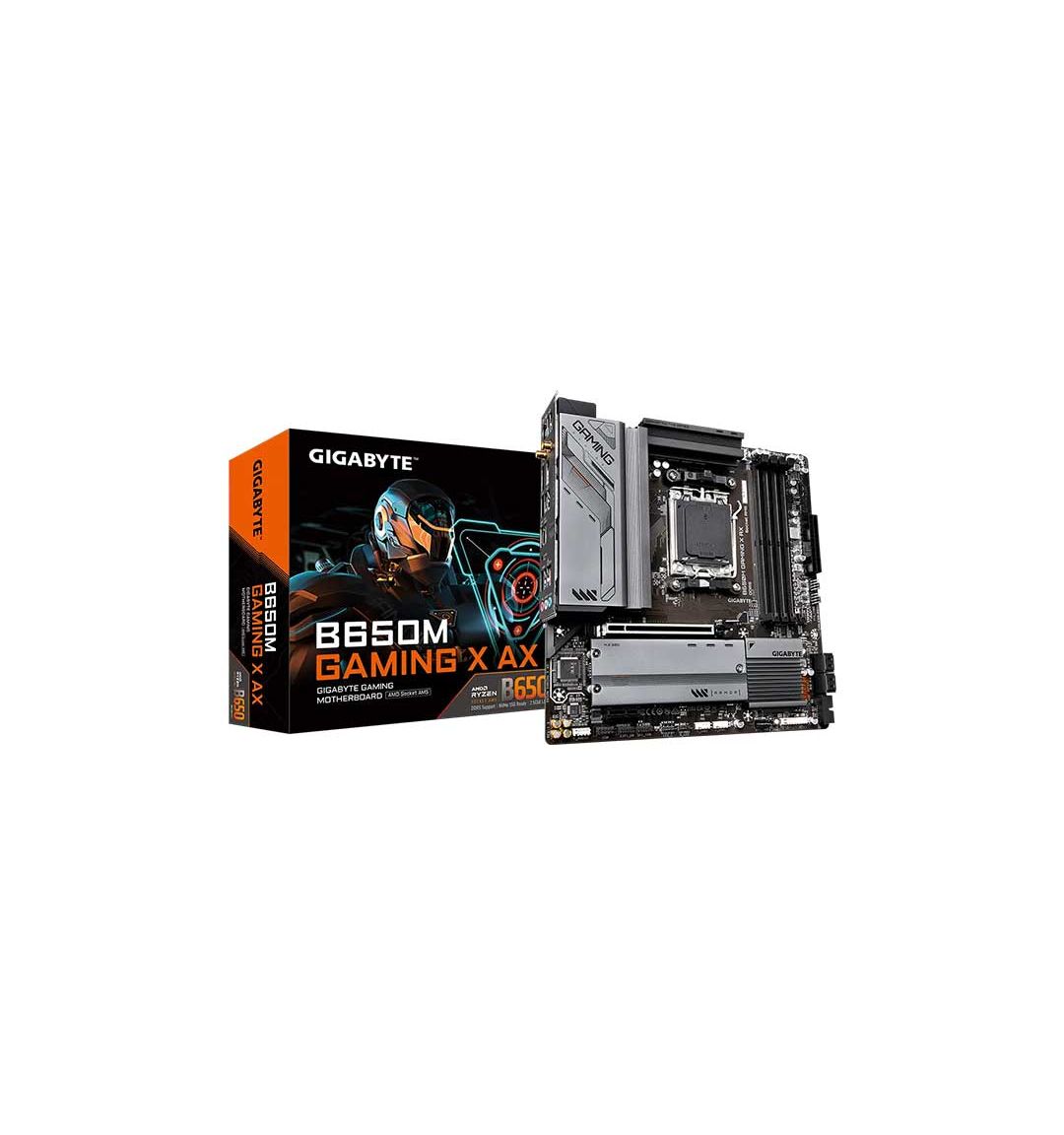

GIGABYTE B650M GAMING X AX DDR5 AM5 Motherboard
GIGABYTE B650M GAMING X AX DDR5 AM5 Motherboard Specification
Basic Information | ||
Supported CPU | AMD Socket AM5, support for: AMD Ryzen 8000/ 7000 Series Processors | |
Chipset | AMD B650 | |
BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
Expansion Slots | ||
PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) | |
Memory | ||
Type | DDR5 | |
Slots | 4 DIMMs | |
Supported Memory | 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory module | |
Maximum Memory | 192GB | |
Graphics | ||
Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports (Graphics specifications may vary depending on CPU support.) Support for up to 3 displays at the same time | |
Connector & Ports | ||
HDMI | 1x HDMI | |
Display Port (s) | 2 x DisplayPorts | |
USB (s) | CPU: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel CPU + USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back pane Chipset: - 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports available through the internal USB headers | |
LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
Wireless Communication module | Realtek Wi-Fi 6E RTL8852CE - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard | |
Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors | |
RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
Audio | 3 x Audio jacks | |
Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header (D_LED1) 1 x addressable LED strip header (D_LED2) 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 2 x DisplayPorts 1 x HDMI port 1 x USB 3.2 Gen 2 Type-A port (red) 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x Q-Flash Plus button 1 x RJ-45 port 2 x USB 3.2 Gen 1 ports 3 x audio jacks | |
TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) | |
Others | ||
Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus | |
Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software | |
Warranty Information | ||
Manufacturing Warranty | 3 Years |
Gigabyte B650M GAMING X AX DDR5 AM5 Motherboard
Overview of Gigabyte B650M GAMING X AX DDR5 AM5 Motherboard
The Gigabyte B650M GAMING X AX DDR5 AM5 Motherboard is a powerful and feature-rich motherboard designed for gaming and content creation, supporting AMD Ryzen 7000 and 8000 series processors.
Key Features of Gigabyte B650M GAMING X AX DDR5 AM5 Motherboard
- Unparalleled Performance: Direct 6+2+1 Phases Digital VRM Solution
- Dual Channel DDR5: 4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage: 2*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard: Ensures VRM Power Stability & 25110 M.2 SSD Performance
- Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity: 2DP, HDMI, 2USB-C®10Gb/s
Why Buy from Nexus?
- Best Price: Get the Gigabyte B650M GAMING X AX DDR5 AM5 Motherboard at a competitive price from Nexus
- Expert Support: Receive assistance from our knowledgeable team for a hassle-free installation
Who is it Good For?
- Gamers: Perfect for gamers seeking a high-performance motherboard with advanced cooling and storage options
- Content Creators: Ideal for content creators requiring fast storage and network connectivity
Why is it Good?
- Powerful Performance: Supports AMD Ryzen 7000 and 8000 series processors for unparalleled performance
- Advanced Cooling: Features fully covered MOSFET heatsinks for optimal thermal efficiency
- Fast Storage: Offers PCIe 4.0 x4 M.2 connectors for rapid storage access
Buy the Gigabyte B650M GAMING X AX DDR5 AM5 Motherboard from Nexus today and unlock your system's full potential!
What is the price of Gigabyte B650M GAMING X AX DDR5 AM5 Motherboard in Bangladesh?
The latest price of Gigabyte B650M GAMING X AX DDR5 AM5 Motherboard in Bangladesh is 27,600৳. You can buy the Gigabyte B650M GAMING X AX DDR5 AM5 Motherboard at best price from our website or visit any of our showrooms.
