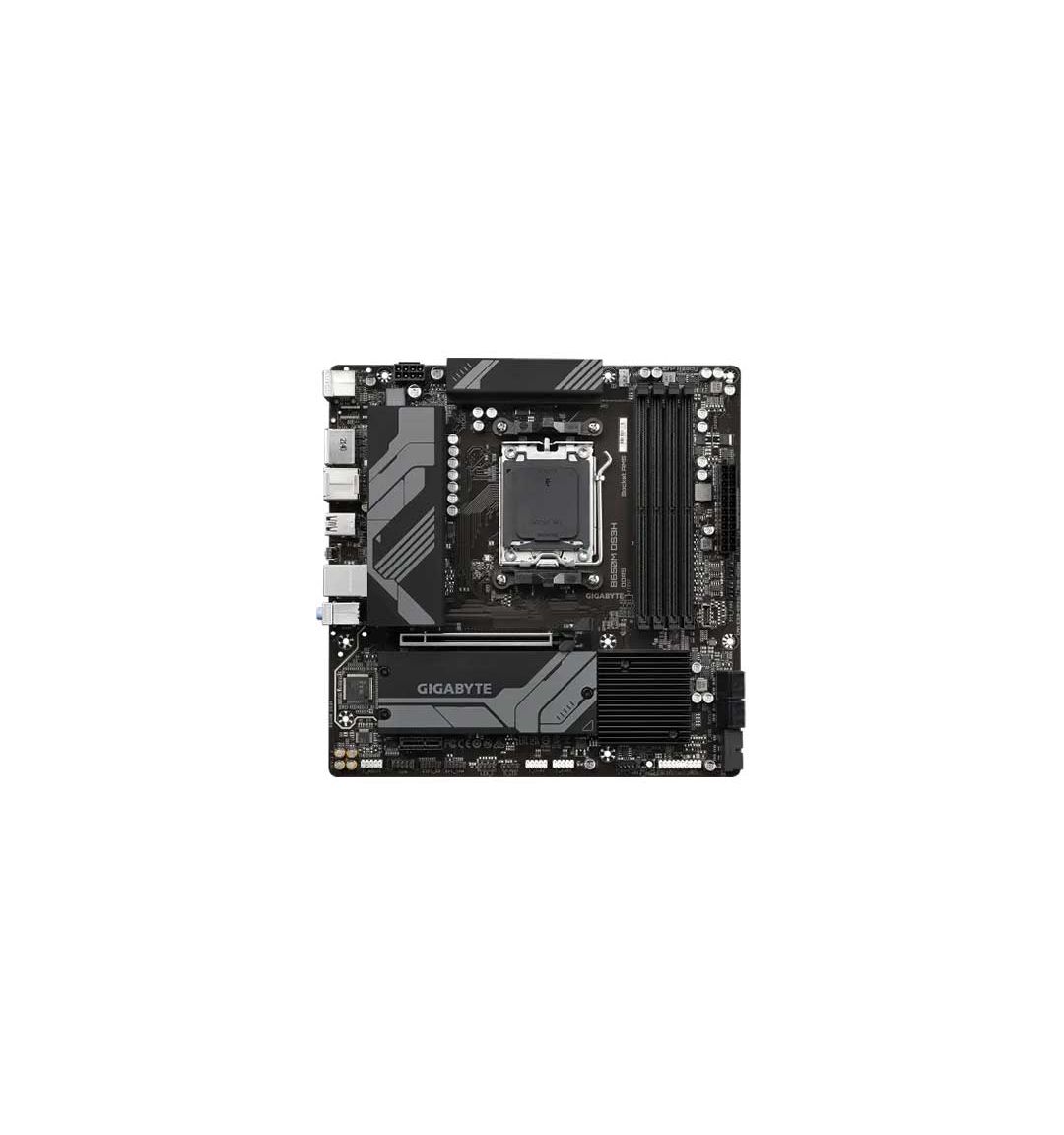

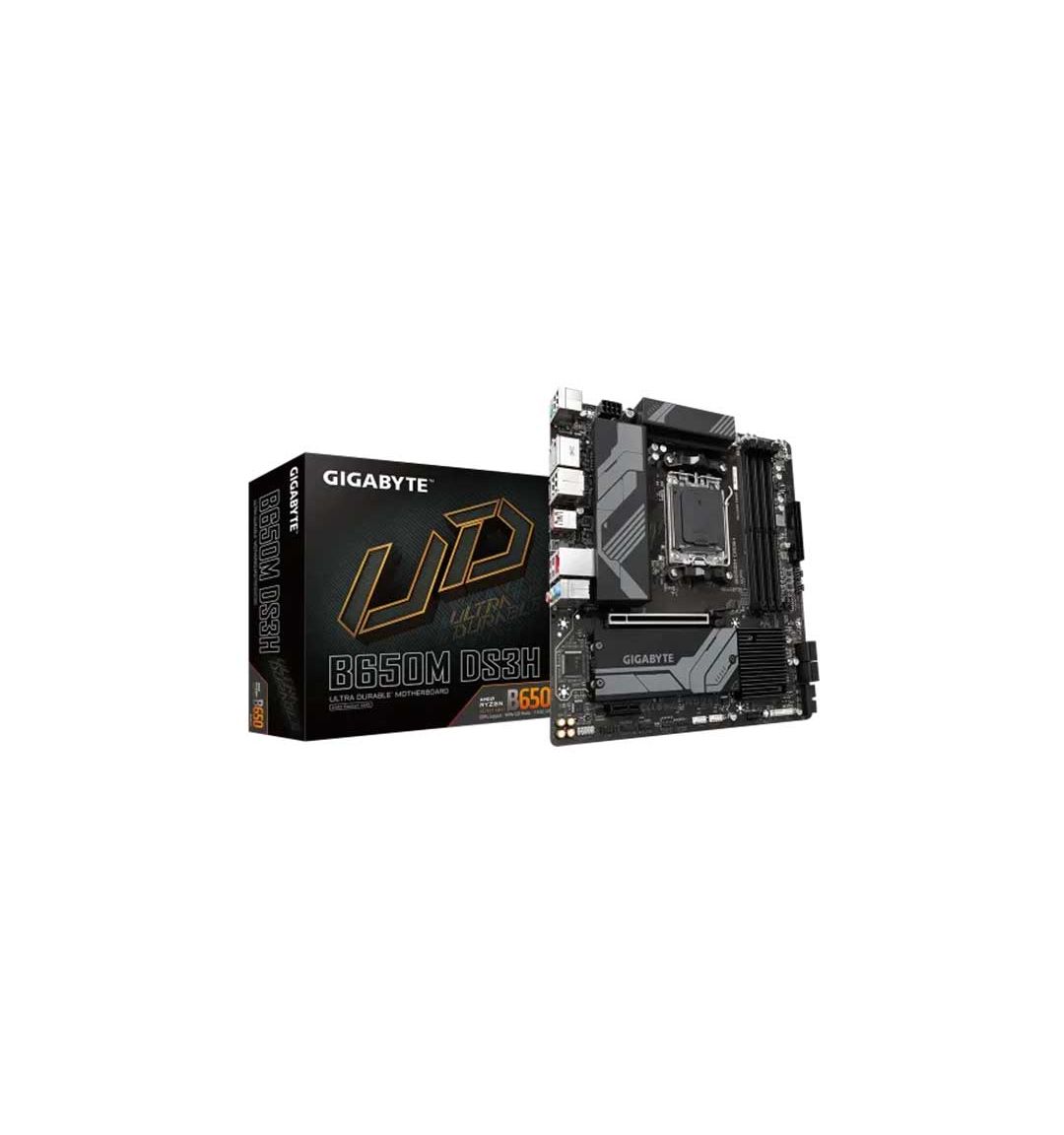

GIGABYTE B650M DS3H DDR5 AMD AM5 Micro-ATX Motherboard
Please sign in so that we can notify you about a reply
GIGABYTE B650M DS3H Specification
| Basic Information | |
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen 8000 & 7000 Series Processors |
| Chipset | AMD B650 |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| Expansion Slots | |
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
| Memory | |
| Type | DDR5 |
| Slots | 4 DIMMs |
| Supported Memory | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules |
| Maximum Memory | 128GB |
| Graphics | |
| Graphics | ntegrated Graphics Processor: 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. Support for up to 3 displays at the same time |
| Connector & Ports | |
| HDMI | 1x HDMI |
| Display Port (s) | 2 x DisplayPorts |

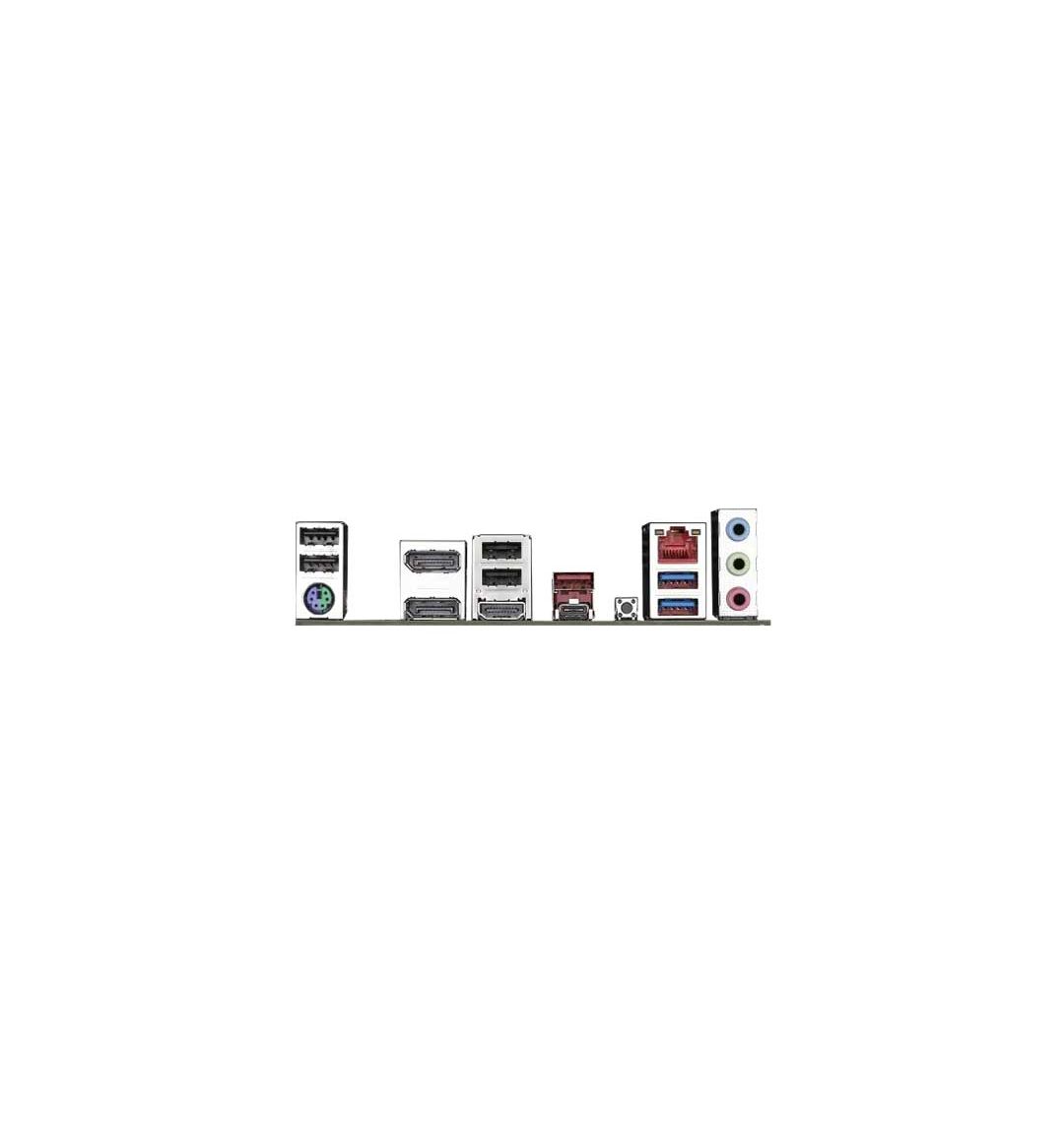

| USB (s) | CPU: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel CPU + USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel Chipset: 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports available through the internal USB headers |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Supported Storage | CPU: 2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors |
| RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Audio | 3 x Audio jacks |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| Others | |
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Warranty Information | |
| Manufacturing Warranty | 3 Years |
GIGABYTE B650M DS3H DDR5 AMD AM5 Motherboard: A Powerful and Versatile Choice
GIGABYTE B650M DS3H DDR5 AMD AM5 Motherboard is a high-performance motherboard designed to meet the needs of both casual users and avid gamers. With its advanced features and cutting-edge technology, this motherboard offers a seamless and efficient computing experience. In this product description, we will explore the key features of the GIGABYTE B650M DS3H DDR5 AMD AM5 Motherboard, discuss why it is a great choice for users, and provide information on where to purchase it.
Key Features
1. DDR5 Memory Support
The GIGABYTE B650M DS3H DDR5 AMD AM5 Motherboard supports the latest DDR5 memory technology, which offers significant improvements in speed and bandwidth compared to its predecessors. With DDR5 support, users can experience faster data transfer rates, smoother multitasking, and enhanced overall system performance.
2. AMD AM5 Socket
This motherboard is equipped with the AMD AM5 socket, which is specifically designed to accommodate the latest AMD processors. The AM5 socket ensures optimal compatibility and allows users to take full advantage of the powerful performance offered by AMD processors.
3. Versatile Expansion Slots
The GIGABYTE B650M DS3H DDR5 AMD AM5 Motherboard features a range of expansion slots, including PCIe 4.0 x16, PCIe 3.0 x16, PCIe 3.0 x1, and M.2 slots. These slots provide ample room for adding additional components such as graphics cards, storage devices, and networking cards, allowing users to customize their system according to their specific needs.
4. High-Speed Connectivity
With multiple USB 3.2 Gen 1 and USB 2.0 ports, users can enjoy high-speed data transfer and seamless connectivity with various peripherals. The motherboard also includes HDMI and DisplayPort outputs, enabling users to connect their systems to high-resolution displays for an immersive visual experience.
5. Advanced Cooling Solutions
To ensure optimal thermal performance, the GIGABYTE B650M DS3HP DDR5 AMD AM5 Motherboard is equipped with advanced cooling solutions. These include dedicated heatsinks, heat pipes, and fan headers, which effectively dissipate heat and maintain stable operating temperatures even during intense gaming sessions or CPU-intensive tasks.
Why Choose the GIGABYTE B650M DS3H DDR5 AMD AM5 Motherboard?
The GIGABYTE B650M DS3H DDR5 AMD AM5 Motherboard is an excellent choice for both casual users and gamers who seek a reliable and high-performance motherboard. Here are some reasons why this motherboard stands out:
- Powerful Performance: With support for DDR5 memory and the latest AMD processors, this motherboard delivers exceptional performance for demanding tasks, including gaming, content creation, and multimedia editing.
- Versatility: The motherboard's expansion slots and connectivity options allow users to customize their systems according to their specific needs. Whether it's adding a powerful graphics card or expanding storage capacity, the GIGABYTE B650M DS3H DDR5 AMD AM5 Motherboard offers flexibility and room for growth.
- Advanced Cooling: The advanced cooling solutions implemented in this motherboard ensure efficient heat dissipation, preventing overheating and maintaining system stability even under heavy workloads.
- Reliability: GIGABYTE is a reputable brand known for producing high-quality and durable motherboards. The B650M DS3H DDR5 AMD AM5 Motherboard is no exception, offering long-lasting performance and reliability.
Where to Buy
The GIGABYTE B650M DS3H DDR5 AMD AM5 Motherboard is available for purchase at Nexus, a trusted online retailer for computer components and accessories. Visit Nexus to explore their wide range of products and take advantage of their competitive prices and excellent customer service.
In conclusion, the GIGABYTE B650M DS3H DDR5 AMD AM5 Motherboard is a powerful and versatile choice for users seeking a high-performance motherboard. With its advanced features, DDR5 memory support, and reliable performance, this motherboard is suitable for both casual users and gamers. Visit Nexus to get your hands on this exceptional motherboard and elevate your computing experience.
