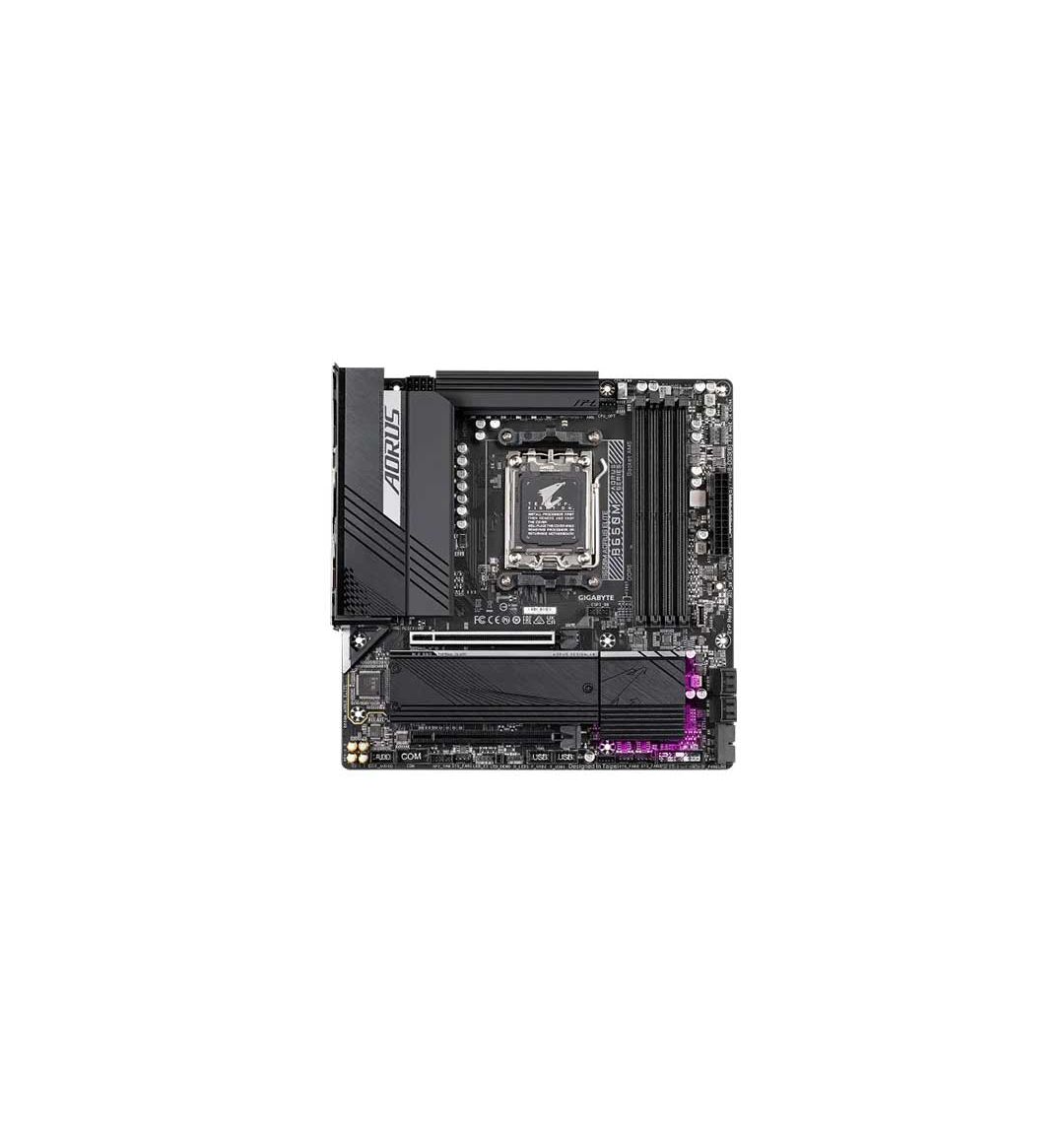

Gigabyte B650M AORUS ELITE DDR5 AMD Motherboard
SPECIFICATION
| Supported CPU | AMD Socket AM5, Support For: AMD Ryzen™ 7000 Series Processors |
| Chipset | AMD B650 |
| Memory | Support For DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/S Memory Modules 4 X DDR5 DIMM Sockets Supporting Up To 128 GB (32 GB Single DIMM Capacity) Of System Memory Dual Channel Memory Architecture Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules Support For AMD EXtended Profiles For Overclocking (AMD EXPO™) And Extreme Memory Profile (XMP) Memory Modules |
| Graphics | 1 X DisplayPort, Supporting A Maximum Resolution Of 3840x2160@144 Hz * Support For DisplayPort 1.4 Version And HDR. 1 X HDMI Port, Supporting A Maximum Resolution Of 4096x2160@60 Hz * Support For HDMI 2.1 Version And HDCP 2.3. ** Support Native HDMI 2.1 TMDS Compatible Ports. |
| Slots | CPU: 1 X PCI Express X16 Slot, Supporting PCIe 4.0 And Running At X16 (PCIEX16) * For Optimum Performance, If Only One PCI Express Graphics Card Is To Be Installed, Be Sure To Install It In The PCIEX16 Slot. Chipset: 1 X PCI Express X16 Slot, Supporting PCIe 4.0 And Running At X4 (PCIEX4) |
| Supported Storage | CPU: 1 X M.2 Connector (Socket 3, M Key, Type 25110/2280 PCIe 5.0* X4/X2 SSD Support) (M2A_CPU) * Actual Support May Vary By CPU. 1 X M.2 Connector (Socket 3, M Key, Type 22110/2280 PCIe 4.0 X4/X2 SSD Support) (M2B_CPU) Chipset: 4 X SATA 6Gb/S Connectors RAID 0, RAID 1, And RAID 10 Support For NVMe SSD Storage Devices RAID 0, RAID 1, And RAID 10 Support For SATA Storage Devices |
| LAN | Realtek® 2.5GbE LAN Chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-Channel * You Can Change The Functionality Of An Audio Jack Using The Audio Software. To Configure 7.1-Channel Audio, Access The Audio Software For Audio Settings. Support For S/PDIF Out |
| USB Port | 1 X USB Type-C® Port On The Back Panel, With USB 3.2 Gen 2 Support 2 X USB 3.2 Gen 2 Type-A Ports (Red) On The Back Panel CPU + USB 2.0 Hub: 4 X USB 2.0/1.1 Ports On The Back Panel |
| Internal I/O Ports | 1 X 24-Pin ATX Main Power Connector 1 X 8-Pin ATX 12V Power Connector 1 X CPU Fan Header 1 X Water Cooling CPU Fan Header 3 X System Fan Headers 1 X System Fan/Water Cooling Pump Header 2 X Addressable LED Strip Headers 2 X RGB LED Strip Headers 1 X CPU Cooler LED Strip/RGB LED Strip Header 2 X M.2 Socket 3 Connectors 4 X SATA 6Gb/S Connectors 1 X Front Panel Header 1 X Front Panel Audio Header 1 X USB Type-C® Header, With USB 3.2 Gen 2x2 Support 1 X USB 3.2 Gen 1 Header 2 X USB 2.0/1.1 Headers 1 X Serial Port Header 1 X THB_U4 Add-In Card Connector 1 X Trusted Platform Module Header (For The GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 Module Only) 1 X Reset Button 1 X Reset Jumper |

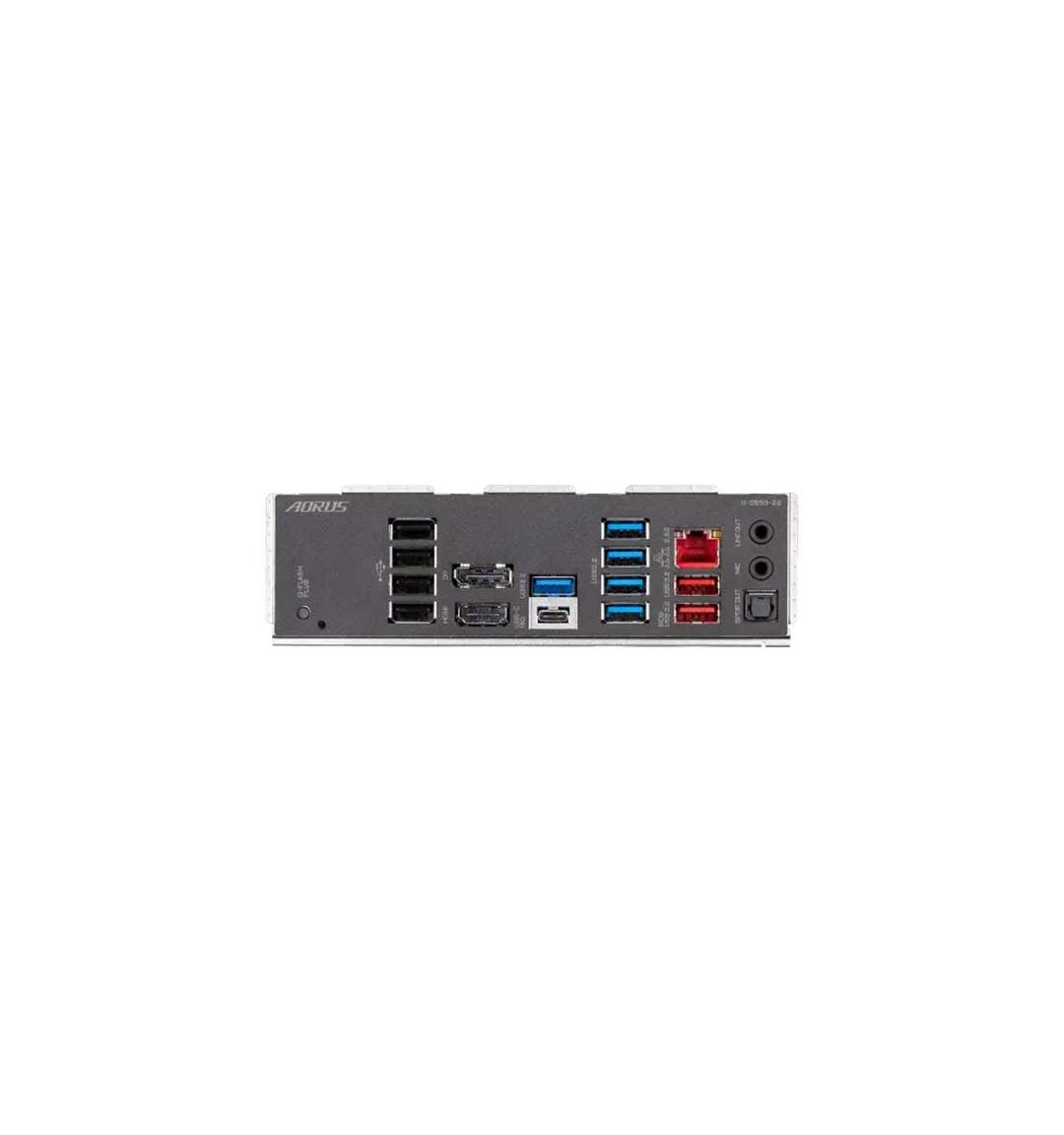

| External I/O Ports | 1 X Q-Flash Plus Button 1 X DisplayPort 1 X HDMI Port 1 X USB Type-C® Port, With USB 3.2 Gen 2 Support 2 X USB 3.2 Gen 2 Type-A Ports (Red) 5 X USB 3.2 Gen 1 Ports 4 X USB 2.0/1.1 Ports 1 X RJ-45 Port 1 X Optical S/PDIF Out Connector 2 X Audio Jacks |
| DIMENSIONS | 24.4cm X 24.4cm |
| Form Factor | Micro ATX |
| BIOS | 1 X 256 Mbit Flash Use Of Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Special Features | Support For GIGABYTE Control Center (GCC) * Available Applications In GCC May Vary By Motherboard Model. Supported Functions Of Each Application May Also Vary Depending On Motherboard Specifications. Support For Q-Flash Support For Q-Flash Plus |
| HDMI | 1 X HDMI Port |
| Others | I/O Controller: ITE® I/O Controller Chip Voltage Detection Temperature Detection Fan Speed Detection Water Cooling Flow Rate Detection Fan Fail Warning Fan Speed Control Operating System Support For Windows 11 64-Bit Support For Windows 10 64-Bit Bundled Software Norton® Internet Security (OEM Version) LAN Bandwidth Management Software |
Warranty: 03 Years
Nexus will be your first choice If you want to buy Gigabyte B650M AORUS ELITE Motherboard in Bangladesh Because we sell only Gigabyte-authorized original Motherboard. So you are at the right place to buy the right Gigabyte Motherboard at the lowest price in Bangladesh.
Nexus Offers you Gigabyte B650M AORUS ELITE Motherboard at the best price in Bangladesh, which is your budget-friendly Motherboard. Do you want to know what is the price of a Gigabyte B650M AORUS ELITE Motherboard? and where you can get a Gigabyte Motherboard at the lowest price in BD? Yes, it is Nexus. Gigabyte B650M AORUS ELITE Motherboard is now available at Nexus, So Don’t Think more to buy Gigabyte B650M AORUS ELITE Motherboard.
Brand:
Gigabyte
