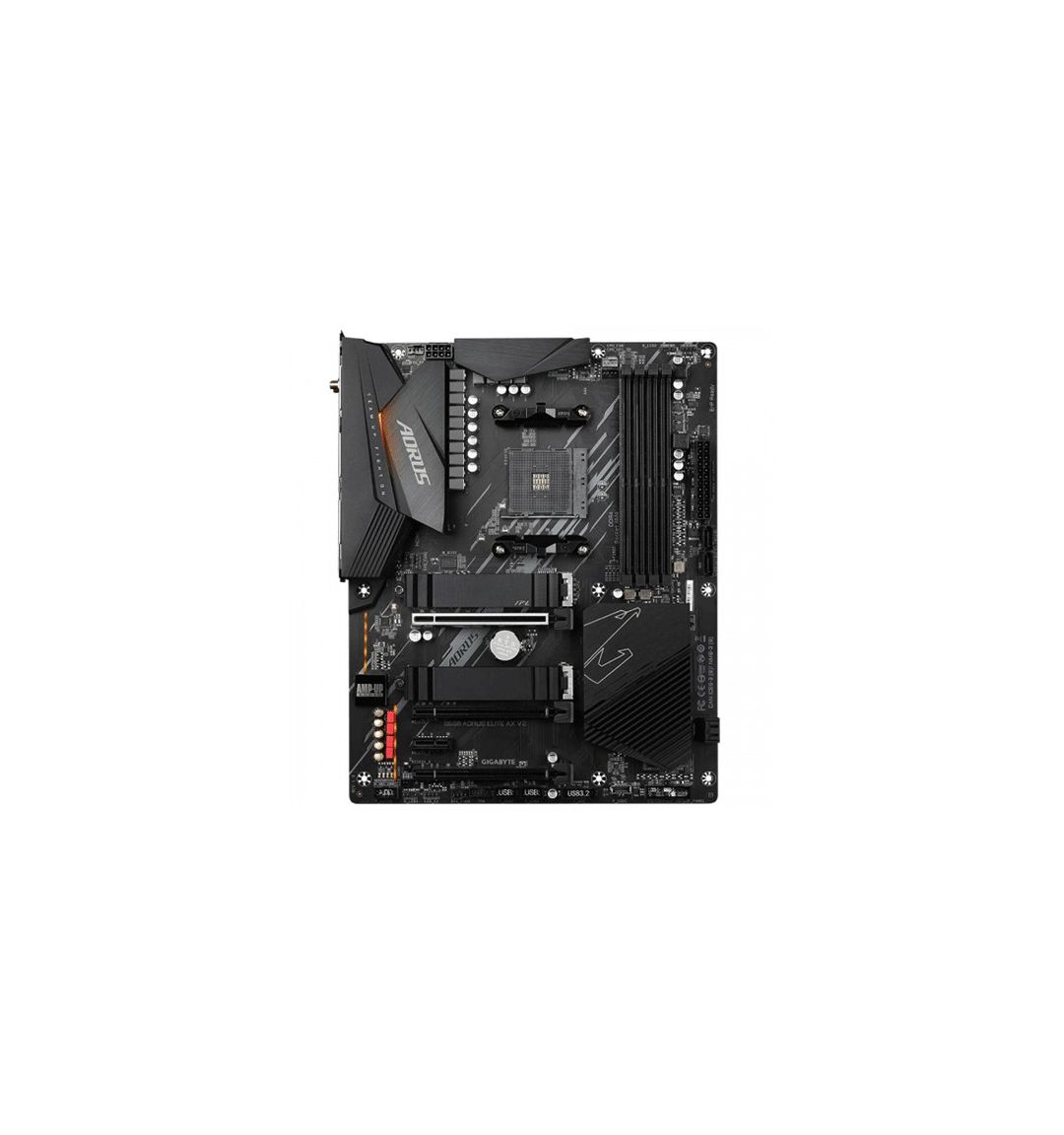

Gigabyte B550 Aorus Elite AX V2 AM4 ATX Motherboard
Save 13%
Please sign in so that we can notify you about a reply
Gigabyte B550 Aorus Elite AX V2 Motherboard
SPECIFICATION
| Supported CPU | AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors |
| Chipset | AMD B550 |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | ATX Form Factor: 30.5cm x 24.4cm |
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode - 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset: - Supporting PCIe 3.0 x2 mode 1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset: - Supporting PCIe 3.0 x1 mode 1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset: - Supporting PCIe 3.0 x1 mode |
| M.2 Socket | 1 x M.2 connector (M2A_CPU), integrated with the CPU, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: - 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs - New Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated into the Chipset, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: - Supporting SATA and PCIe 3.0 x4/x2 SSDs |
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz |
| Display Port (s) | 1 x DisplayPort, supporting a maximum resolution of 5120 x 2880 @60 Hz |
| USB (s) | CPU: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports on the back panel Chipset: 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header 1 x USB 3.2 Gen 1 port on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports on the back panel Chipset + USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbit/ 1 Gbit/ 100 Mbit) |
| Wireless Communication module | Intel Wi-Fi 6 AX200 WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/ 5 GHz Dual-Band BLUETOOTH 5 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated with the CPU, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: - 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs - New Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated with the Chipset, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: - Supporting SATA and PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors, integrated with the Chipset: - Support for RAID 0, RAID 1, and RAID 10 |
| Audio | Realtek ALC1200 codec High Definition Audio 2/ 4/ 5.1/ 7.1-channel Support for S/PDIF Out |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x CPU cooler LED strip/RGB LED strip header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x front panel header 1 x front panel audio header 1 x USB Type-C port, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) |
Warranty: 03 Years
Nexus will be your first choice If you want to buy Gigabyte B550 Aorus Elite AX V2 Motherboard in Bangladesh Because we sell only Gigabyte-authorized original Motherboard. So you are at the right place to buy the right Gigabyte Motherboard at the lowest price in Bangladesh.
Nexus Offers you Gigabyte B550 Aorus Elite AX V2 Motherboard at the best price in Bangladesh, which is your budget-friendly Motherboard. Do you want to know what is the price of the Gigabyte B550 Aorus Elite AX V2 Motherboard? and where you can get a Gigabyte Motherboard at the lowest price in BD? Yes, it is Nexus. Gigabyte B550 Aorus Elite AX V2 Motherboard is now available at Nexus, So Don’t Think more to buy Gigabyte B550 Aorus Elite AX V2 Motherboard.
Brand:
Gigabyte
