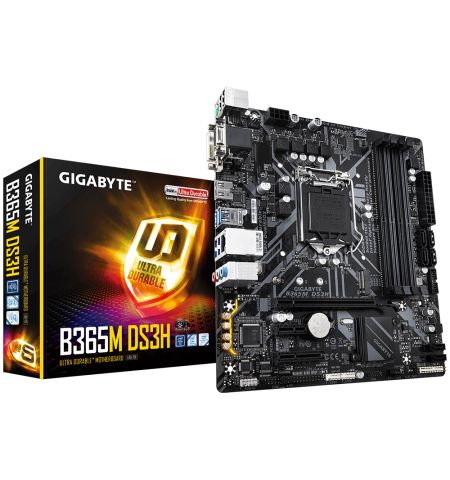

Gigabyte B365M DS3H DDR4 8th/9th Gen Intel LGA1151 Socket Motherboard

Gigabyte B365M DS3H DDR4 8th/9th Gen Intel LGA1151 Socket

Gigabyte B365M DS3H, CPU Sockets- LGA1151, Chipset- Intel B365 Express, Supported CPU- 9th/8th Generation Intel Core i9 / i7 / i5 / i3 / Pentium / Celeron Processors, Memory Type- DDR4, Memory MHz- 2666/ 2400/ 2133MHz, Memory Channel- Dual Channel, Memory Slot- 4, Memory Max.- 64GB, Optane Memory Support- Yes, Graphic- Integrated Graphics, PCI Express Slot- 1 x PCI Express x16 slot, running at x16, 1 x PCI Express x4 slot, 1 x PCI Express x1 slot, Storage Interface- 6Gb/s, M.2 Slot- 1 x M.2 Socket 3 (type 2242/2260/2280 SATA and PCIe x4/x2 SSD support), LAN Chipset- Realtek GbE LAN, LAN Speed (Mbps)- 10/100/1000Mbps, Audio Chipset- Realtek ALC887, Audio Channel- 2/4/5.1/7.1-channel, USB Port- 6 x USB3.1 Gen 1, 6 x USB2.0, VGA Port- 1, DVI Port- 1, HDMI Port- 1, SATA Port- 6 x SATA, BIOS Type- 2 x 128 Mbit flash, BIOS Model- AMI UEFI BIOS, BIOS Version- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0, Supported Operating System- Windows 10, Form Factor- Micro ATX, RaidSupport - 0,1,5,10, Special Features- Ultra Durable motherboard with GIGABYTE 8118 Gaming LAN, PCIe Gen3 x4 M.2, 7 colors RGB LED strips support, Anti-Sulfur Resistor, Smart Fan 5, DualBIOS, CEC 2019 ready, Dual Channel Non-ECC Unbuffered DDR4, New Hybrid Digital PWM Design, High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting, Ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface, RGB FUSION supports RGB LED strips in 7 colors, GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management, CEC 2019 Ready, Save the Power as Easy as One Click, Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP, Anti-Sulfur Resistors Design, Ultra Durable 15KV Surge LAN Protection, Intel Optane Memory Ready, GIGABYTE UEFI DualBIOS, Others- 1 x M.2 Socket 3, Intel Optane Memory Ready, 1 x CPU fan header, 2 x system fan headers, 1 x RGB LED strip header, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 1 x Trusted Platform Module (TPM) header, 1 x serial port header, 1 x parallel port header, 1 x Clear CMOS jumper, 3 x audio jacks, Warranty- 3 Years
