Gigabyte A520M H AMD DDR4 Micro ATX Motherboard
Save 18%
Please sign in so that we can notify you about a reply
Gigabyte A520M H DDR4 Motherboard
SPECIFICATION
| Brand | Gigabyte |
| Model | Gigabyte A520M H |
| Chipset Brand | AMD |
| Chipset | AMD A520 |
| Form Factor | Micro ATX Form Factor; 24.4cm x 20.5cm |
| Supported CPU | AMD Socket AM4, support for: AMD Ryzen 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors |
| Memory Type | DDR4 |
| Memory | 1. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory 2. Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3. Dual channel memory architecture. 4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules * ECC memory (ECC mode) support varies by CPU 5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules 6. Support for Extreme Memory Profile (XMP) memory modules. |
| Onboard Graphics | Integrated Graphics Processor: 1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. |
| Expansion Slot | CPU: 1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 1. 2 x PCI Express x1 slots, supporting PCIe 3.0 |
| Supported Storage | CPU: 1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) Chipset: 1. 4 x SATA 6Gb/s connectors 2. Support for RAID 0, RAID 1, and RAID 10 |
| LAN | Realtek GbE LAN chip (1 Gbps/100 Mbps) |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| USB Port | CPU: 1. 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 1. 2 x USB 3.2 Gen 1 ports available through the internal USB header 2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Ports | 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x chassis intrusion header 1 x Clear CMOS jumper |

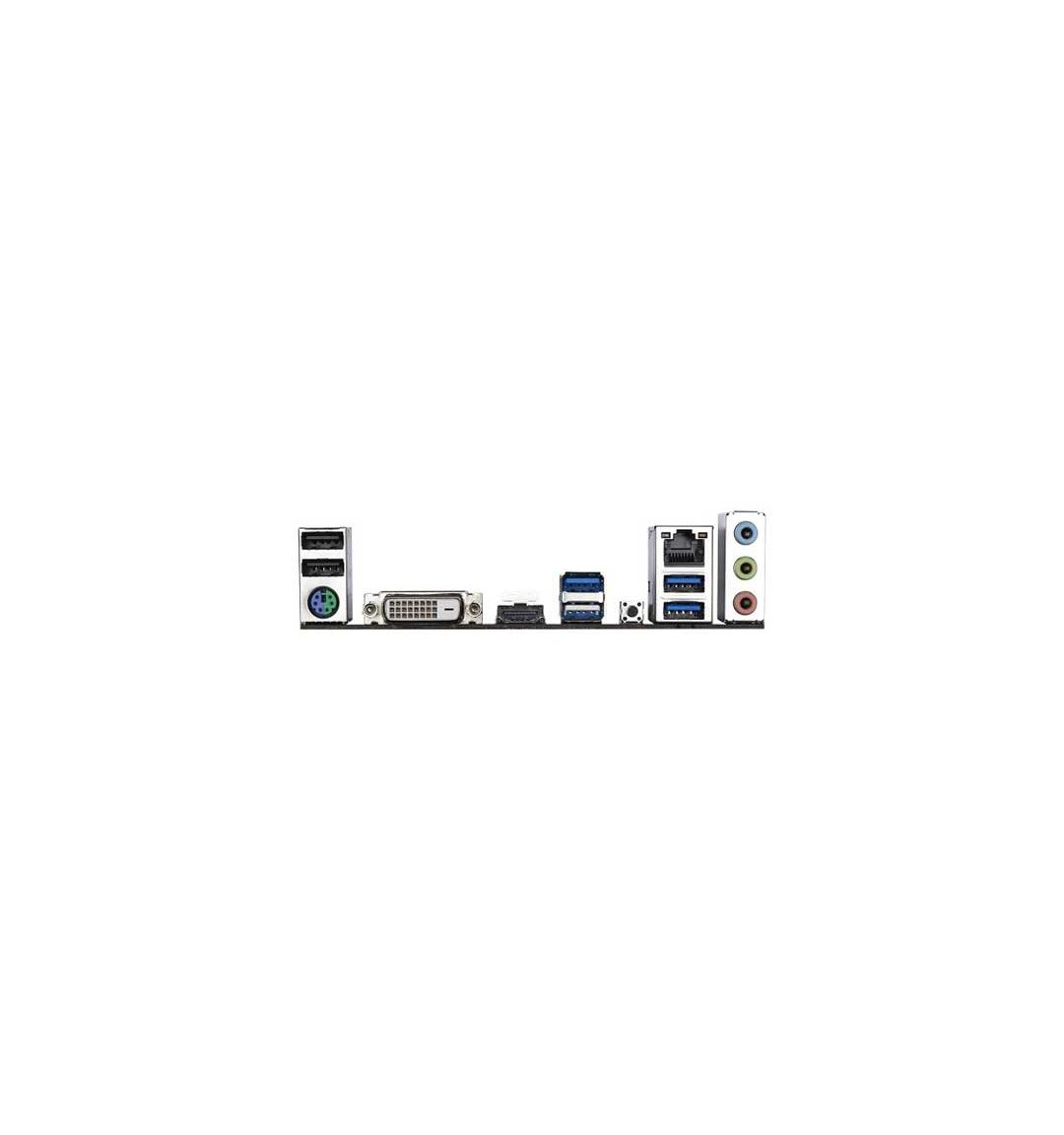

| Back Panel Connectors | 1 x PS/2 keyboard/mouse port
1 x DVI-D port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x Q-Flash Plus button 1 x RJ-45 port 3 x audio jacks |
| Supported Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Warranty Information | |
| Warranty | 3 years |
Nexus will be your first choice If you want to buy Gigabyte A520M H Motherboard in Bangladesh, Because we sale only GIGABYTE authorized original Motherboard. So you are at the right place to buy right Gigabyte Motherboard at the lowest price in Bangladesh.
Nexus Offers you Gigabyte A520M H Motherboard at the best price in Bangladesh, which is your budget-friendly Motherboard. Do you want to know what is the price of Gigabyte A520M H Motherboard? and where you can get Gigabyte Motherboard at lowest price in BD? Yes, it is Nexus. Gigabyte A520M H Motherboard now available at Nexus, So Don’t Think more to buy Gigabyte A520M H Motherboard.
