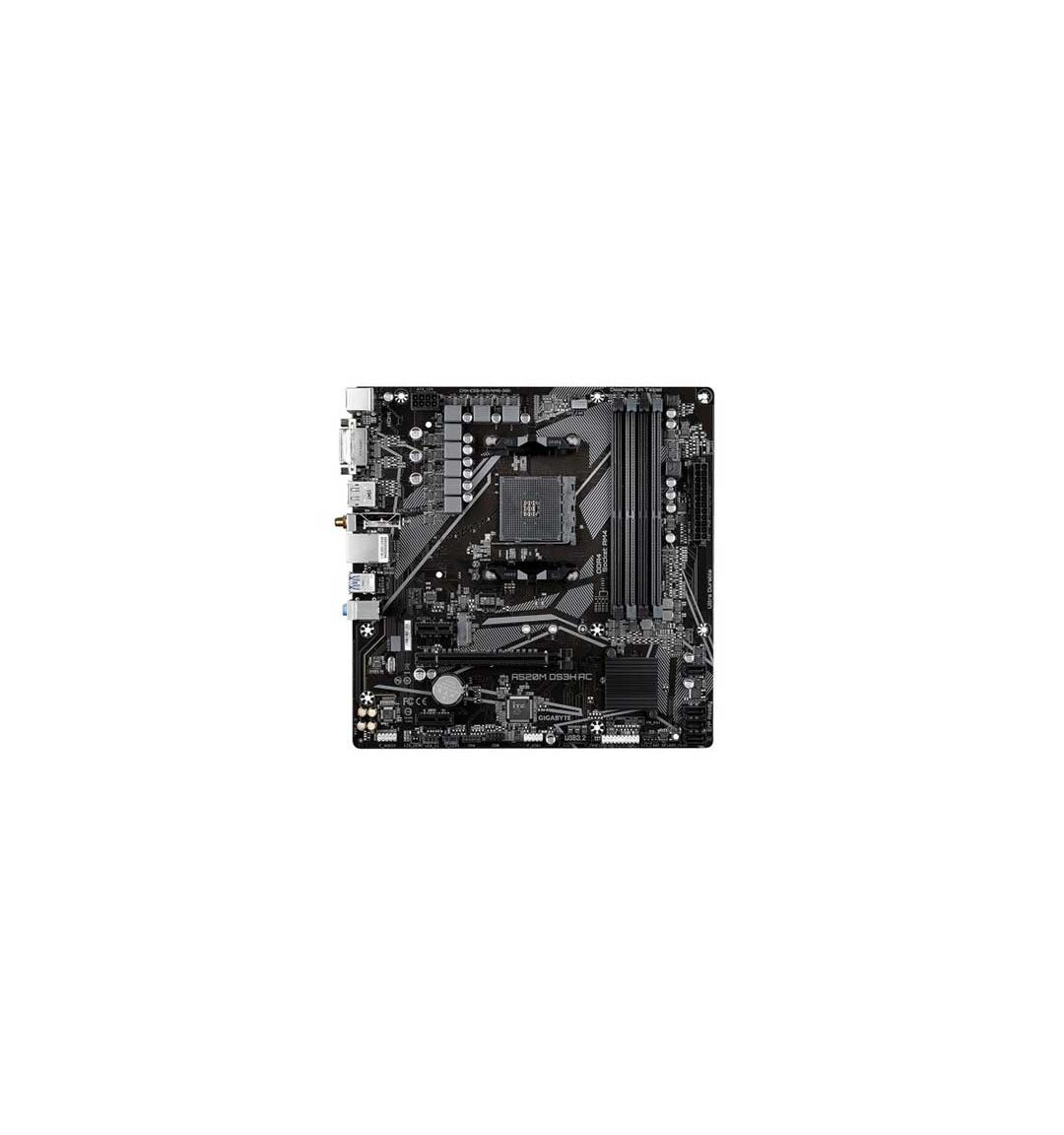

Gigabyte A520M DS3H AC AMD Wi-Fi 5 DDR4 Micro ATX Motherboard
Save 11%
Please sign in so that we can notify you about a reply
Gigabyte A520M DS3H AC DDR4 Motherboard
SPECIFICATION
| Brand | Gigabyte |
| Model | Gigabyte A520M DS3H AC |
| Chipset Brand | AMD |
| Chipset | AMD A520 |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Supported CPU | AMD Socket AM4, support for: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors |
| Memory Type | DDR4 |
| Memory | 1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory. 2.AMD Ryzen 5000 G-series / Ryzen 5000 Series/ 3rd Generation AMD Ryzen processors: Support for DDR4 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3. 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 4. Dual channel memory architecture. 5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules 6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules 7. Support for Extreme Memory Profile (XMP) memory modules. |
| Onboard Graphics | Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 2.1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. 3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. |
| Expansion Slot | CPU: 1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 1. 2 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2) |
| Supported Storage | CPU: 1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) Chipset: 1. 4 x SATA 6Gb/s connectors 2. Support for RAID 0, RAID 1, and RAID 10 |
| LAN | Realtek GbE LAN chip (1 Gbps/100 Mbps) |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| Wireless | Intel Dual Band Wireless-AC 3168 (For PCB rev. 1.0, 1.2, 1.3) 1. WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band 2. BLUETOOTH 4.2 3. Support for 11ac wireless standard and up to 433 Mbps data rate Intel Wireless-AC 9260 (For PCB rev. 1.1) 1. WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band 2. BLUETOOTH 5.1 3. Support for 11ac 160MHz wireless standard and up to 1.73 Mbps data rate AzureWave Wi-Fi AW-CB304NF (Realtek RTL8821CE) (For PCB rev. 1.4) 1. WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band 2. BLUETOOTH 4.2 3. Support for 11ac wireless standard and up to 433 Gbps data rate |
| USB Port | CPU: 1. 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 1. 2 x USB 3.2 Gen 1 ports available through the internal USB header 2. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button |

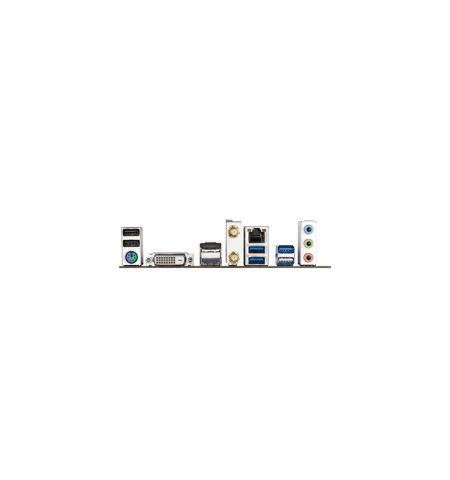

| Back Panel Connectors | 1 x PS/2 keyboard/mouse port
1 x DVI-D port 1 x DisplayPort 1 x HDMI port 2 x SMA antenna connectors (1T1R) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Supported Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Warranty Information | |
| Warranty | 3 years |
Nexus will be your first choice If you want to buy Gigabyte A520M DS3H AC Motherboard in Bangladesh, Because we sale only GIGABYTE authorized original Motherboard. So you are at the right place to buy right Gigabyte Motherboard at the lowest price in Bangladesh.
Nexus Offers you Gigabyte A520M DS3H AC Motherboard at the best price in Bangladesh, which is your budget-friendly Motherboard. Do you want to know what is the price of Gigabyte A520M DS3H AC Motherboard? and where you can get Gigabyte Motherboard at lowest price in BD? Yes, it is Nexus. Gigabyte A520M DS3H AC Motherboard now available at Nexus, So Don’t Think more to buy Gigabyte A520M DS3H AC Motherboard.
