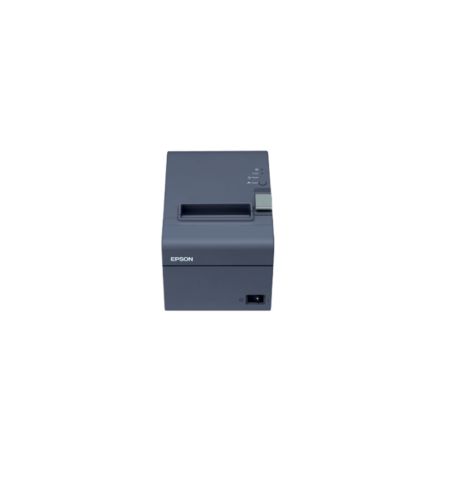

Epson TM-T82 POS Printer

Printing Method

Thermal line printing

Font

9 x 17 / 12 x 24, Hanji Font: 24 x 24, Thai Font: 9 x 24 / 12 x 24

Character Size (W x H):

0.88 x 2.13 mm / 1.25 x 3 mm, Hanji font: 3 x 3 mm, Thai font: 0.88 x 4.38 mm / 1.25 x 3 mm

Character Set

95 Alphanumeric, 18 set International, 128 x 43 pages (including user-defined page) Hanzi: Simplified Chinese: GB18030-2000: 28,553
Bar code: UPC-A, UPC-E, JAN13(EAN13), JAN8(EAN), CODE39, ITF, CODABAR(NW-7), CODE93, CODE128, GS1-128, GS1 DataBar
Two-dimensional code: PDF417, QRCode, MaxiCode, 2D GS1 DataBar, Composite Symbology

Characters Per Line

22.6cpi / 16.9cpi, Hanji Font: 7.8cpi, Thai Font: 22.6cpi / 16.9cpi

Data Buffer

4KB or 45bytes

Print Speed

Max 150mm/s

MTBF

360,000 hours

MCBF

60,000,000 lines

Duty Cycle

Printer Mechanism Life: 15 million lines

Auto Cutter Life: 1.5 million cuts

Dot Density

203 x 203 dpi

Width and Roll Diameter

79.5 ± 0.5 (W) × dia. 83.0; 57.5 ± 0.5 (W) × dia. 83.0

Power Consumption

Operating: Approx. 1.5A (Mean / Print ratio 18% with print pattern)
Standby: Approx. 0.1A (Mean)

Power Supply

External power supply (Model: PS-180)

Supply Voltage

DC + 24V ± 7%

Interface

Built-in USB + UIB (Serial or Parallel interface), Ethernet interface

EMI and Safety Standards

Oceania EMI AS/NZS CSPR22 Class A

Standard Accessories

Roll paper x 1 roll (for checking the initial movement of the printer), CD-ROM (Drivers, Utility Software, Manuals), Setup guide, Power button cover, Waterproof power button cover, Wall hanging bracket, Screws for wall hanging bracket, Rubber feet for vertical installation, Control panel sheet for vertical installation, 58-mm width paper guide, External power supply (Model: PS-180)

Dimension

199 x 140 x 146 mm

Weight

1.7kg

WARRANTY: 01 Year Warranty
