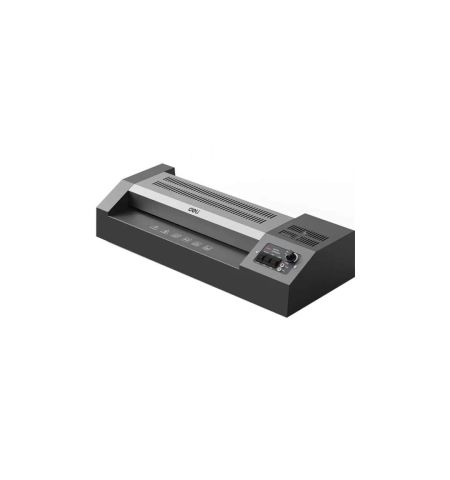

Deli ET115 A3 Laminating Machine
Please sign in so that we can notify you about a reply
Technical Specifications
| Attribute | Detailed Specification |
| Product Full Name | Deli ET115 A3 Laminating Machine |
| Model & Part Number | ET115 |
| Brand / Manufacturer | Deli |
| Product Type | Thermal Pouch Laminator |
| Maximum Laminating Format | A3 (Backward compatible with A4, A5, A6, and smaller items) |
| Maximum Laminating Width | 330 mm (13 inches) |
| Number of Rollers | 2 Rollers |
| Laminating Speed | 300 mm/min |
| Pouch Film Thickness Range | 80 – 125 Microns |
| Maximum Laminating Thickness | ≤0.5 mm |
| Heating System | Thermal / Hot Shoe Roller System |
| Pre-Heating / Warm-up Time | Approximately 3 – 5 Minutes |
| Anti-Jam / Jam Release Feature | Yes (Manual Reverse / Jam Release Mechanism) |
| Safety Features | Overheat Protection, Intelligent Temperature Control |
| Operating Noise Level | ≤50 dB (Low-Noise Operation) |
| Rated Power Consumption | 265W |
| Operating Voltage & Frequency | AC 220V – 240V, 50/60 Hz |
| Control Interface | Power Switch, Power / Ready Dual-Color LED Indicators |
| Housing Material | Heat-Resistant ABS Plastic Engineering Shell |
| Target Use Environments | General Offices, Classrooms, Print Kiosks, Photography Studios, Document Centers |
| Supported Media Types | A3 Posters, Diagrams, Certificates, Photographs, Instructional Flashcards, Menus, Badges |
| Dimensions | Approx. 430 mm × 110 mm × 65 mm |
| Net Weight | Approx. 1.5 kg – 1.8 kg |
| Package Contents | 1 × Deli ET115 A3 Laminating Machine, 1 × Power Cable, 1 × User Manual |
| Color | White and Gray |
| Warranty | 1 Year Service Warranty |
Product Description
The Deli ET115 is a versatile, wide-entry A3 thermal pouch laminator engineered to deliver smooth, bubble-free document preservation for corporate workplaces, educational environments, design studios, and commercial counters. Finished in a clean White and Gray aesthetic, this machine easily accommodates larger formats up to A3 size while retaining a low-profile desktop footprint that keeps workspaces neat and uncluttered.
Equipped with an efficient 2-roller thermal heating assembly, the Deli ET115 ensures balanced pressure and stable thermal dispersion from edge to edge across its full 330 mm feed opening. It operates at an optimal throughput speed of 300 mm per minute and supports laminating pouches from 80 to 125 microns up to a total composite thickness of 0.5 mm, providing dependable protection against moisture, dust, wrinkles, and physical abrasion for drawings, signage, certificates, and presentation slides.
Workflow continuity is streamlined by a fast 3 to 5-minute pre-heating cycle with clear dual-color LED indicators that signal when operating temperature is reached. To prevent disruptions caused by misfed sheets, the unit features an integrated manual jam release mechanism that allows users to quickly disengage the drive rollers and retrieve misaligned pouches without damaging the internal heating elements or original documents.
Operating below 50 dB, the machine ensures whisper-quiet performance suitable for quiet offices and study settings. Power consumption remains economical at 265W, supported by automatic thermal management safeguards. Backed by a 1-year service warranty, the Deli ET115 A3 Laminating Machine provides an accessible and reliable sealing solution for versatile document preservation.
