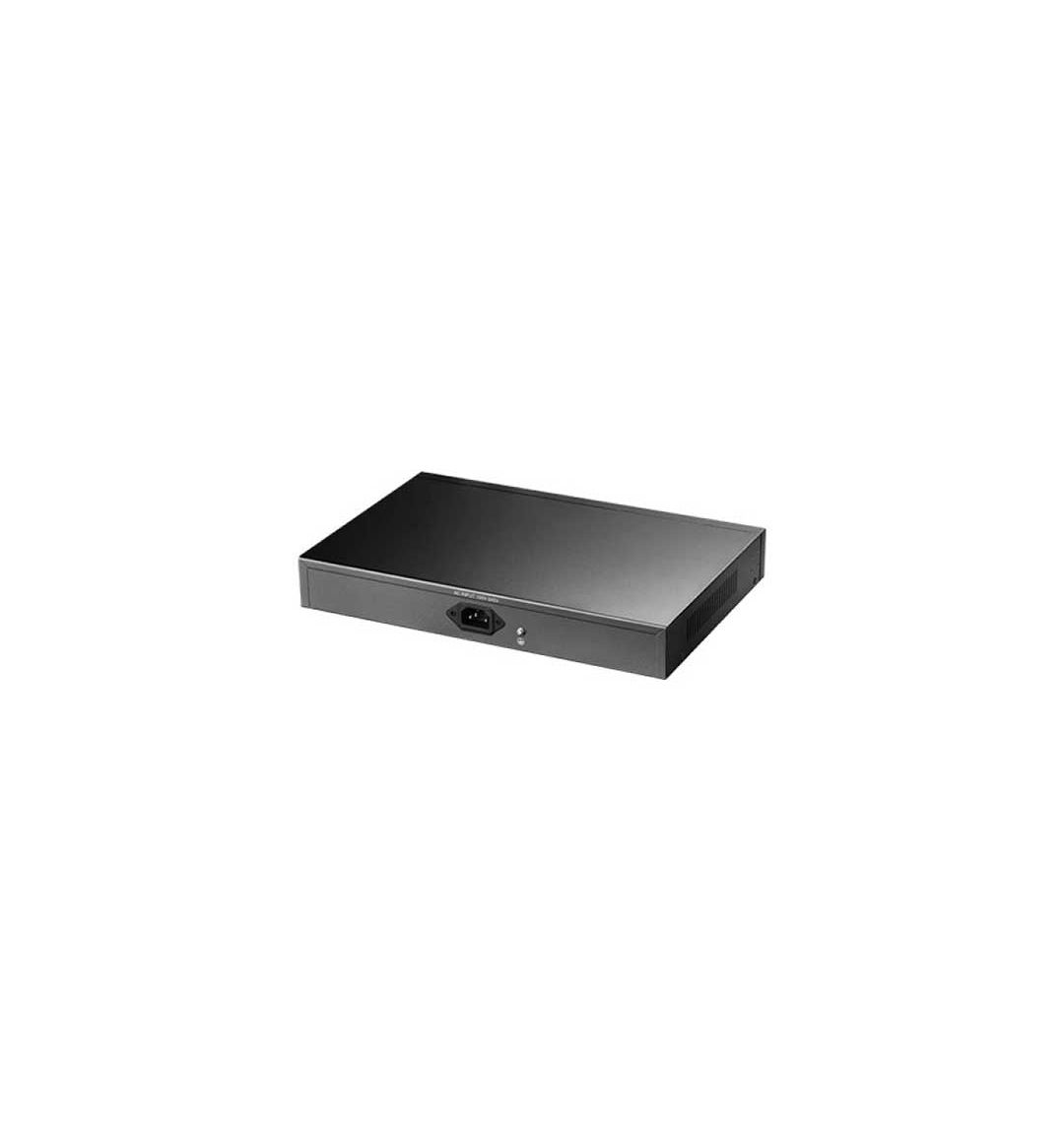

Cudy GS1018PS2 16-GbE PoE Switch with 2 Uplink GbE and 2 Uplink SFP
Save 6%
Please sign in so that we can notify you about a reply
Specification
| Interface | Physical Buttons: Default/Extend DIP switch 1.25G SFP Slots: 2 Gigabit RJ45 Ports: 2 Gigabit RJ45 PoE Ports: 16 Max Power on a Single PoE Port: 30W PoE Port Notes: PoE ports support 802.3at/af standards. Extend Mode Ports: #9~#16 LED: Power, Speed/Link/ACT of Each Ethernet Port, Extend Status Power Input: AC Inlet |
| Power | Power Methods: AC AC: 100-240V 50/60Hz Max Power Consumption: 200W Max Power Excluding PoE: 10W |
| Mechanical | Casing Material: Metal Installation: Desktop, Rackmount via Brackets |
| Weight | Product Weight: 1789 g (63.11 oz.) |
| Device Dimension | 320×207×44 mm 12.6×8.15×1.73 inches |
| Model Version | GS1018PS2 1.0 |
| Performance | Copper Speed and Distance: Cat. 3 or higher cable: 100 meters at 10 Mbps Cat. 5 or higher cable: 100 meters at 100 Mbps Cat. 5e or higher cable: 100 meters at Gigabit Cat. 5e or higher cable: 250 meters at 10 Mbps Copper Speed and Distance Note: 250-meter transmission is only available on the Extend Mode ports. MAC Address Table: 8192 Max Switching Capacity: 40 Gbps Max Forwarding Rate: 29.76 Mpps Packet Buffer: 3 Mbit |
| Reliability | Grounding Methods: Three-Prong Plug Lightning/Surge Protection: 4kV ESD Contact Protection: 6kV ESD Air Protection: 8kV Environment: Operating Temperature: -10~50 ℃ (14~122 ℉) Storage Temperature: -40~70 ℃ (-40~158 ℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing |
| Switching | 802.3 Protocols: 802.3i 10BASE-T 802.3u 100BASE-T 802.3ab 1000BASE-T 802.3z 1.25 Gbps over Fiber 802.3x Flow Control 802.3af PoE 802.3at PoE |
| Included in the Box | GS1018PS2 Power Cord Mounting Kit Installation Guide |
| Warranty | 1-Year Brand Warranty |
