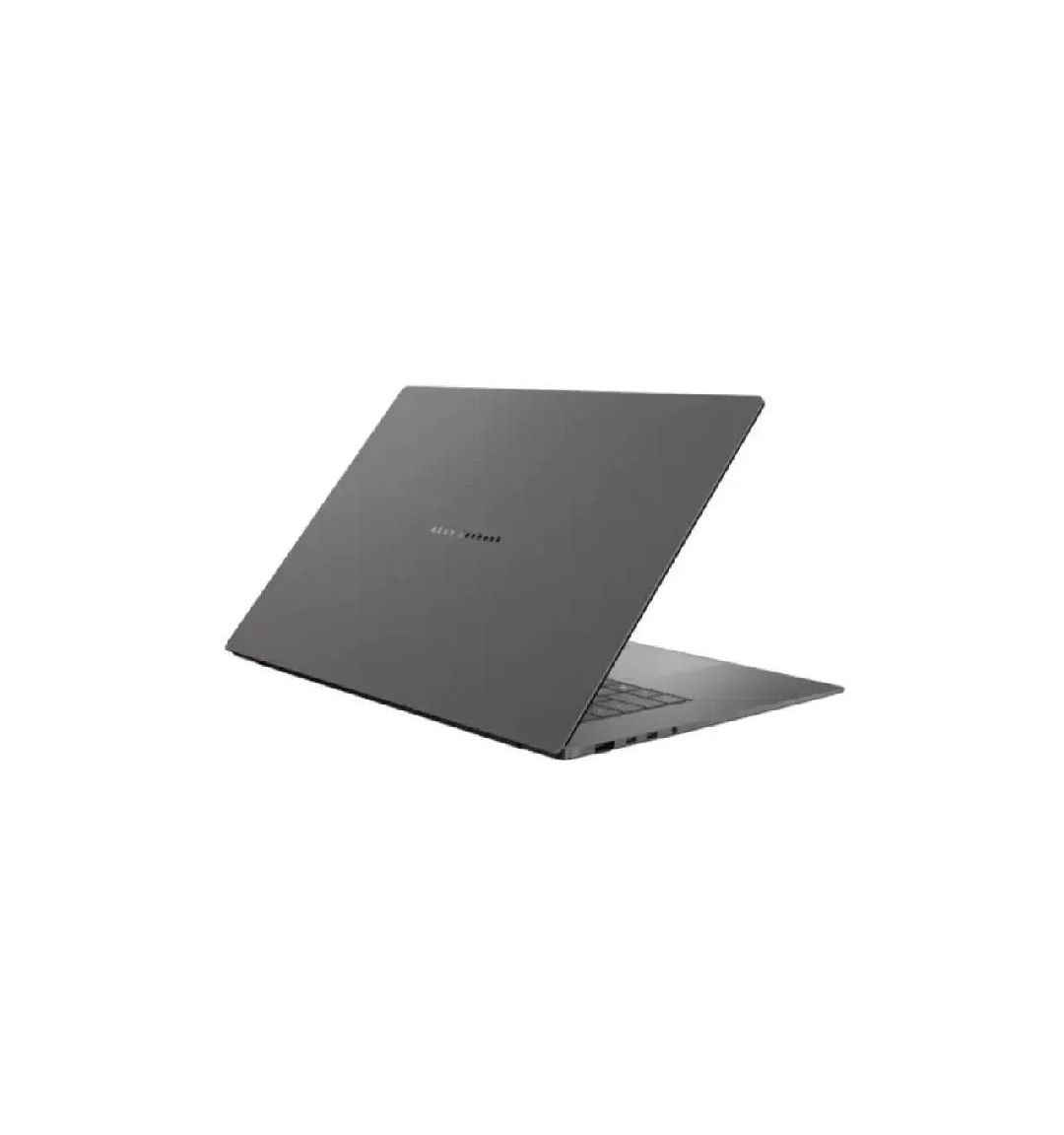

ASUS Zenbook S 16 OLED UM5606GA-SS134W Ryzen AI 7 445 16" Copilot+ PC
Please sign in so that we can notify you about a reply
Technical Specifications
| Attribute | Detailed Specification |
| Product Name | ASUS Zenbook S 16 OLED UM5606GA-SS134W |
| Model / Series | Zenbook S 16 OLED UM5606GA |
| Processor Brand | AMD |
| Processor Model | AMD Ryzen AI 7 445 |
| Processor Frequency | Base Clock 2.0 GHz, Max Turbo Frequency up to 4.60 GHz |
| Processor Core / Thread | 6 Cores (Zen 5 architecture) / 12 Threads |
| CPU Cache | 14 MB Cache |
| AI Processing Unit | AMD XDNA NPU (Up to 50 TOPS) |
| Screen Size | 16.0-inch |
| Display Panel Type | ASUS Lumina OLED Panel |
| Native Resolution | 3K (2880 x 1800) |
| Display Features | Glossy display, 16:10 aspect ratio, 100% DCI-P3 color gamut, 1,000,000:1 contrast ratio, VESA CERTIFIED Display HDR True Black 1000, 1.07 billion colors, PANTONE Validated, Anti-glare and low-reflection (AGLR) display, 70% less harmful blue light, TÃœV Rheinland-certified, SGS Eye Care Display, 90% screen-to-body ratio |
| Display Brightness | 500 nits Base, 1100 nits HDR Peak Brightness |
| Refresh Rate | 120Hz |
| Response Time | 0.2ms |
| System Memory (RAM) | 32GB Onboard (Non-removable) |
| RAM Type / Architecture | LPDDR5X (Dual-channel memory layout) |
| Storage Capacity | 1TB |
| Storage Interface Type | M.2 NVMe PCIe 4.0 x4 SSD |
| Graphics Controller | Integrated AMD Radeon 840M Graphics |
| Graphics Memory | Shared |
| Keyboard Layout Type | Backlit Chiclet Keyboard with 1.1mm key travel & Dedicated Copilot Key |
| Touchpad Architecture | Enlarged Precision Touchpad supporting smart gestures |
| Integrated Camera | FHD 1080p camera with IR function to support Windows Hello (with Privacy Shutter) |
| Audio Infrastructure | Built-in 6-speaker system (front-firing tweeters), Smart Amp Technology, Harman Kardon Premium audio tuning, AI Noise Canceling |
| I/O Ports & Interfaces | 2x USB 4.0 Gen 3 Type-C (Supports Display / Power Delivery up to 40Gbps), 1x USB 3.2 Gen 2 Type-A (Up to 10Gbps), 1x HDMI 2.1 TMDS, 1x SD 4.0 Card Reader, 1x 3.5mm Combo Audio Jack |
| Wireless Connectivity | Intel Wi-Fi 7 (802.11be) (Tri-band) 2*2 + Bluetooth 5.4 Wireless Card |
| Security Architecture | Firmware Trusted Platform Module (Firmware TPM), Microsoft Pluton security processor, Windows Hello Face Recognition, Camera Privacy Shutter |
| Operating System | Windows 11 Home |
| Built-in Software | MyASUS, ScreenXpert, GlideX, StoryCube, ASUS Recovery, ASUS OLED Care |
| Battery Infrastructure | 4-cell Lithium-Ion, 4S1P, 83WHrs |
| Power Supply Adapter | TYPE-C 68W AC Adapter (Output: 20V DC, 3.4A; Input: 100-240V AC universal) |
| Chassis Color | Antrim Gray |
| Structural Material | Premium Ceraluminum (ceramized aluminum alloy cover) & Aluminum Build |
| Physical Dimensions | 35.36 x 24.30 x 1.19 ~ 1.29 cm |
| Device Weight | 1.50 kg (with Battery) / 1.20 kg (without Battery) |
| Durability Certification | US MIL-STD 810H military-grade standard |
| Warranty Package | 2 Years International Brand Warranty (Battery covered for 1 Year) |
Product Description
The ASUS Zenbook S 16 OLED UM5606GA-SS134W represents a massive leap forward in ultra-premium design, introducing a chassis engineered from ASUS's proprietary Ceraluminum™ (a durable ceramized aluminum alloy cover) finished in an elegant Antrim Gray. Despite housing a massive 16-inch display framework, this laptop features a comically slim profile measuring just 1.19 cm thin and weighing an incredibly light 1.50 kg. Built like a tank to clear rigorous US MIL-STD 810H military-grade testing, the machine incorporates an ultra-slim vapor chamber and dual fans under a unique CNC-machined geometric cooling grille to manage heavy loads silently under 25 dB. Beneath its exterior is the groundbreaking AMD Ryzen AI 7 445 processor utilizing Zen 5 architecture, paired with an integrated AMD XDNA NPU delivering up to 50 TOPS of standalone local AI performance alongside an enormous 32GB of LPDDR5X RAM and a rapid 1TB NVMe PCIe 4.0 SSD.
The primary visual workspace is headlined by a mind-blowing 16.0-inch 3K (2880 x 1800) ASUS Lumina OLED display running a buttery-smooth 120Hz refresh rate. Boasting an expansive 16:10 aspect ratio and thin NanoEdge borders for a 90% screen-to-body layout, this anti-glare panel reaches an extraordinary 1100 nits of HDR peak brightness with a VESA Certified Display HDR True Black 1000 rating and 100% cinema-grade DCI-P3 color accuracy. To match the theater-class visuals, ASUS packed in a cinematic 6-speaker Harman Kardon sound system with front-firing tweeters that plunge you straight into games or media workflows. Rounded out by a high-capacity 83WHrs battery with 100W PD charging support, dual blistering-fast 40Gbps USB4 Type-C ports, bleeding-edge Wi-Fi 7 wireless, a full-size SD 4.0 card reader, and an FHD IR facial-recognition webcam, this ultrabook crafts an absolute benchmark for modern Copilot+ AI mobile workstations.
