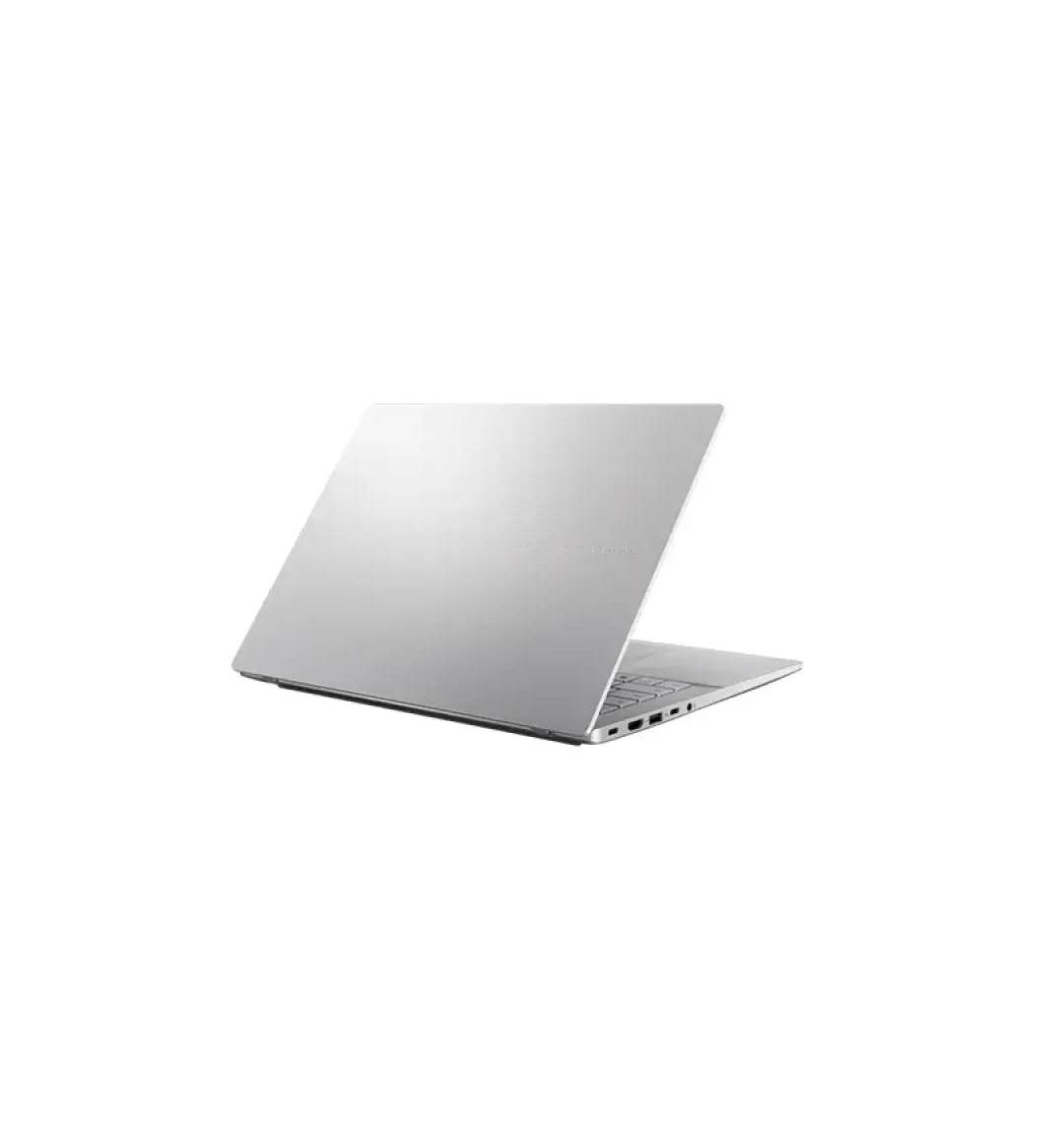

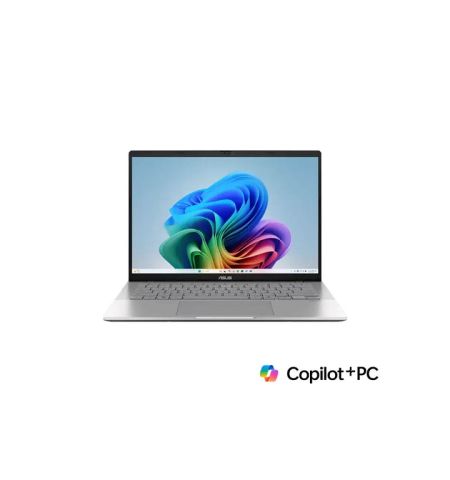

ASUS Vivobook S14 M3407HA-LY048W Ryzen 5 220 14" WUXGA Laptop
Please sign in so that we can notify you about a reply
Technical Specifications
| Attribute | Detailed Specification |
| Product Name | ASUS Vivobook S14 M3407HA-LY048W |
| Model / Series | Vivobook S14 M3407HA |
| Processor Brand | AMD |
| Processor Model | AMD Ryzen 5 220 |
| Processor Frequency | Base Clock 3.2GHz, Max Boost Clock up to 4.9GHz |
| Processor Core / Thread | 6 Cores / 12 Threads |
| CPU Cache | 22 MB Cache |
| AI Processing Unit | AMD XDNA NPU (Up to 16 TOPS) |
| Screen Size | 14.0-inch |
| Display Panel Type | IPS-level Panel |
| Native Resolution | WUXGA (1920 x 1200) |
| Display Features | LED Backlit, Anti-glare, 16:10 aspect ratio, 45% NTSC color gamut, 86% screen-to-body ratio, TÃœV Rheinland-certified |
| Display Brightness | 300 nits |
| Refresh Rate | 60Hz |
| System Memory (RAM) | 16GB Onboard |
| RAM Type / Architecture | DDR5 5600 MHz |
| Total Memory Slots | 1x Onboard + 1x DDR5 SO-DIMM slot (Max system expansion up to 32GB) |
| Storage Capacity | 1TB |
| Storage Interface Type | M.2 NVMe PCIe 4.0 x4 SSD |
| Graphics Controller | Integrated AMD Radeon Graphics |
| Graphics Memory | Shared |
| Keyboard Layout Type | Backlit Chiclet Keyboard with 1.7mm key travel & Dedicated Copilot Key |
| Touchpad Architecture | Precision touchpad |
| Integrated Camera | 1080p FHD IR WebCam with Camera Privacy Shutter (Supports Windows Hello face recognition) |
| Audio Infrastructure | Built-in Speakers & Array Microphone, Dolby Atmos certified, AI Noise Canceling |
| I/O Ports & Interfaces | 2x USB 3.2 Gen 1 Type-C (Supports display / power delivery), 2x USB 3.2 Gen 1 Type-A, 1x HDMI 2.1 TMDS, 1x 3.5mm Combo Audio Jack |
| Wireless Connectivity | Wi-Fi 6 (802.11ax) (Dual band) 2*2 + Bluetooth 5.3 Wireless Card |
| Security Architecture | Firmware Trusted Platform Module (Firmware TPM), BIOS Booting User Password Protection |
| Operating System | Windows 11 Home |
| Built-in Software | MyASUS, ScreenXpert, GlideX, CapCut |
| Battery Infrastructure | 4-cell Lithium-Ion, 4S1P, 70WHrs |
| Power Supply Adapter | TYPE-C 65W AC Adapter (Output: 20V DC, 3.25A; Input: 100-240V AC universal) |
| Chassis Color | Cool Silver |
| Structural Material | Aluminum & Plastic |
| Physical Dimensions | 31.52 x 22.34 x 1.59 ~ 1.79 cm |
| Device Weight | 1.40 kg (with Battery) / 1.15 kg (without Battery) |
| Durability Certification | US MIL-STD 810H military-grade standard |
| Warranty Package | 2 Years International Brand Warranty (Battery covered for 1 Year) |
Product Description
The ASUS Vivobook S14 M3407HA-LY048W is a premium, ultra-slim ultraportable engineered to elevate modern AI workloads, office multi-tasking, and student workflows. Dressed in a sophisticated Cool Silver aluminum and plastic hybrid finish, this machine measures just 1.59 cm thin. Built with resilience in mind, it comfortably clears the strict US MIL-STD 810H military-grade structural testing, keeping your hardware protected against everyday drops and transit bumps. Tipping the scales at a lightweight 1.40 kg, it offers true all-day freedom for professionals and commuters who are constantly on the move.
Under the hood lies the efficient AMD Ryzen 5 220 processor, pushing out 6 cores, 12 threads, and a 22MB cache with boost speeds peaking up to 4.9GHz. This Copilot+ configuration features an integrated AMD XDNA NPU capable of up to 16 TOPS, ensuring on-device AI tools and background processes operate efficiently. It comes loaded with 16GB of fast DDR5 memory, with an available expansion slot supporting configurations up to 32GB total. Storage is massive and rapid, driven by a 1TB M.2 NVMe PCIe 4.0 x4 SSD that provides instantaneous operating system boot-ups, quick program initializations, and deep storage archives.
The visual experience centers around a balanced 14-inch WUXGA (1920 x 1200) IPS-level display. Its 16:10 tall aspect ratio delivers added vertical space, drastically cutting down on horizontal and vertical scrolling inside coding tools or lengthy documents. The anti-glare screen puts out a crisp 300 nits of brightness and carries TÃœV Rheinland eye-care certification to shield your vision during marathon screen sessions. Video conferencing is crystal clear thanks to a 1080p FHD IR camera that pairs with Windows Hello facial recognition, backed up by a structural camera shield and AI-driven background noise isolation. A responsive backlit chiclet keyboard with 1.7mm key travel features a dedicated Windows Copilot key for sudden AI requests. Rounded out by a robust 70WHrs battery system, dual comprehensive Type-C ports, and Wi-Fi 6 wireless architecture, this ultraportable laptop handles hybrid assignments with zero friction.
