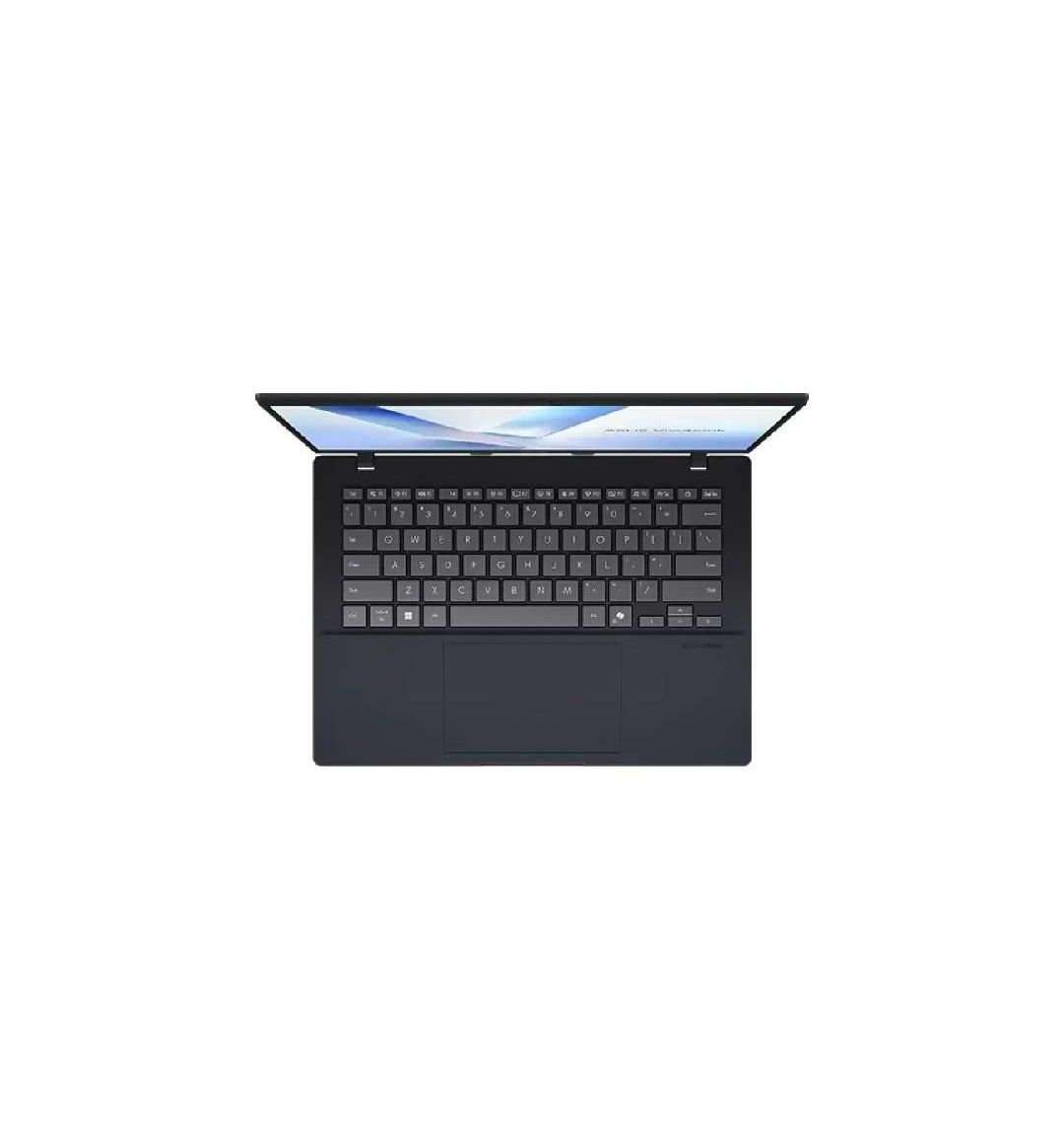

ASUS Vivobook 14 M1407KA-LY124W Ryzen AI 5 330 14" WUXGA Laptop
Please sign in so that we can notify you about a reply
Technical Specifications
| Attribute | Detailed Specification |
| Product Name | ASUS Vivobook 14 M1407KA-LY124W |
| Model / Series | Vivobook 14 M1407KA |
| Processor Brand | AMD |
| Processor Model | AMD Ryzen AI 5 330 |
| Processor Frequency | Base Clock 2.0 GHz, Max Turbo Frequency up to 4.50 GHz |
| Processor Core / Thread | 4 Cores / 8 Threads |
| CPU Cache | 12 MB Cache |
| AI Processing Unit | AMD XDNA NPU (Up to 50 TOPS) |
| Screen Size | 14.0-inch |
| Display Panel Type | IPS-level Panel |
| Native Resolution | WUXGA (1920 x 1200) |
| Display Features | LED Backlit, Anti-glare, 16:10 aspect ratio, 45% NTSC color gamut, 87% screen-to-body ratio |
| Display Brightness | 300 nits |
| Refresh Rate | 60Hz |
| System Memory (RAM) | 16GB Onboard |
| RAM Type / Architecture | DDR5 (Supports dual-channel configuration) |
| Total Memory Slots | 1x Onboard + 1x DDR5 SO-DIMM slot (Max system expansion up to 32GB) |
| Storage Capacity | 512GB |
| Storage Interface Type | M.2 NVMe PCIe 4.0 x4 SSD |
| Graphics Controller | Integrated AMD Radeon Graphics |
| Graphics Memory | Shared |
| Keyboard Layout Type | Backlit Chiclet Keyboard with 1.7mm key travel & Dedicated Copilot Key |
| Touchpad Architecture | Precision touchpad |
| Integrated Camera | FHD 1080p camera with IR function to support Windows Hello (with Privacy Shutter) |
| Audio Infrastructure | Built-in Speaker & Array Microphone, SonicMaster Technology, AI Noise Canceling |
| I/O Ports & Interfaces | 2x USB 3.2 Gen 1 Type-C (Supports DisplayPort / Power Delivery), 2x USB 3.2 Gen 1 Type-A, 1x HDMI 2.1 TMDS, 1x 3.5mm Combo Audio Jack |
| Wireless Connectivity | Wi-Fi 6 (802.11ax) (Dual band) 2*2 + Bluetooth 5.3 Wireless Card |
| Security Architecture | Firmware Trusted Platform Module (Firmware TPM), Windows Hello Face Recognition, MicroPluton security processor |
| Operating System | Windows 11 Home |
| Built-in Software | MyASUS, ScreenXpert, GlideX, StoryCube |
| Battery Infrastructure | 3-cell Lithium-Ion, 3S1P, 42WHrs |
| Power Supply Adapter | TYPE-C 65W AC Adapter (Output: 20V DC, 3.25A; Input: 100-240V AC universal) |
| Chassis Color | Quiet Blue |
| Structural Material | High-grade Plastic (LCD Cover, Top Case, and Bottom Case) |
| Physical Dimensions | 31.52 x 22.34 x 1.79 ~ 1.99 cm |
| Device Weight | 1.46 kg (with Battery) / 1.35 kg (without Battery) |
| Durability Certification | US MIL-STD 810H military-grade standard |
| Warranty Package | 2 Years International Brand Warranty (Battery covered for 1 Year) |
Product Description
The ASUS Vivobook 14 M1407KA-LY124W is an advanced, ultra-portable Copilot+ AI PC expertly tailored for students, fast-paced professionals, and creators requiring on-the-go smart performance. Encased in a beautiful Quiet Blue finish, this sleek 1.79 cm slim notebook delivers robust structural manufacturing excellence. It is heavily tested to survive real-world hazards, comfortably clearing strict US MIL-STD 810H military-grade structural testing against shocks, drop risks, and ambient pressure shifts. Tipping the scales at an incredibly light 1.46 kg, it handles regular campus or urban commutes with effortless mobility.
At the epicenter of its hardware setup is the cutting-edge AMD Ryzen AI 5 330 processor, configured with 4 computing cores and 8 optimization threads that push a maximum turbo frequency of 4.50 GHz. This advanced architecture features an integrated AMD XDNA NPU capable of delivering up to 50 TOPS of local AI processing power, running background optimization, image render filters, and automated tools with extreme autonomy. Backed by 16GB of onboard high-speed DDR5 memory (with an open SO-DIMM expansion slot supporting configurations up to 32GB total) and a quick-response 512GB M.2 NVMe PCIe 4.0 x4 SSD, the machine eliminates data lag and handles complex multitasking sequences without a stutter.
Visual interactions look stunning on the laptop's modern 14.0-inch WUXGA (1920 x 1200) IPS-level screen. The display is built with a workspace-optimized 16:10 aspect ratio, providing taller vertical space to display text rows and spreadsheet matrices without forcing endless manual scrolling. Pushing 300 nits of brightness with a high-efficiency anti-glare finish, it ensures reading comfort under complex overhead light grids. For premium web conferences, it features an upgraded FHD 1080p IR webcam with integrated Windows Hello biometric facial log-in and a built-in physical privacy shutter. Fitted with a backlit chiclet keyboard featuring a deep 1.7mm key travel and a dedicated Windows Copilot key, dual full-featured USB-C power delivery ports, and a stable Wi-Fi 6 wireless structure, this compact AI machine handles digital workloads with fluid efficiency.
