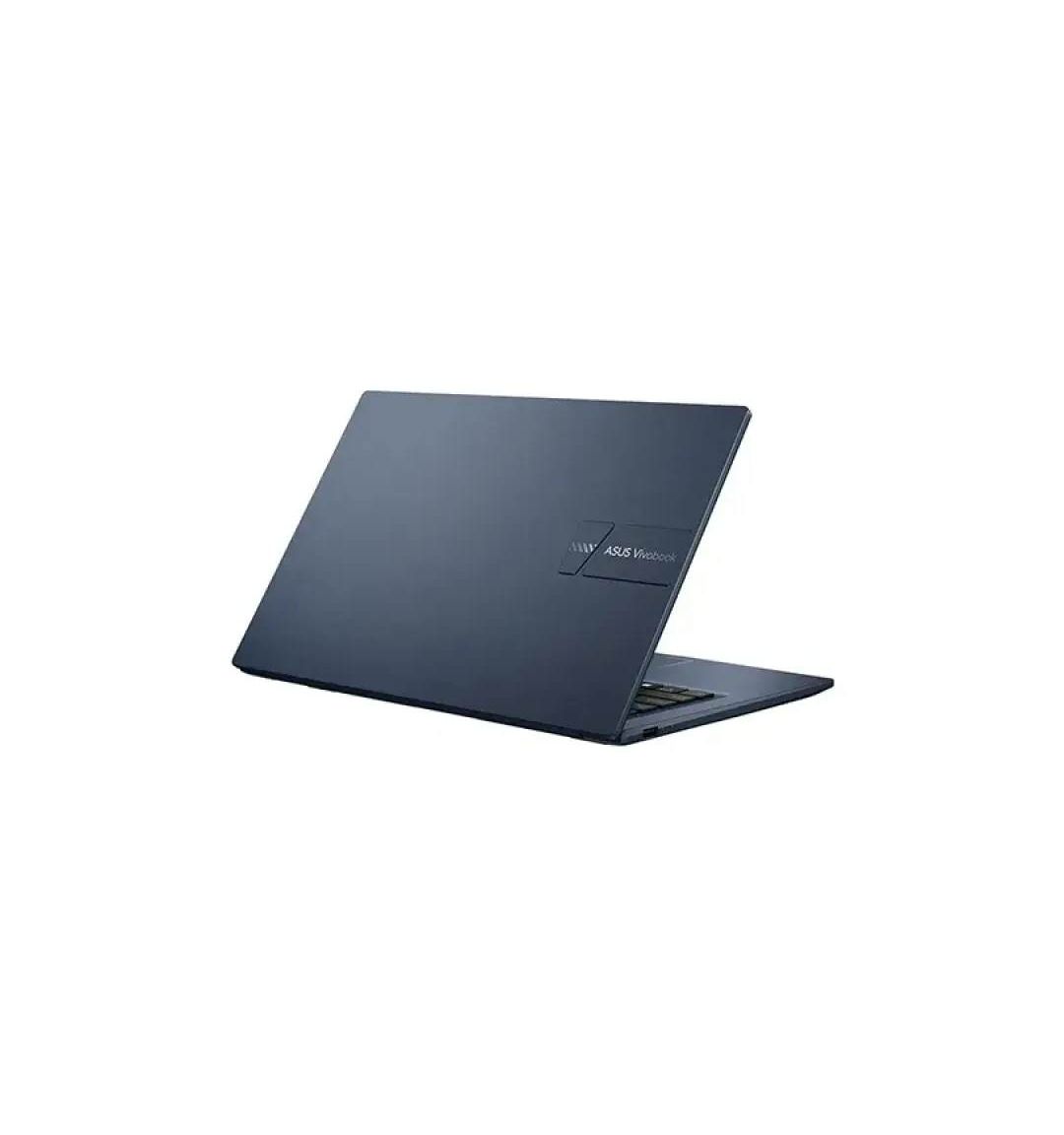

ASUS VivoBook 14 F1407CA-LY106W Intel Core Ultra 5 225H 14" WUXGA Laptop
Please sign in so that we can notify you about a reply
Technical Specifications
| Attribute | Detailed Specification |
| Product Name | ASUS VivoBook 14 F1407CA-LY106W |
| Model / Series | VivoBook 14 F1407CA |
| Processor Brand | Intel |
| Processor Model | Intel Core Ultra 5 225H |
| Processor Frequency | Performance-Core Base 2.10GHz, Max Turbo Frequency up to 4.90GHz |
| Processor Core / Thread | 14 Cores (4 Performance-cores, 8 Efficient-cores, 2 Low Power Efficient-cores) / 14 Threads |
| CPU Cache | 18 MB Intel Smart Cache |
| AI Processing Unit | Intel AI Boost NPU (Up to 13 TOPS) |
| Screen Size | 14.0-inch |
| Display Panel Type | IPS-level Panel |
| Native Resolution | WUXGA (1920 x 1200) |
| Display Features | LED Backlit, Anti-glare, 16:10 aspect ratio, 100% sRGB color gamut, 87% screen-to-body ratio, US MIL-STD 810H military-grade standard |
| Display Brightness | 400 nits Peak Brightness |
| Refresh Rate | 60Hz |
| System Memory (RAM) | 16GB Onboard |
| RAM Type / Architecture | DDR5 5600 MHz |
| Total Memory Slots | 1x Onboard + 1x DDR5 SO-DIMM slot (Max system expansion up to 32GB) |
| Storage Capacity | 1TB |
| Storage Interface Type | M.2 NVMe PCIe 4.0 x4 SSD |
| Graphics Controller | Integrated Intel Graphics (Intel Arc/Intel Graphics architecture) |
| Graphics Memory | Shared |
| Keyboard Layout Type | Backlit Chiclet Keyboard with 1.7mm key travel & Dedicated Copilot Key |
| Touchpad Architecture | Precision touchpad |
| Integrated Camera | FHD 1080p camera with IR function to support Windows Hello (with Privacy Shutter) |
| Audio Infrastructure | Built-in Speaker & Array Microphone, SonicMaster Technology, AI Noise Canceling |
| I/O Ports & Interfaces | 1x USB 2.0 Type-A, 2x USB 3.2 Gen 1 Type-A, 2x USB 3.2 Gen 1 Type-C (Supports display / power delivery), 1x HDMI 1.4, 1x 3.5mm Combo Audio Jack |
| Wireless Connectivity | Wi-Fi 6 (802.11ax) (Dual band) 1*1 + Bluetooth 5.2 Wireless Card |
| Security Architecture | Firmware Trusted Platform Module (Firmware TPM), Windows Hello Face Recognition, BIOS Booting User Password Protection |
| Operating System | Windows 11 Home |
| Built-in Software | MyASUS, ScreenXpert, GlideX |
| Battery Infrastructure | 3-cell Lithium-Ion, 3S1P, 42WHrs |
| Power Supply Adapter | TYPE-C 65W AC Adapter (Output: 20V DC, 3.25A; Input: 100-240V AC universal) |
| Chassis Color | Quiet Blue |
| Structural Material | High-grade Plastic (LCD Cover, Top Case, and Bottom Case) |
| Physical Dimensions | 31.52 x 22.34 x 1.79 cm |
| Device Weight | 1.46 kg (with Battery) / 1.35 kg (without Battery) |
| Durability Certification | US MIL-STD 810H military-grade standard |
| Warranty Package | 2 Years International Brand Warranty (Battery covered for 1 Year) |
Product Description
The ASUS VivoBook 14 F1407CA-LY106W is a cutting-edge, ultra-slim Copilot+ AI PC laptop configured to streamline heavy daily productivity, creative workflows, and advanced multi-tasking. Dressed in a sleek and distinctive Quiet Blue chassis, this portable device measures just 1.79 cm thick. It is explicitly engineered to survive demanding environments, successfully clearing rigid US MIL-STD 810H military-grade structural testing against shocks, vibration, and extreme temperature shifts. Weighing a mere 1.46 kg, it serves as an excellent high-performance companion for mobile professionals, software developers, and academic scholars.
Powering the device is the advanced Intel Core Ultra 5 225H processor, featuring an innovative hybrid design with 14 cores, 14 threads, and an 18MB cache that triggers high-efficiency boost thresholds up to 4.90GHz. It incorporates a specialized Intel AI Boost NPU delivering up to 13 TOPS for local AI acceleration, processing smart background features and virtual assistant queries instantly. Accompanying this processing power is 16GB of rapid on-board DDR5 memory (with an open SO-DIMM expansion slot supporting configurations up to 32GB total) alongside a massive 1TB M.2 NVMe PCIe 4.0 x4 SSD that loads heavy software assets, extensive datasets, and operational tools in the blink of an eye.
The visual interface is anchored by a high-fidelity 14.0-inch WUXGA (1920 x 1200) IPS-level display. Its tall 16:10 aspect ratio expands the vertical working environment, lowering necessary page navigation while working inside code repositories or dense spreadsheets. Pushing out an impressive 400 nits of peak brightness and covering a full 100% sRGB color gamut, it outputs brilliant, color-accurate visuals even under sharp office light fixtures. For premium hybrid collaboration, it features an upgraded FHD 1080p IR webcam with integrated Windows Hello facial detection and a physical structural privacy slider. Complete with a comfortable backlit chiclet keyboard with deep 1.7mm key travel, specialized Type-C dual-display charging ports, and stable Wi-Fi 6 wireless architecture, this machine handles advanced business or academic demands effortlessly.
