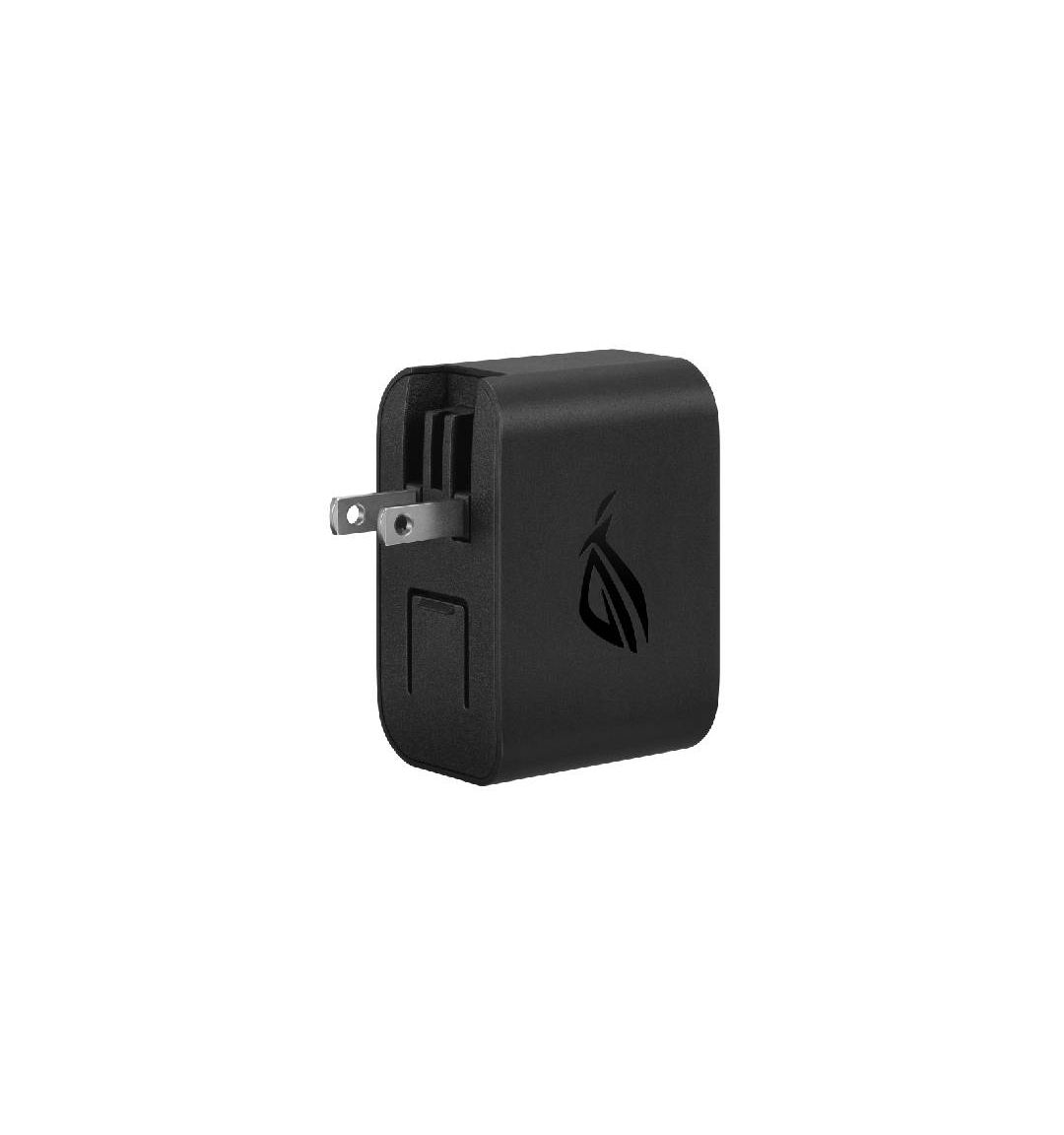

ASUS ROG AC65-03 Gaming Charger Dock
Please sign in so that we can notify you about a reply
Technical Specifications
| Attribute | Detailed Specification |
| Product Model | AC65-03 (Commercial Name: ROG Gaming Charger Dock) |
| Product Category | Universal / Multi-functional Gaming Charger Dock |
| Chassis Color | Rogue Black |
| Input Power | AC 100V – 240V ~ 50/60Hz, 1.5A |
| Total Combined Output | 65 Watts |
| USB-C Output Levels | Single Mode: 5.0V⎓3.0A (15W), 9.0V⎓3.0A (27W), 12.0V⎓3.0A (36W), 15.0V⎓3.0A (45W), 20.0V⎓3.25A (65.0W Max) PPS Mode: 5.0V–21.0V⎓3.0A (Max 63.0W) |
| USB-A Output Level | 5.0V⎓1.0A (5.0W Max for low-power accessories) |
| Dual Port Power Splitting | USB-C + USB-A: 60.0W (USB-C) + 5.0W (USB-A) |
| Fast Charging Protocols | Power Delivery 3.0, PD 2.0, & PD 3.0 PPS |
| Display Pass-Through | Built-in HDMI 2.0 port |
| Supported Video Formats | 4K UHD @ 60Hz | 1080p Full HD @ 120Hz |
| USB Hub Interface | 1 x USB Type-A 2.0 (Supports flash drives, mice, keyboards) |
| Device Compatibility | ROG Ally series, Type-C DisplayPort Alt-Mode laptops, tablets, smartphones |
| Dimensions (L x W x H) | 68.0 x 33.0 x 49.0 mm |
| Main Body Weight | 145 grams ($\pm$ 5g) |
| Bundled Cable Asset | 2.0 Meter (200 cm) Heavy-duty USB-C to USB-C Cable (Supports Power, Video, and Audio) |
| Package Contents | 1 x ROG Gaming Charger Dock, 1 x 2m USB-C Cable, Quick Start Guide, Warranty Card |
| Warranty Terms | 1 Year Limited Brand Warranty |
Product Description
The ASUS ROG Gaming Charger Dock (Model AC65-03) is an incredibly compact, GaN-powered, all-in-one charging and connectivity solution meticulously engineered to bridge handheld gaming consoles, laptops, and mobile phones directly to the big screen. Designed primarily as the ultimate travel companion for the ROG Ally ecosystem, this pocket-sized powerhouse consolidates the separate roles of a high-speed wall adapter, an HDMI display extension, and a USB hub into a single, lightweight 145-gram chassis. Whether you are pushing your handheld console to Turbo Mode in a hotel room or configuring a temporary remote workspace, this peripheral creates clean, clutter-free setups instantly.
Beneath its stealthy, matte-black exterior, the AC65-03 features highly efficient Power Delivery 3.0 charging logic. When utilizing the primary USB-C port standalone, it fires up to a full 65W of quick-charging current to easily fuel demanding notebooks, tablets, or smartphones. When dual ports are engaged, it splits power to route a dedicated 60W down the Type-C lane while reserving 5W for the USB-A port—ensuring your host device receives plenty of juice while powering external accessories.
The hub functionality is anchored by a high-grade HDMI 2.0 port, letting users seamlessly mirror content to a modern TV or desk monitor at smooth refresh rates—delivering crystal-clear 4K visual mapping at 60Hz or ultra-fluid 1080p tracking at 120Hz. Supported by a premium, heavily tested 2-meter USB-C cable capable of simultaneously routing audio, high-resolution video signals, and fast power, the ROG Gaming Charger Dock easily lets you plug in an external keyboard, mouse, or flash drive to effortlessly step up your desktop productivity and casual media streaming.
