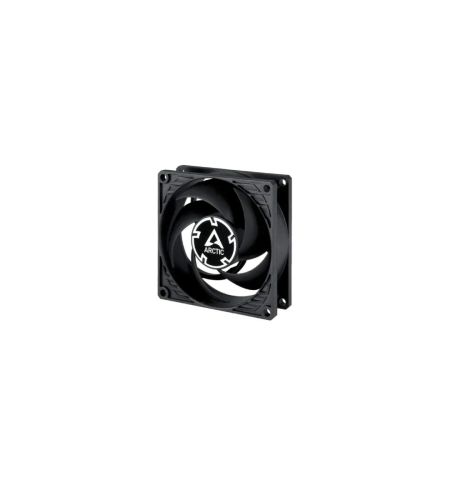

ARCTIC P8 Max 80 mm High-Speed PWM Cooling Fan (Black)
Please sign in so that we can notify you about a reply
Technical Specifications
| Attribute | Detailed Specification |
| Product Model / SKU | ARCTIC P8 Max / MPN: ACFAN00286A |
| Brand / Manufacturer | ARCTIC |
| Product Category | High-Performance High-Speed PWM Desktop & Server Cooling Fan |
| Fan Dimensions (L×W×H) | 80 mm × 80 mm × 25 mm |
| Net Weight | 84 g |
| Fan Speed Range | 500 – 5000 RPM (Controlled via Pulse Width Modulation / PWM) |
| Zero RPM Silent Mode | 0 RPM Silent Mode (Fan stops completely below 5% PWM signal) |
| Airflow Performance | 40.0 CFM / 67.96 $\text{m}^3/\text{h}$ |
| Static Air Pressure | 5.30 $\text{mmH}_2\text{O}$ (Optimized for dense heatsinks, radiators & server racks) |
| Noise Level | 0.6 Sone (Approx. 23–38 dBA depending on RPM profile) |
| Bearing Type | Fluid Dynamic Bearing (FDB) / Hydrodynamic Bearing |
| Operating Voltage | 12 V DC (Startup Voltage: 3.2 V DC) |
| Current / Power Draw | 0.19 A / Approx. 2.28 W max (Only 0.06 A at 3000 RPM) |
| Connector Interface | Standard 4-Pin PWM Connector |
| Cable Length | 400 mm Flexible Black Ribbon Cable |
| Operating Temperature | 0 °C to 40 °C |
| Mean Time to Failure (MTTF) | ~ 500,000 Hours |
| Chassis Compatibility | Small Form Factor (SFF) Cases, Mini-ITX Builds, 2U/3U Server Racks, GPU Shrouds, NAS Enclosures |
| Color Finish | Matte Black Frame and Blades |
| Warranty Policy | 6 Years Official ARCTIC Manufacturer Warranty |
Product Description
The ARCTIC P8 Max 80 mm High-Speed PWM Cooling Fan in Black is a compact, high-output cooling fan engineered for small form factor (SFF) PCs, Mini-ITX enclosures, high-density 2U/3U server chassis, and restricted heatsink environments. Built to deliver cooling performance within an 80 mm footprint, the P8 Max extends ARCTIC's renowned P-series lineup with an expanded rotational ceiling reaching up to 5000 RPM.
At the center of its performance is an aerodynamic closed-ring blade design optimized for high static pressure. Producing up to 5.30 mmH2O of focused static pressure and 40 CFM of airflow, the P8 Max pushes air through tightly packed heatsink fins, radiator meshes, dust filters, and cramped server chassis with ease. When running under idle or light computing loads, the fan's intelligent PWM controller enables a true 0 dB mode, bringing blade rotation to a complete stop whenever the PWM signal drops below 5% for silent operation.
Constructed with an advanced Fluid Dynamic Bearing (FDB), the P8 Max minimizes mechanical friction and internal vibration, ensuring quiet acoustic profiles at low speeds and sustained durability over long operating lifespans. It draws just 0.19A of current at peak output and features a startup voltage of 3.2V DC. Equipped with a 400 mm black cable and a standard 4-pin PWM header, the ARCTIC P8 Max delivers versatile installation and high-pressure cooling reliability backed by ARCTIC's 6-year warranty.
