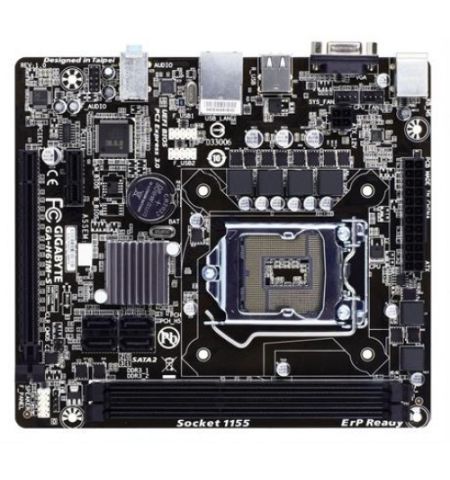

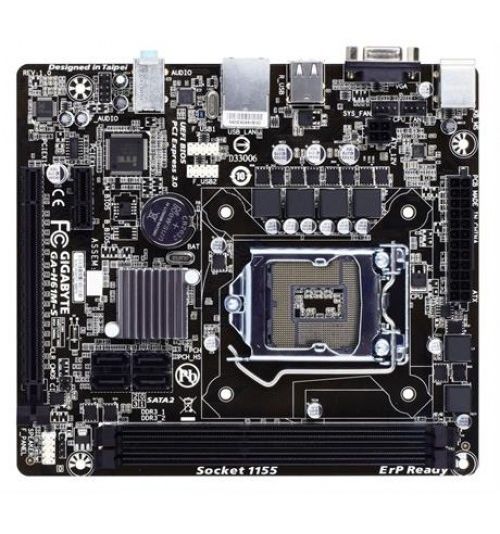

Gigabyte GA-H61M-S DDR3 LGA1155 Socket Motherboard
Please sign in so that we can notify you about a reply
Gigabyte GA-H61M-S DDR3 LGA1155 Socket
Gigabyte GA-H61M-S, CPU Sockets - LGA1155, Chipset - Intel H61 Express, Supported CPU - 3rd/2nd Generation Intel Core i7 / i5 / i3 / Pentium / Celeron processors, Memory Type - DDR3, Memory MHz - 1333/ 1066/ 800MHz, Memory Channel - Dual, Memory Slot - 2, Memory Max. - 16GB, Optane Memory Support - No, Graphic - Integrated Graphics, PCI Express Slot - 1 x PCI Express x16 slot, running at x16, 1 x PCI Express x1 slot, Storage Interface - 3Gb/s, LAN Chipset - Realtek GbE LAN, LAN Speed (Mbps) - 10/100/1000Mbps, Audio Chipset - Realtek ALC887, Audio Channel - 2/4/5.1/7.1-channel, USB Port - 8 x USB2.0, VGA Port - 1, SATA Port - 4 x SATA, BIOS Type - 1 x 32 Mbit flash, BIOS Model - AMI EFI BIOS, BIOS Version - PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a, Supported Operating System - Windows 7 / 8 / 8.1 / XP, Form Factor - Micro ATX, Special Features - Q-Flash, Xpress Recovery2, EasyTune, Humidity Protection PCB design, Electrostatic Protection and Power Failure Protection design, Unique On/Off Charge delivers the best recharging capability to iPad, iPhone and iPod Touch, Supports 3rd generation PCI-Express interface, Enhanced Intel HD Graphics 2000/3000 integrated with the processor, Others - 1 x CPU fan header, 1 x system fan header, 1 x speaker header, 1 x chassis intrusion header, 1 x Clear CMOS jumper, 3 x audio jacks (Line In, Line Out, Mic In), Country of Origin - Taiwan, Made in/ Assemble - China, Warranty - 3 Years
